5602E-CH
BS GmbH 5602E-CH, Wall socket, lockable, indoor, IP21
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 5602E-CH |
| Product no.: | B-028-149652 |
| GTIN/EAN: | 0706332903711 |
From stock
2 products available
Product information
Description

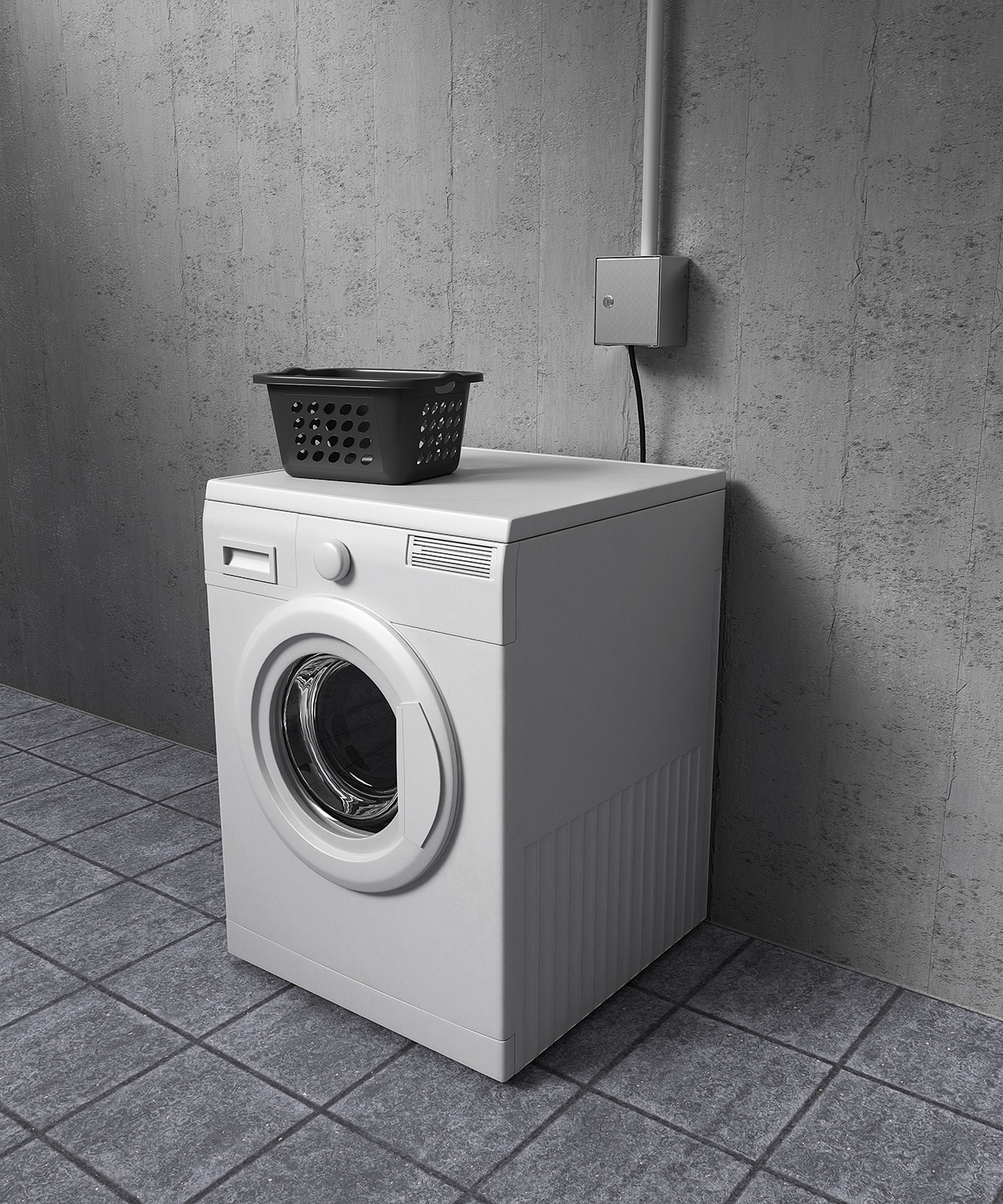

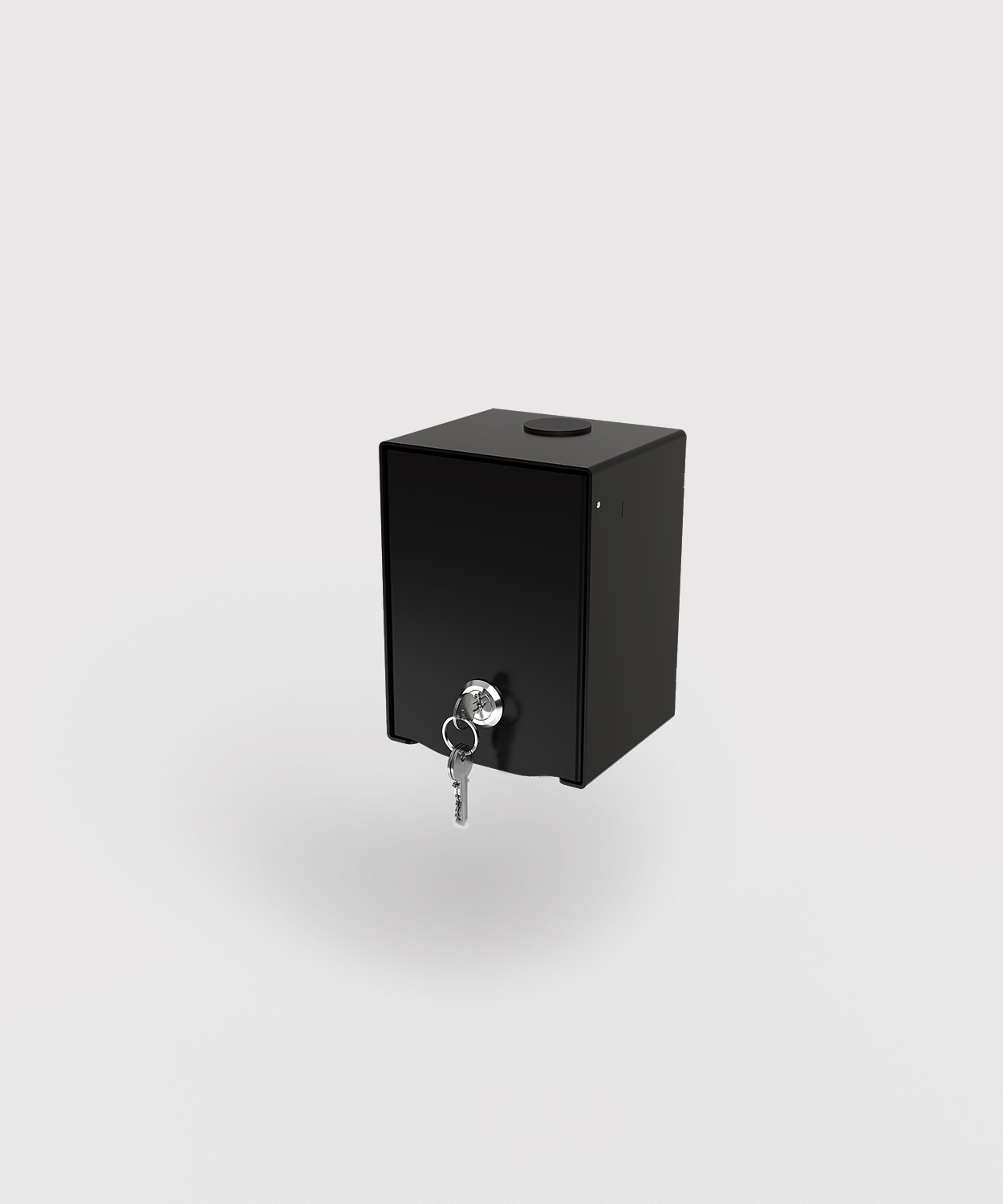

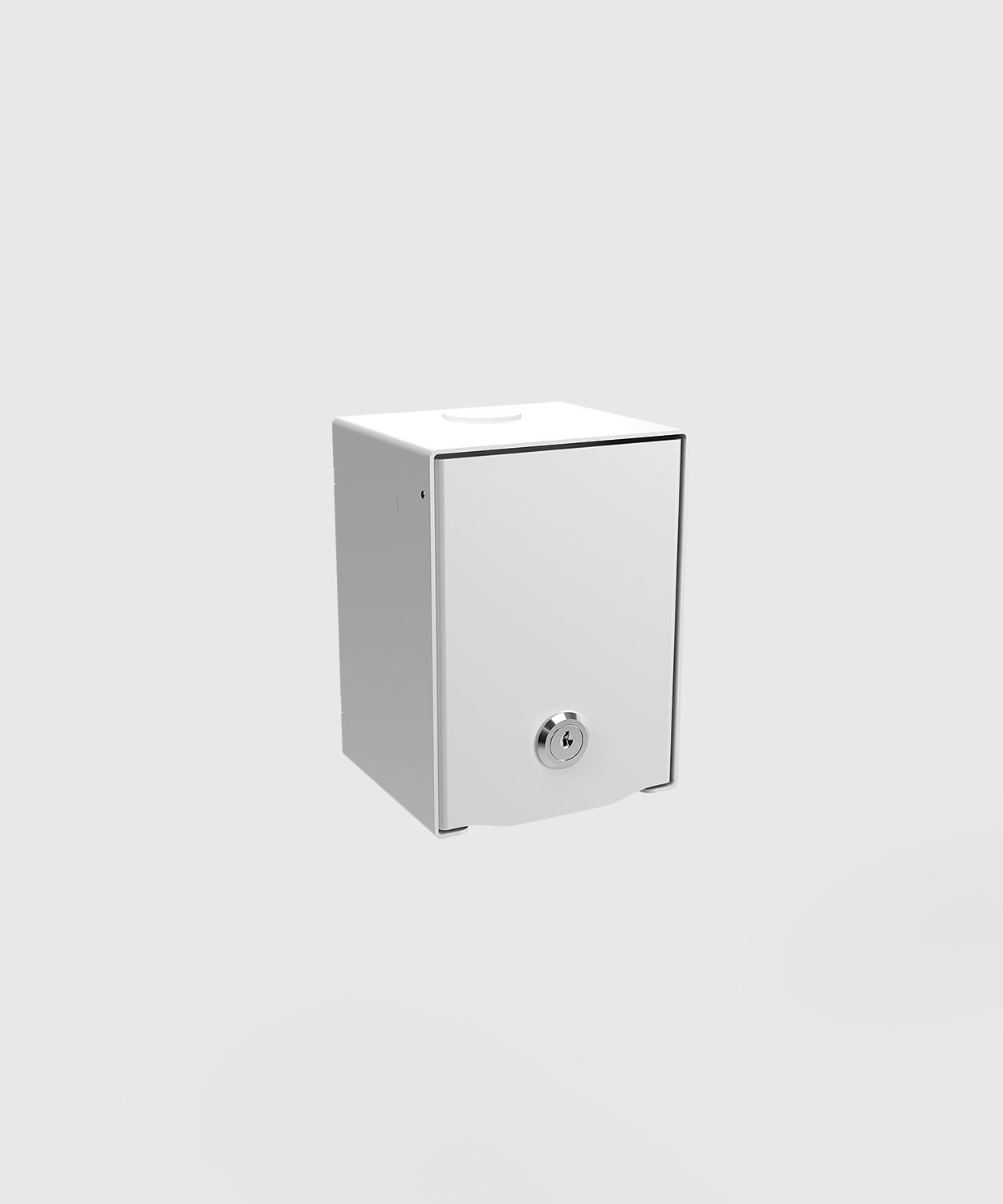

Wall-mounted socket 5602E with 2 slots, for standard plugs in straight or angled form. The complete housing is made of V2A stainless steel and the device carrier of aluminium. The cover can be locked with a rotary bolt lock cylinder (different locking) and also closes when plugged in. The surface-mounted wall socket 5602E is ideal for workrooms, cellars and washrooms. Other configurations on request!
Show more
Show less
Technical data
| Width: | 141 mm |
|---|---|
| Height: | 93 mm |
| Length: | 104 mm |
| Weight: | 1.4 kg |
| Color: | Black, Grey / DB 703, White |
| Country of origin: | Germany |
| Field of application: | Indoor |
| Height: | 93 mm |
| Height adjustable: | No |
| Load capacity: | not walkable |
| Material: | Aluminium, Stainless steel |
| Mounting options: | Wall mounting (surface mounted) |
| Number of connections: | 2 |
| Protection rating: | IP20 |
| Socket type: | Wall Distributor / Wall Socket |
| Type of installation: | Surface mounted |
| Version: | 2 x Type 13 |
