6523Q-CH
BS GmbH 6523Q-CH, CEE floor tank, indoor, IP65
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 6523Q-CH |
| Product no.: | B-028-149664 |
| GTIN/EAN: | 0706332903803 |
CHF 4,569.39
Available, Delivery time: 10 days
Product information
Description

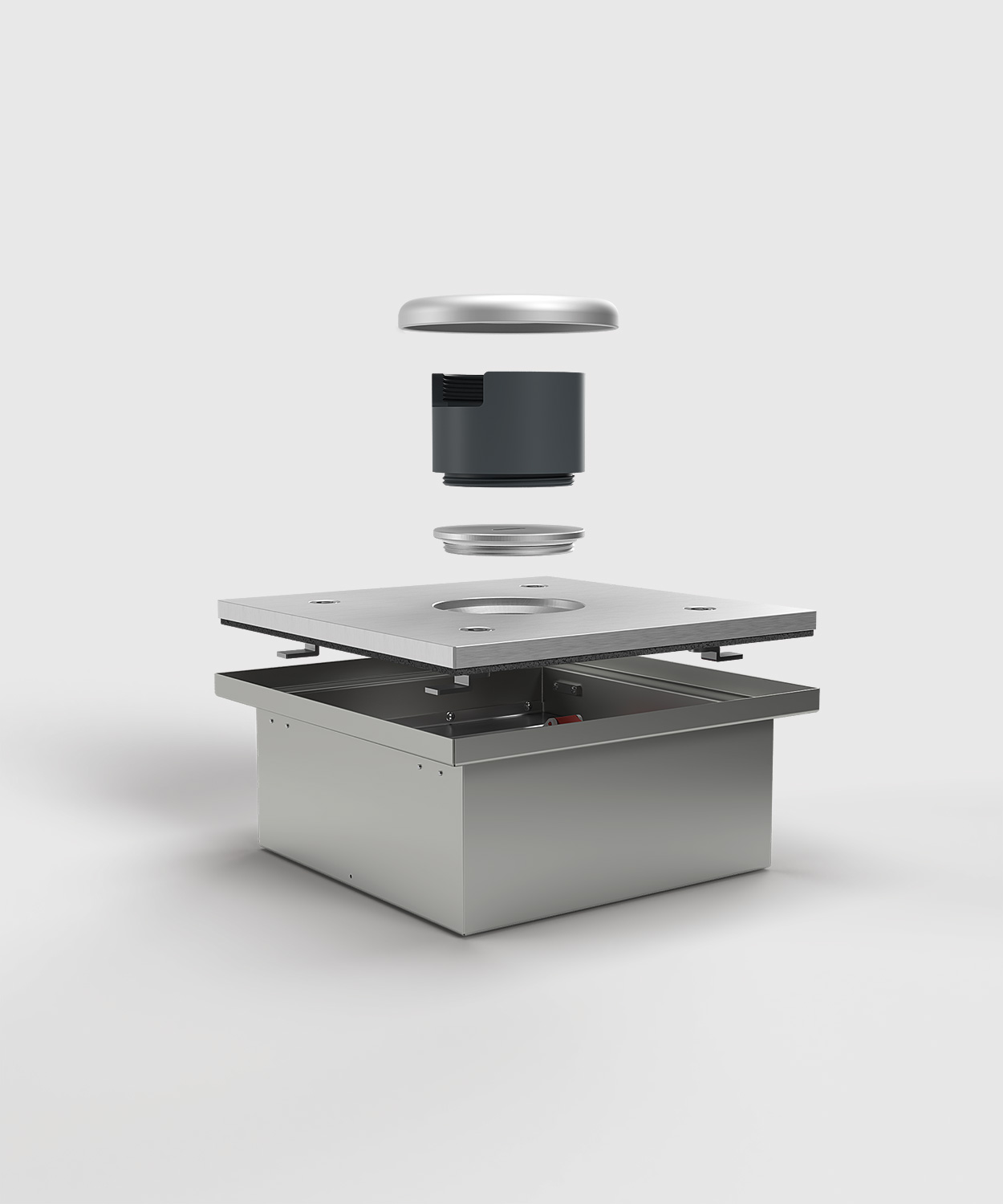

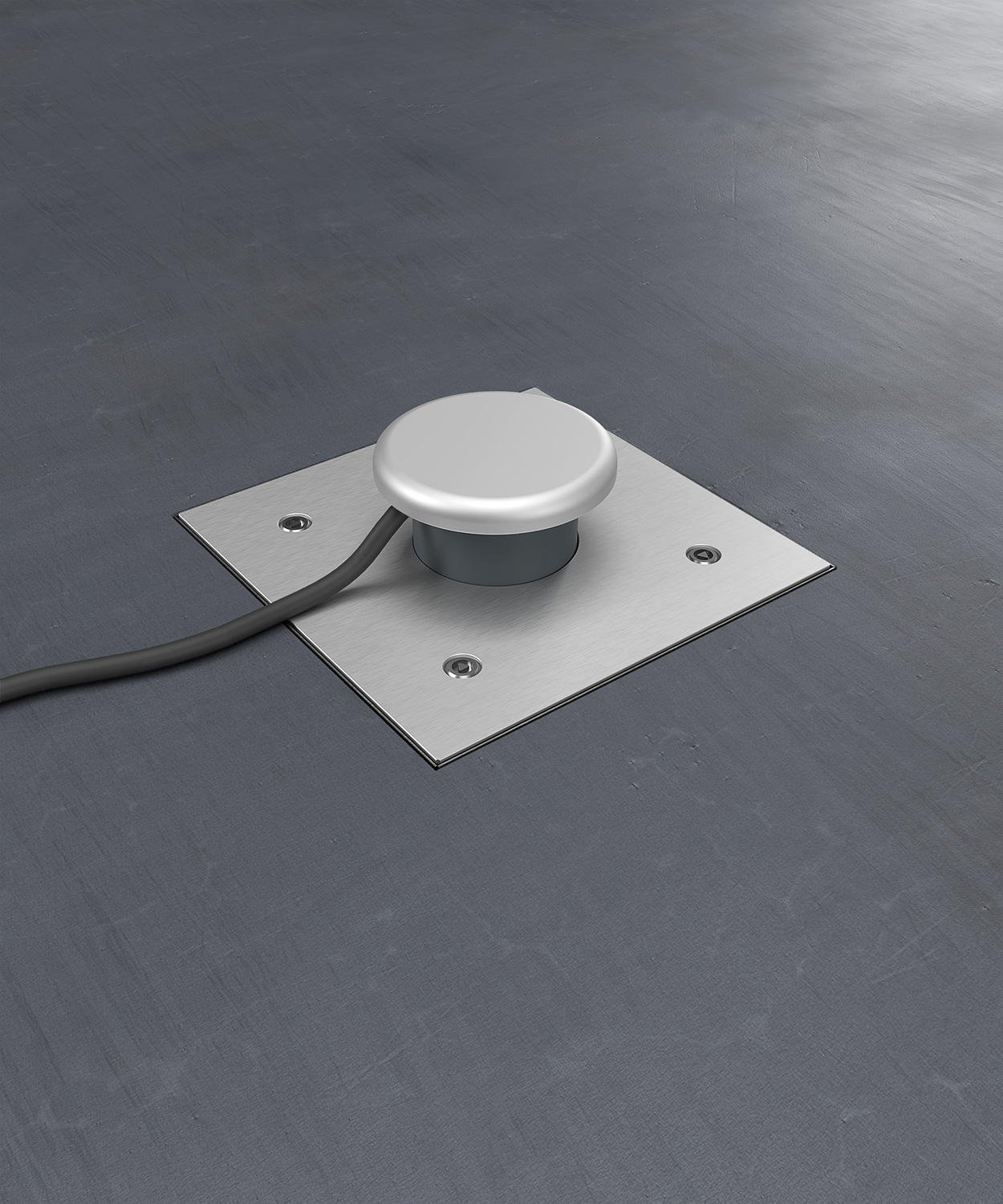

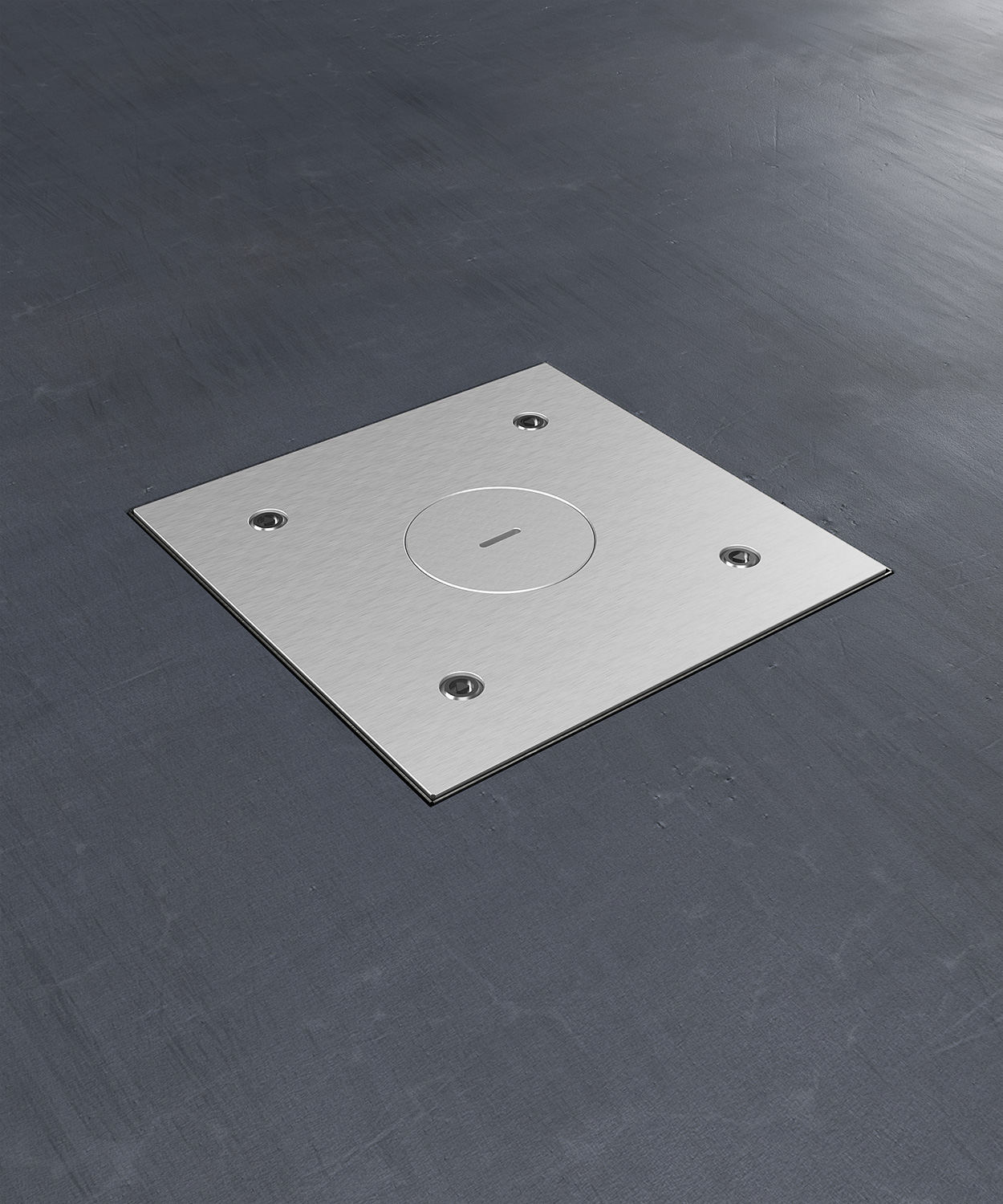

CEE floor tank 6523Q with a stainless steel housing. Installation can be carried out anywhere in the floor, as pipelines are used for the cable feed. The lid closes watertight, protection class IP 65, and has an internal tube for using the tank when the lid is closed. Protection class with tube: IP21. Further equipment variants on request.
Show more
Show less
Technical data
| Width: | 400 mm |
|---|---|
| Height: | 167 mm |
| Length: | 400 mm |
| Weight: | 17 kg |
| Color: | Gray |
| Country of origin: | Germany |
| Field of application: | Indoor |
| Height: | 167 mm |
| Height adjustable: | No |
| Load capacity: | Car passable |
| Material: | Aluminium, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 5 |
| Protection rating: | IP65 |
| Shape: | square |
| Socket type: | CEE Floor Tank |
| Type of installation: | Subfloor |
| Version: | 3 x Type 13, 1 x CEE 5, 16A, 400V, 1 x CEE 5, 32A, 400V |
