2003B
BS GmbH 2003B, floor tank, walk-in, IP54
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 2003B-CH |
| Product no.: | B-028-149571 |
| GTIN/EAN: | 0706332903360 |
Available, Delivery time: 10 days
Product information
Description

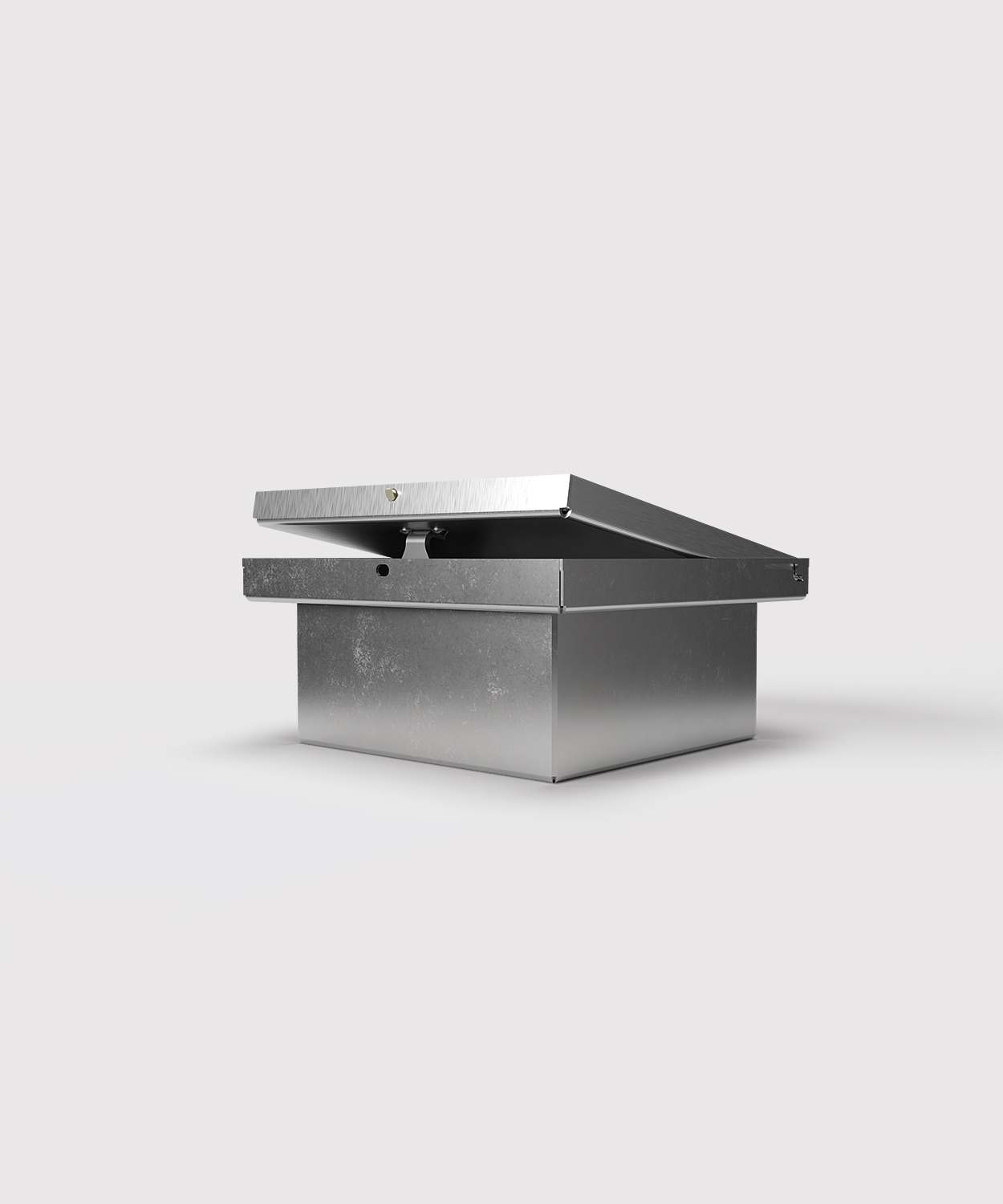

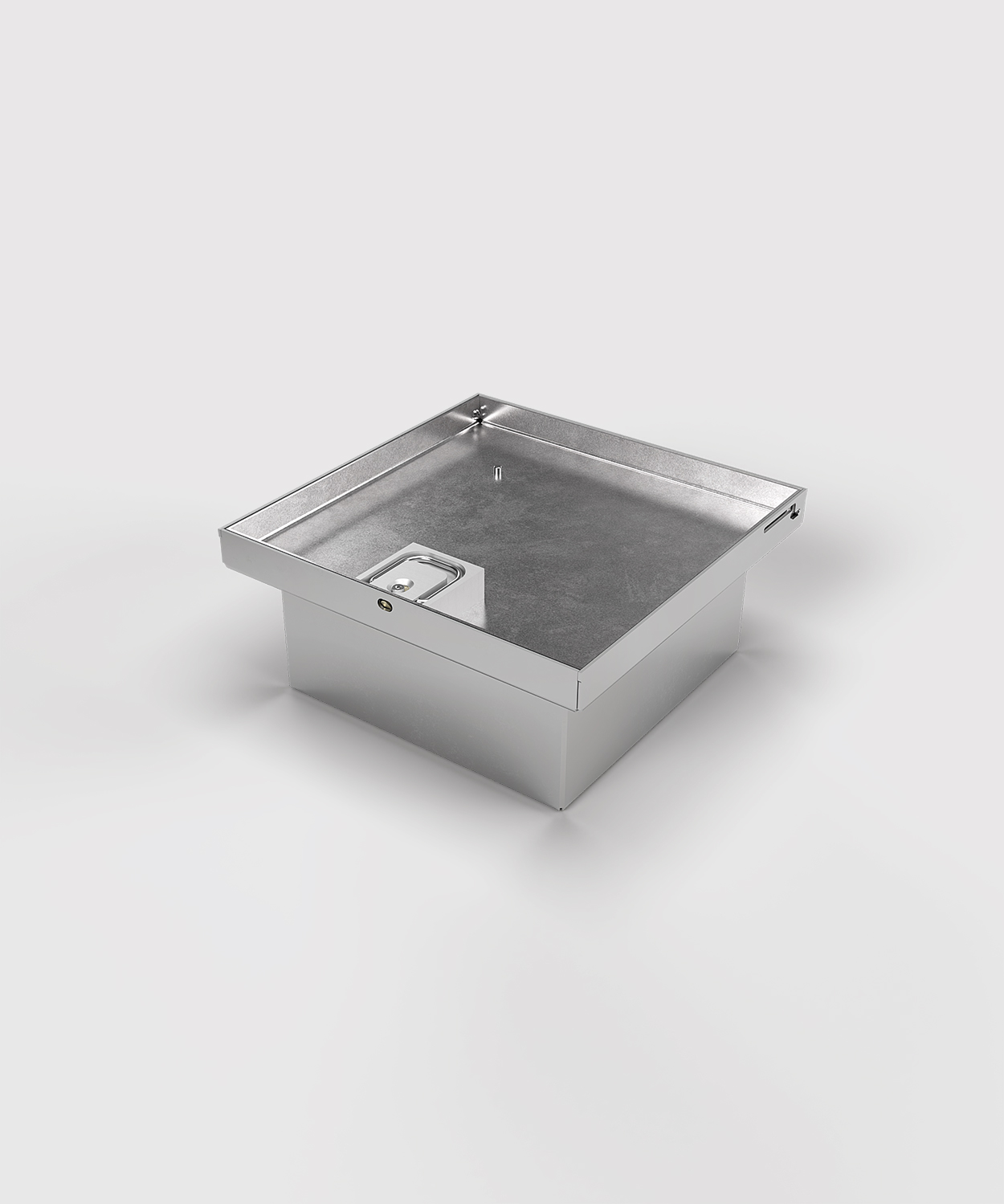

The complete floor tank 2003B is made of 1.5 mm thick V2A stainless steel. The hinged lid opens without tools and can be fitted with various floor coverings. When closed, the floor tank is watertight and thus suitable for cleaning with wet sweepers. The unit can contain up to 3 installation devices. The plug inserts have a VDE symbol. Other equipment variants are available on request.
Show more
Show less
Variants Properties
| Version: | 3 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 200 mm |
|---|---|
| Height: | 102 mm |
| Length: | 200 mm |
| Weight: | 3 kg |
| Color: | Stainless steel |
| Country of origin: | Germany |
| Field of application: | Indoor |
| Height: | 102 mm |
| Height adjustable: | No |
| Load capacity: | walkable |
| Material: | Aluminium, Stainless steel |
| Mounting options: | Panel Mount |
| Number of connections: | 3 |
| Protection rating: | IP54 |
| Shape: | square |
| Socket type: | Floor Box |
| Type of installation: | Subfloor |
