9902A
BS GmbH 9902A, Floor socket, walk-in, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 9902A-CH |
| Product no.: | B-028-149578 |
| GTIN/EAN: | 0706332905166 |
Available, Delivery time: 10 days
Product information
Description

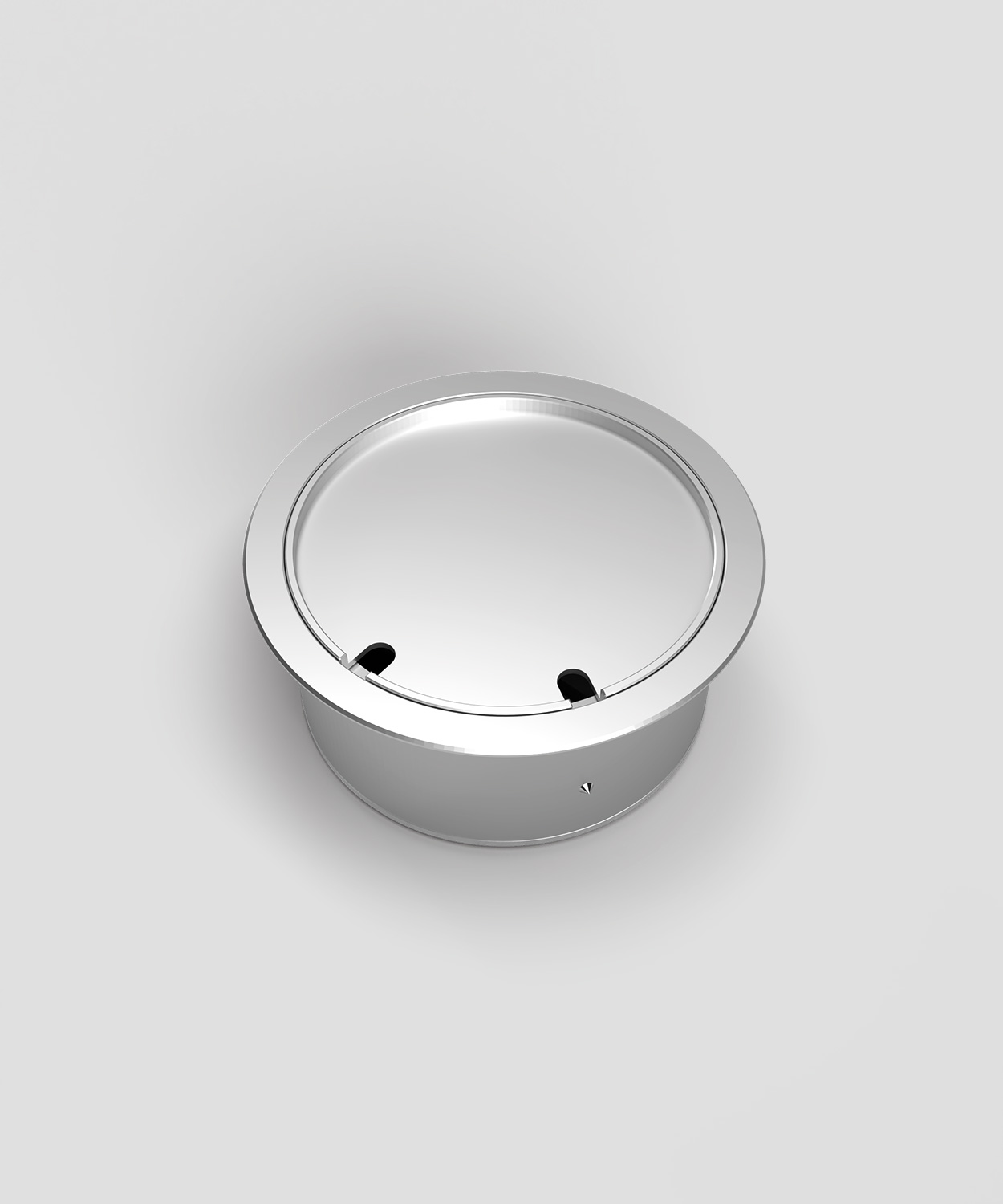

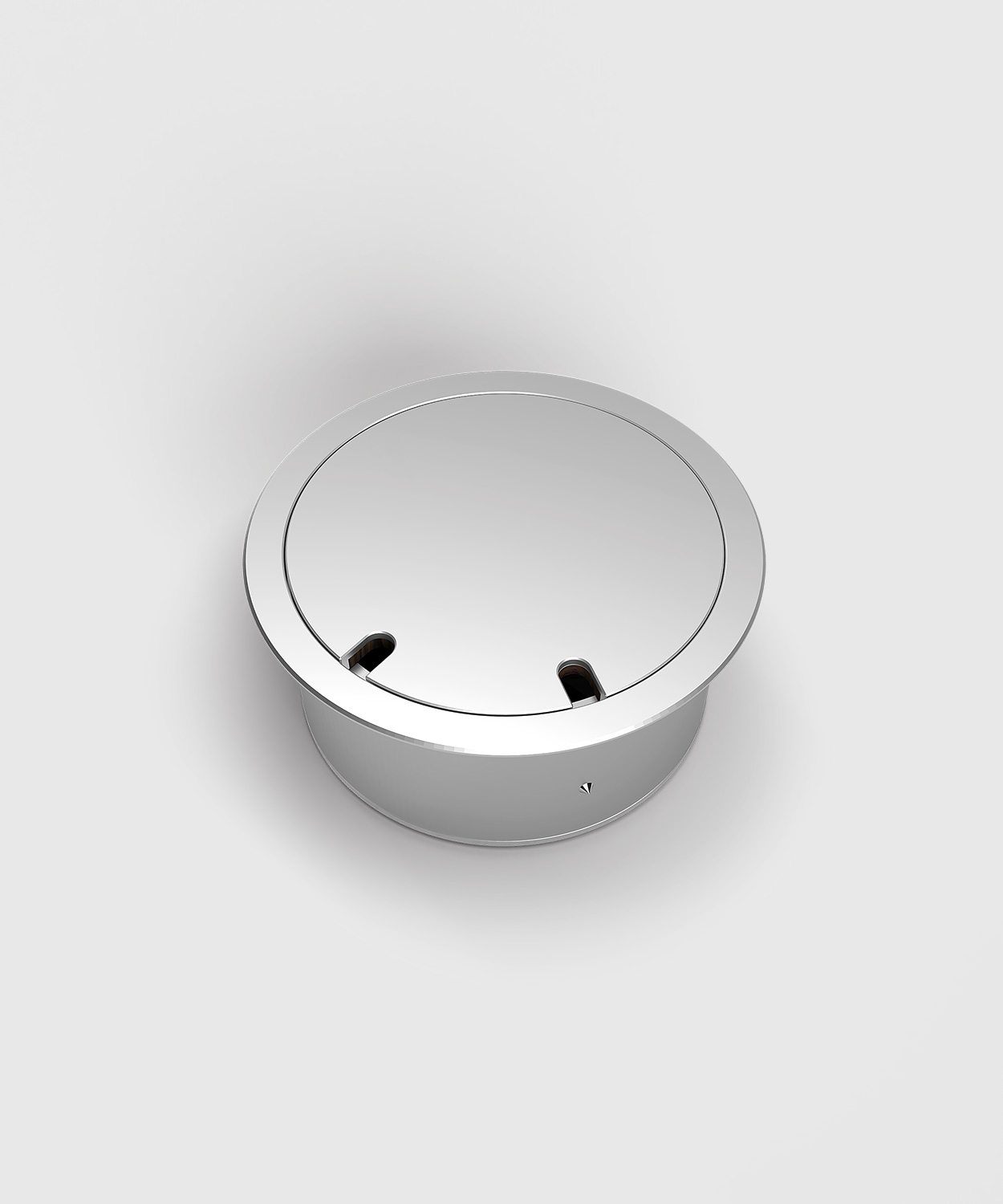

Floor socket 9902A made of solid aluminium with 2 slots. The reversible cover is anodised in natural aluminium and can be fitted with floor covering, e.g. carpet, parquet, laminate or linoleum etc. and also closes when the standard plug is inserted in straight or angled form. Further fitting variants on request.
Show more
Show less
Variants Properties
| Version: | 2 x Type 13 |
|---|
Show more
Show less
Technical data
| Height: | 74 mm |
|---|---|
| Weight: | 1.1 kg |
| Color: | Gray |
| Country of origin: | Germany |
| Diameter: | 170 mm |
| Field of application: | Indoor |
| Height: | 74 mm |
| Height adjustable: | No |
| Load capacity: | walkable |
| Material: | Aluminium |
| Mounting options: | flush-mounting |
| Number of connections: | 2 |
| Protection rating: | IP20 |
| Shape: | round |
| Socket type: | Floor socket |
| Type of installation: | Subfloor |
| Version: | 1 x Type 13, 1 x Antenna, 1 x Type 13, 1 x RJ45, 2-fold, 2 x Type 13 |
