8502B
BS GmbH 8502B, hollow-bottom tank, indoor, walk-in, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8502B-CH |
| Product no.: | B-028-149729 |
| GTIN/EAN: | 4058796002971 |
Available, Delivery time: 10 days
Product information
Description

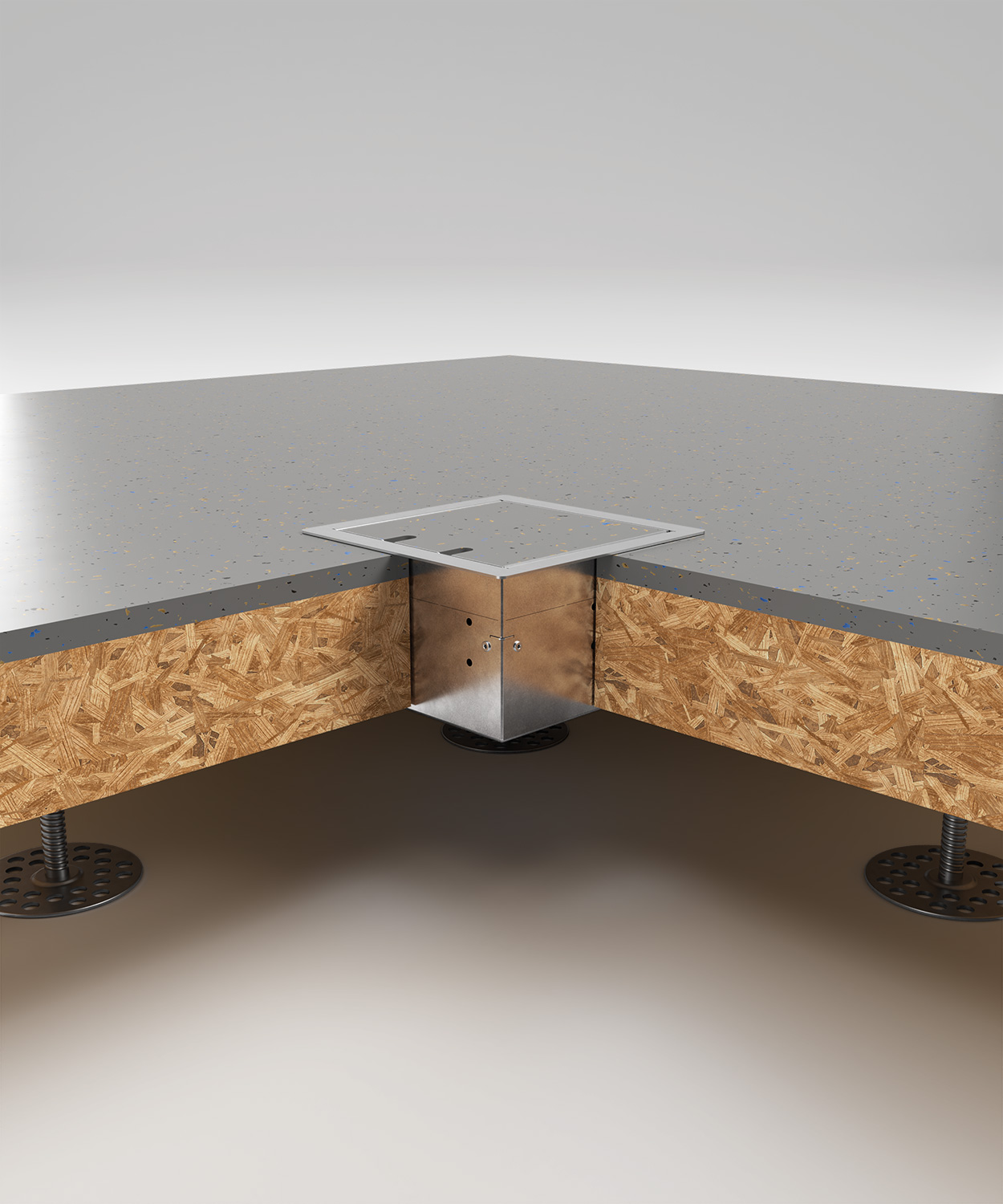

Hollow bottom tank 8502B with 2 slots. The receptacle box is made of sendzimir galvanised sheet steel. Frame and lid are made of stainless steel. The lid has a cable outlet and closes even when standard plugs are plugged in straight or angled. The removable lid can be fitted with 15 mm stone, wood, etc. Other fitting variants are available on request.
Show more
Show less
Variants Properties
| Version: | 2 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 180 mm |
|---|---|
| Height: | 103 mm |
| Length: | 180 mm |
| Weight: | 1.4 kg |
| Color: | Stainless steel |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor |
| Height: | 103 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Sheet steel, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 2 |
| Protection rating: | IP20 |
| Shape: | square |
| Socket type: | Raised Access Floor Box |
| Type of installation: | Subfloor |
