8502E
BS GmbH 8502E, hollow-bottom tank, indoor, walk-in, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8502E-CH |
| Product no.: | B-028-149732 |
| GTIN/EAN: | 0706332904138 |
Available, Delivery time: 10 days
Product information
Description

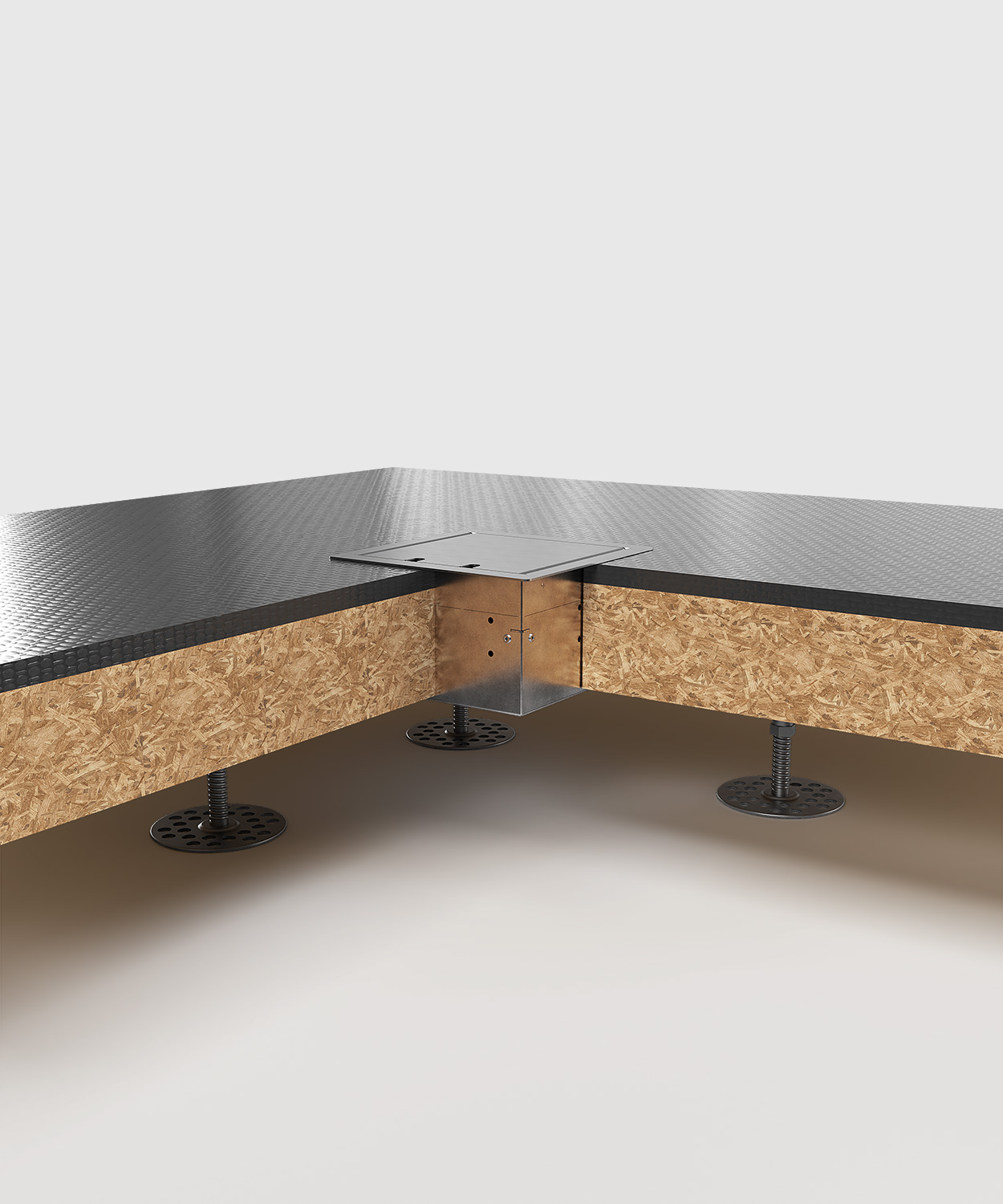

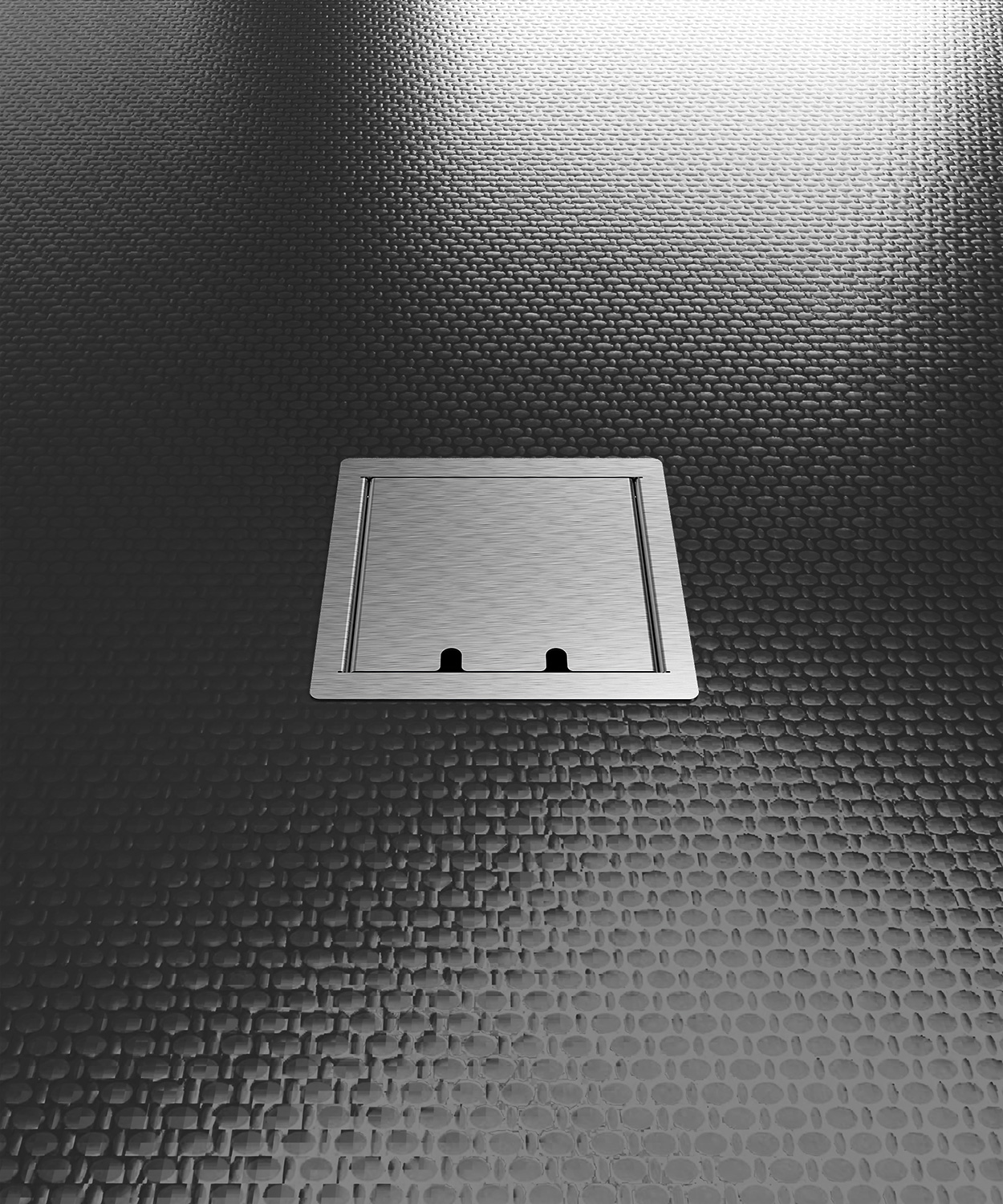

Hollow bottom tank 8502E made of ground stainless steel, 1.5 mm with hinged lid and 2 slots. The receptacle box is made of sendzimir-galvanised sheet steel. The frame and the lid are made of stainless steel. The lid also closes when standard plugs are inserted in straight or angled form. Other fitting variants are available on request.
Show more
Show less
Variants Properties
| Version: | 2 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 180 mm |
|---|---|
| Height: | 103 mm |
| Length: | 180 mm |
| Weight: | 1.4 kg |
| Color: | Stainless steel |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor |
| Height: | 103 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Sheet steel, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 2 |
| Protection rating: | IP20 |
| Shape: | square |
| Socket type: | Raised Access Floor Box |
| Type of installation: | Subfloor |
