8512B
BS GmbH 8512B, hollow-bottom tank, indoor, walk-in, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8512B-CH |
| Product no.: | B-028-149755 |
| GTIN/EAN: | 0706332904282 |
Available, Delivery time: 10 days
Product information
Description

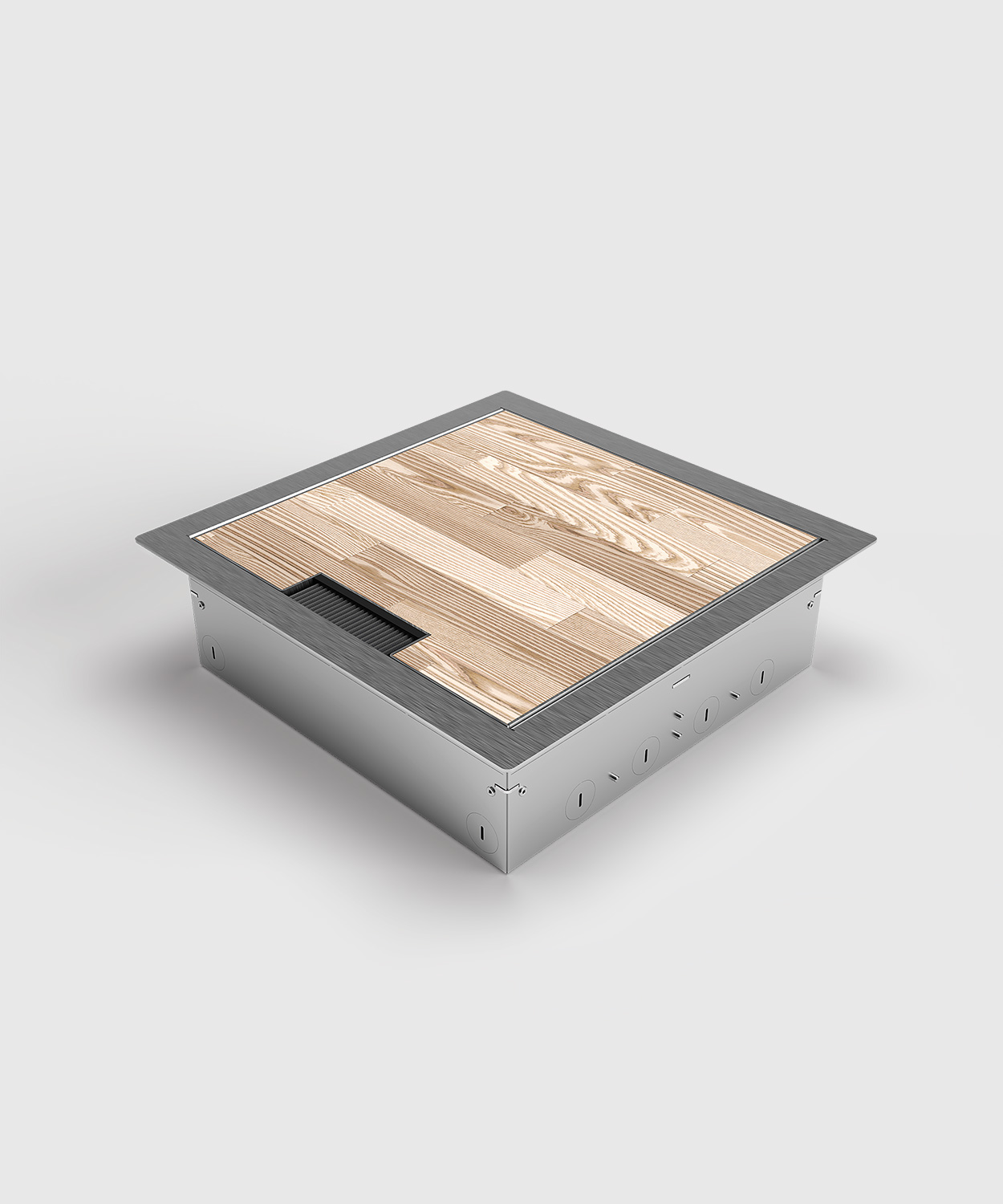

Hollow bottom tank 8512B, 12-fold equipped. The receptacle box is made of sendzimir-galvanised sheet steel and the equipment support is made of aluminium. The frame (2 mm) and the lid (1.5 mm) are made of stainless steel (1.4301). The cover closes even when standard plugs are inserted in straight or angled form. Various floor coverings (15 mm high) can be inserted into the removable lid. Other fitting variants are available on request.
Show more
Show less
Variants Properties
| Version: | 12 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 350 mm |
|---|---|
| Height: | 107 mm |
| Length: | 350 mm |
| Weight: | 3.7 kg |
| Color: | Stainless steel |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor |
| Height: | 107 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Sheet steel, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 12 |
| Protection rating: | IP20 |
| Shape: | square |
| Socket type: | Raised Access Floor Box |
| Type of installation: | Subfloor |
