8808A
BS GmbH 8808A, Floor tank, indoor, walk-in, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8808A-CH |
| Product no.: | B-028-149789 |
| GTIN/EAN: | 0706332904633 |
Available, Delivery time: 10 days
Product information
Description

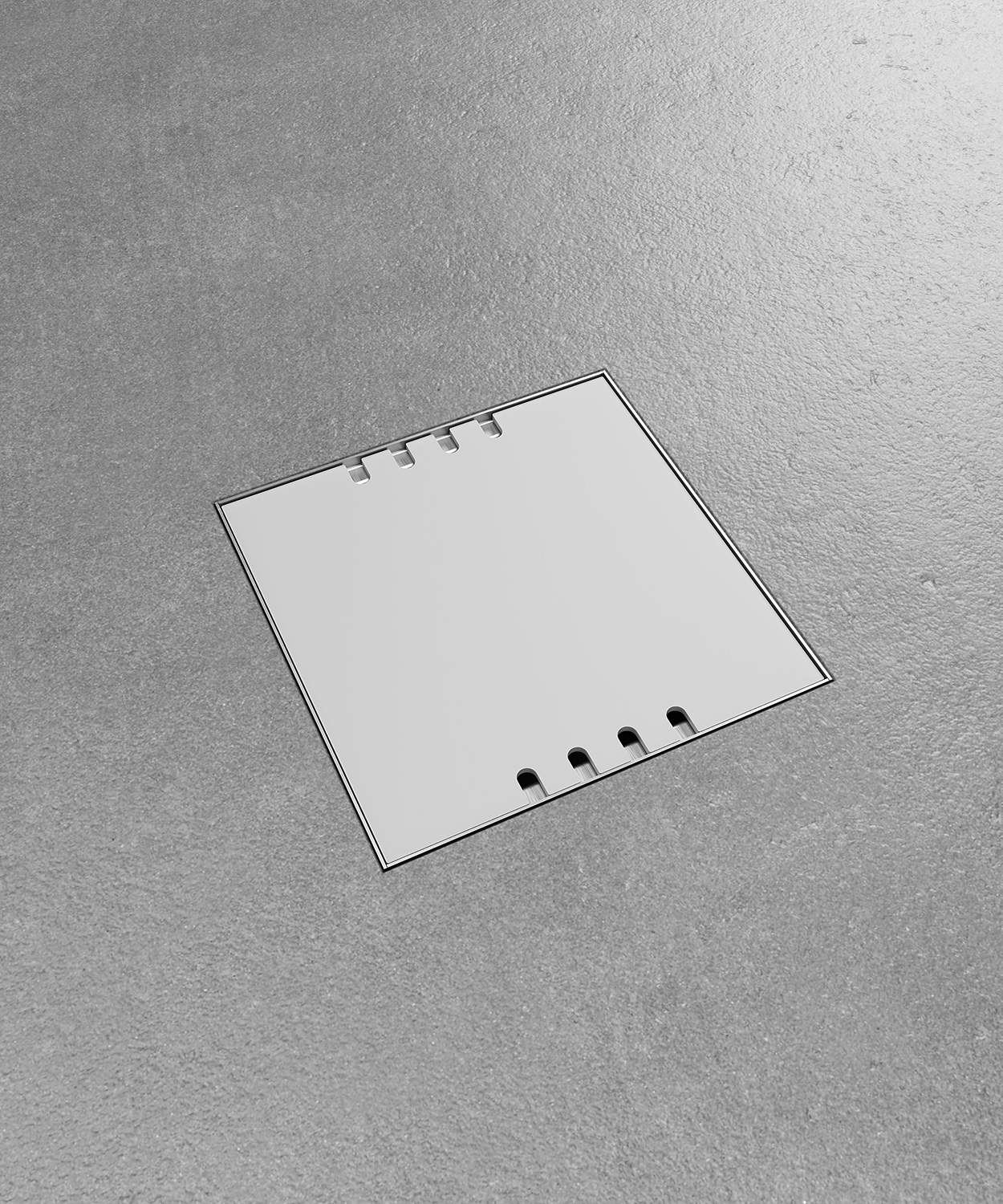

Floor tank 8808A with a square housing made of stainless steel and lid in natural anodised aluminium. Inside there are two aluminium unit supports for 4 units each, alternatively other combinations are possible. Installation can be carried out at any point in the floor, as piping is used for the cable feed. The cover closes even when the plugs are plugged in. Due to its low installation height, this version is particularly suitable for floors in old buildings. Other assembly variants are available on request.
Show more
Show less
Variants Properties
| Version: | 8 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 240 mm |
|---|---|
| Height: | 62 mm |
| Length: | 240 mm |
| Weight: | 2.6 kg |
| Color: | Gray |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor |
| Height: | 62 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 8 |
| Protection rating: | IP20 |
| Shape: | square |
| Socket type: | Floor Box |
| Type of installation: | Subfloor |
