8810B
BS GmbH 8810B, floor tank, indoor, walk-in, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8810B-CH |
| Product no.: | B-028-149797 |
| GTIN/EAN: | 0706332904718 |
Available, Delivery time: 10 days
Product information
Description

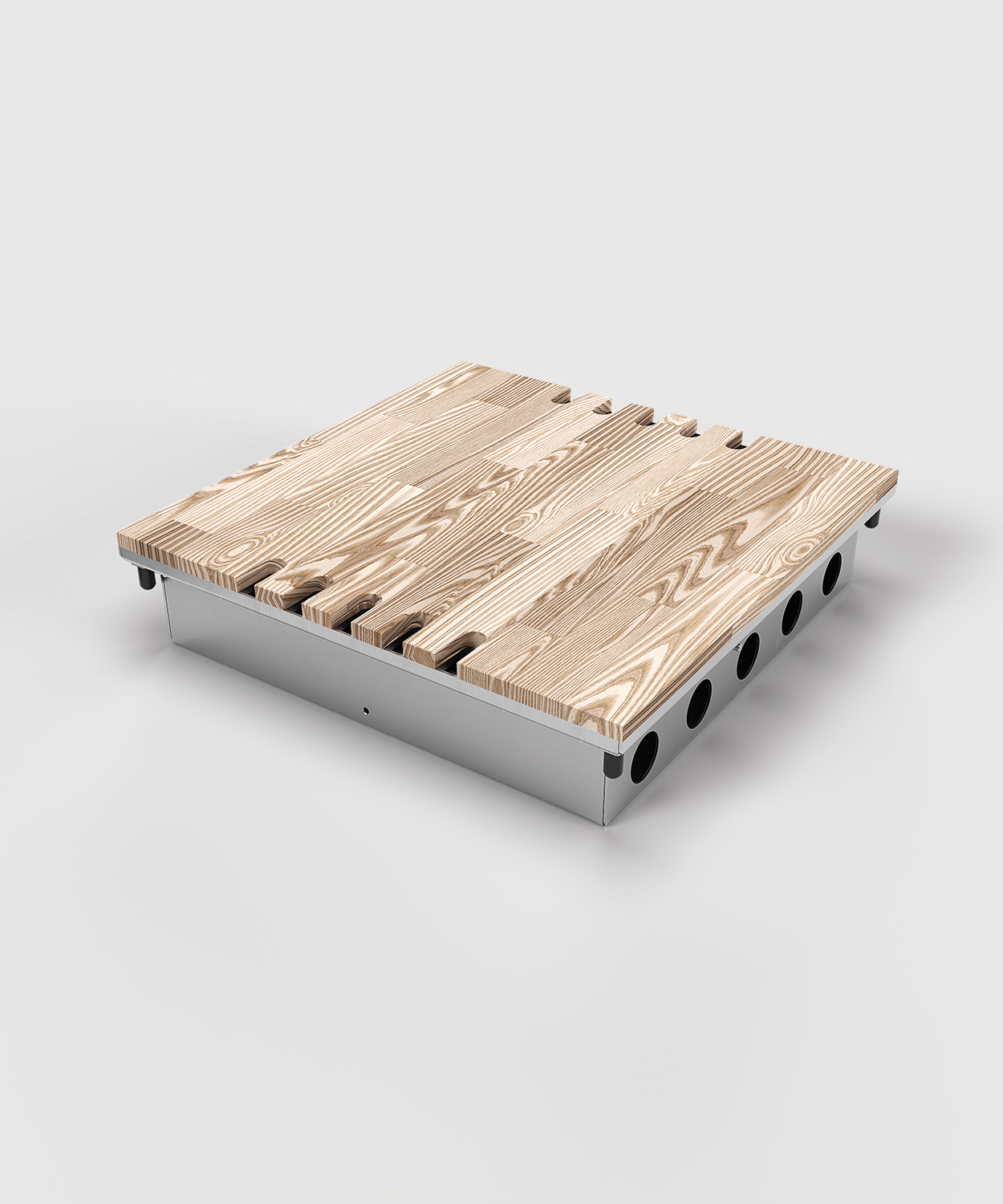

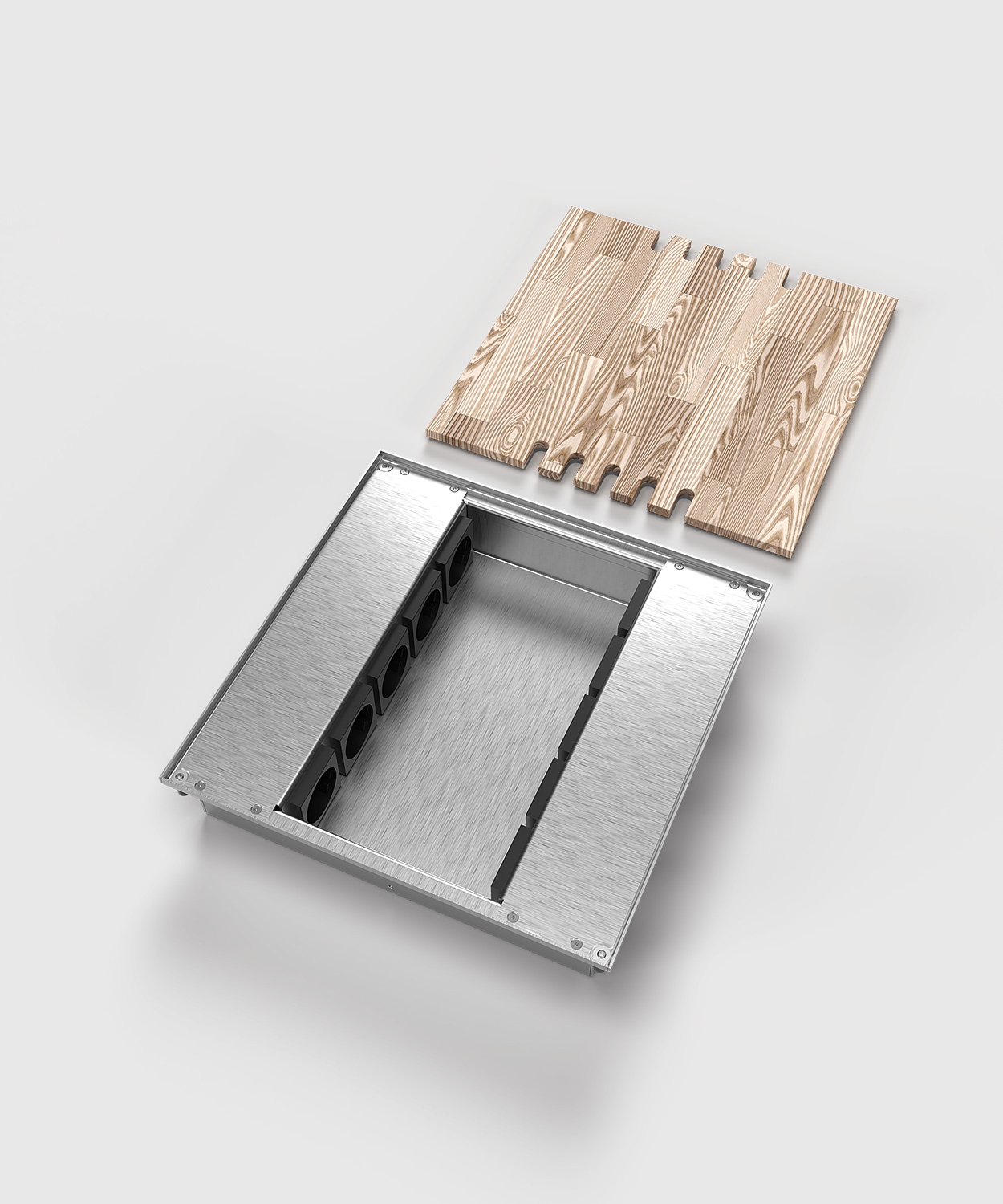

Floor tank 8810B made of polished stainless steel. Inside there are two aluminium unit supports for 5 units each. The installation can be carried out at any point in the floor, as pipes are used for the cable feed. Due to its low height, this version is particularly suitable for floors in old buildings. The rimless cover has cable outlets and closes even when plugs are plugged in. In addition, the cover is designed to be glued with floor coverings. Other fitting variants are available on request.
Show more
Show less
Variants Properties
| Version: | 10 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 300 mm |
|---|---|
| Height: | 62 mm |
| Length: | 300 mm |
| Weight: | 3.2 kg |
| Color: | Gray |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor |
| Height: | 62 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 10 |
| Protection rating: | IP20 |
| Shape: | square |
| Socket type: | Floor Box |
| Type of installation: | Subfloor |
