8901B
BS GmbH 8901B, 1-fold, adjustable, belegbar, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8901B-CH |
| Product no.: | B-028-149800 |
| GTIN/EAN: | 0706332904749 |
Available, Delivery time: 10 days
Product information
Description

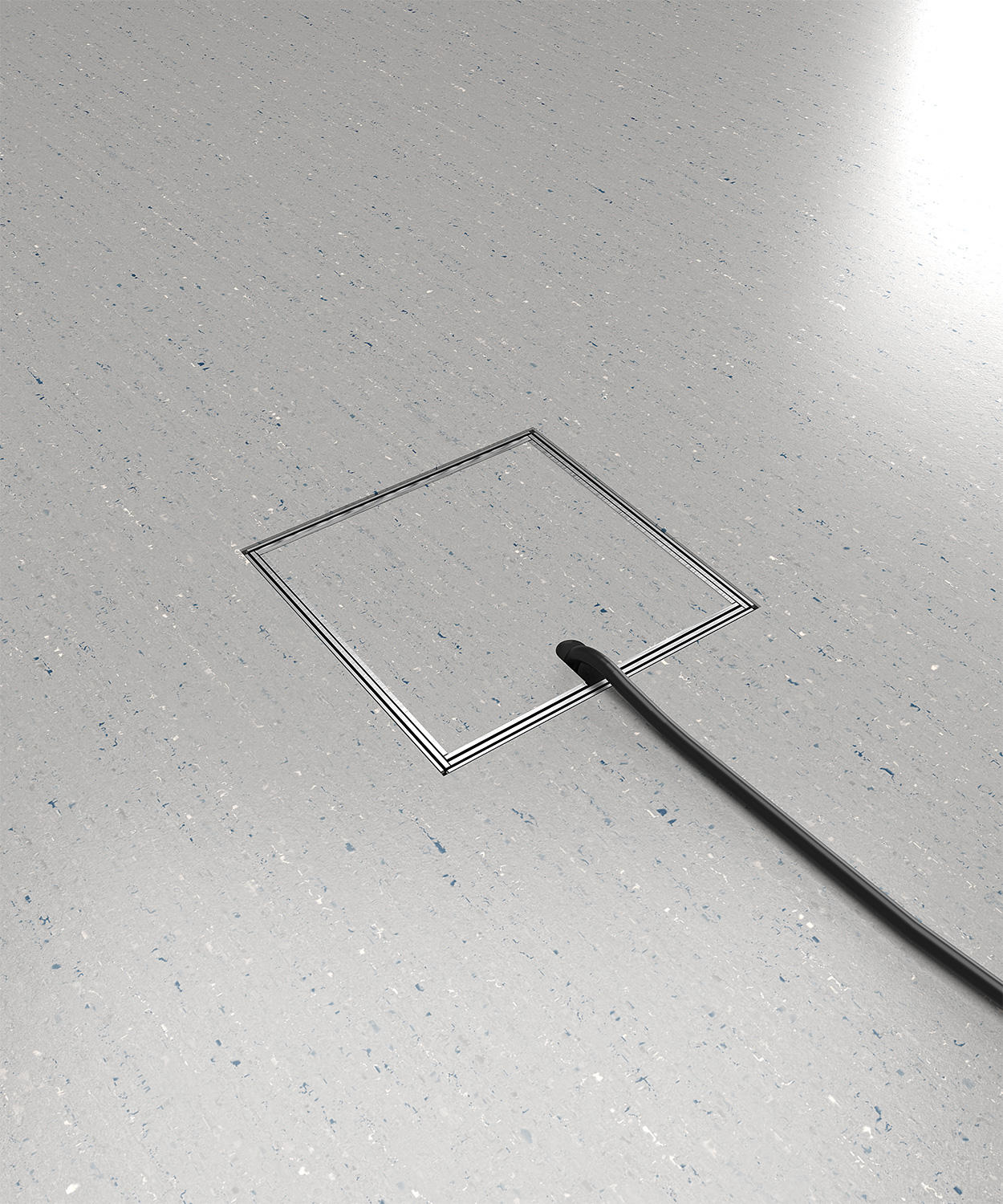

Height-adjustable floor socket 8901B with one slot. The housing, frame and cover are made of stainless steel. The cover closes even when standard plugs are plugged in straight or angled. Floor coverings such as carpet, parquet, laminate etc. with a thickness of 15 mm can be inserted into the removable hinged lid. Other fitting variants on request.
Show more
Show less
Variants Properties
| Version: | 1 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 126 mm |
|---|---|
| Height: | 103 mm |
| Length: | 125 mm |
| Weight: | 1.2 kg |
| Color: | Gray |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor, Outdoor |
| Height: | 103 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Stainless steel |
| Mounting options: | Indoor, flush-mounting |
| Number of connections: | 1 |
| Protection rating: | IP20 |
| Shape: | square |
| Socket type: | Floor Box |
| Type of installation: | Floor mounting |
| Version: | 1 x Antenne, 1 x RJ45, 2 fold, 1 x Type 13 |
