8904H
BS GmbH 8904H, hollow-bottom tank, indoor, walk-in, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8904H-CH |
| Product no.: | B-028-149822 |
| GTIN/EAN: | 0706332904954 |
Available, Delivery time: 10 days
Product information
Description

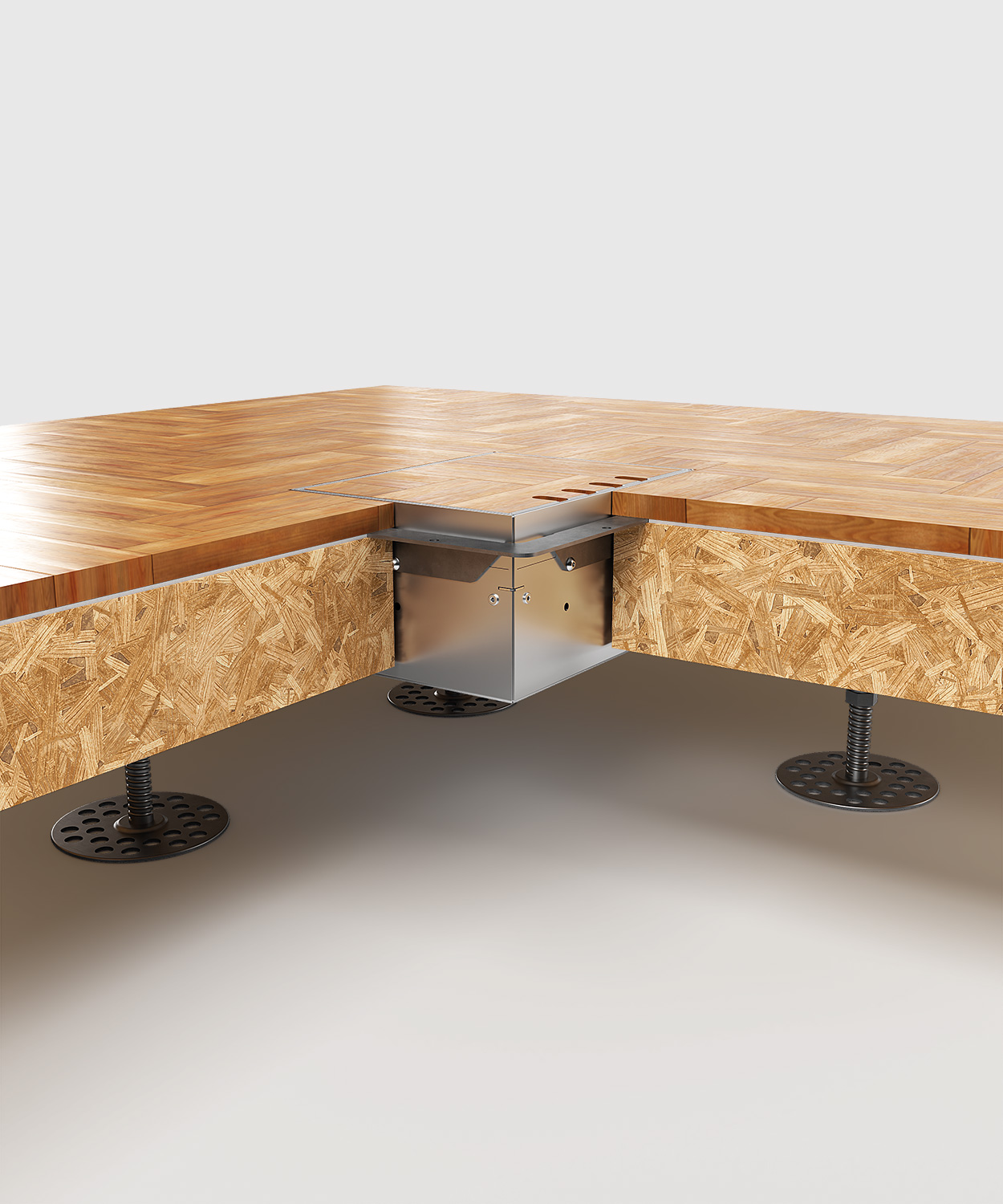

Height-adjustable hollow bottom tank 8904H, 4-fold equipped. The receptacle box is made of sendzimir-galvanised sheet steel. Frame and lid made of stainless steel. Lid closes even with standard plugs inserted in straight or angled form. The removable hinged lid can be covered with 15 mm stone, wood, etc. The substructure frame makes this floor socket ideal for hollow floors! Further equipment variants on request.
Show more
Show less
Variants Properties
| Version: | 4 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 500 mm |
|---|---|
| Height: | 90 mm |
| Length: | 250 mm |
| Weight: | 2.2 kg |
| Color: | Stainless steel |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor |
| Height: | 90 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Sheet steel, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 4 |
| Protection rating: | IP20 |
| Shape: | rectangular |
| Socket type: | Raised Access Floor Box |
| Type of installation: | Subfloor |
