8908BB
BS GmbH 8908BB, Floor tank, indoor, walk-in, IP20
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8908BB-CH |
| Product no.: | B-028-149832 |
| GTIN/EAN: | 0706332905050 |
Available, Delivery time: 10 days
Product information
Description

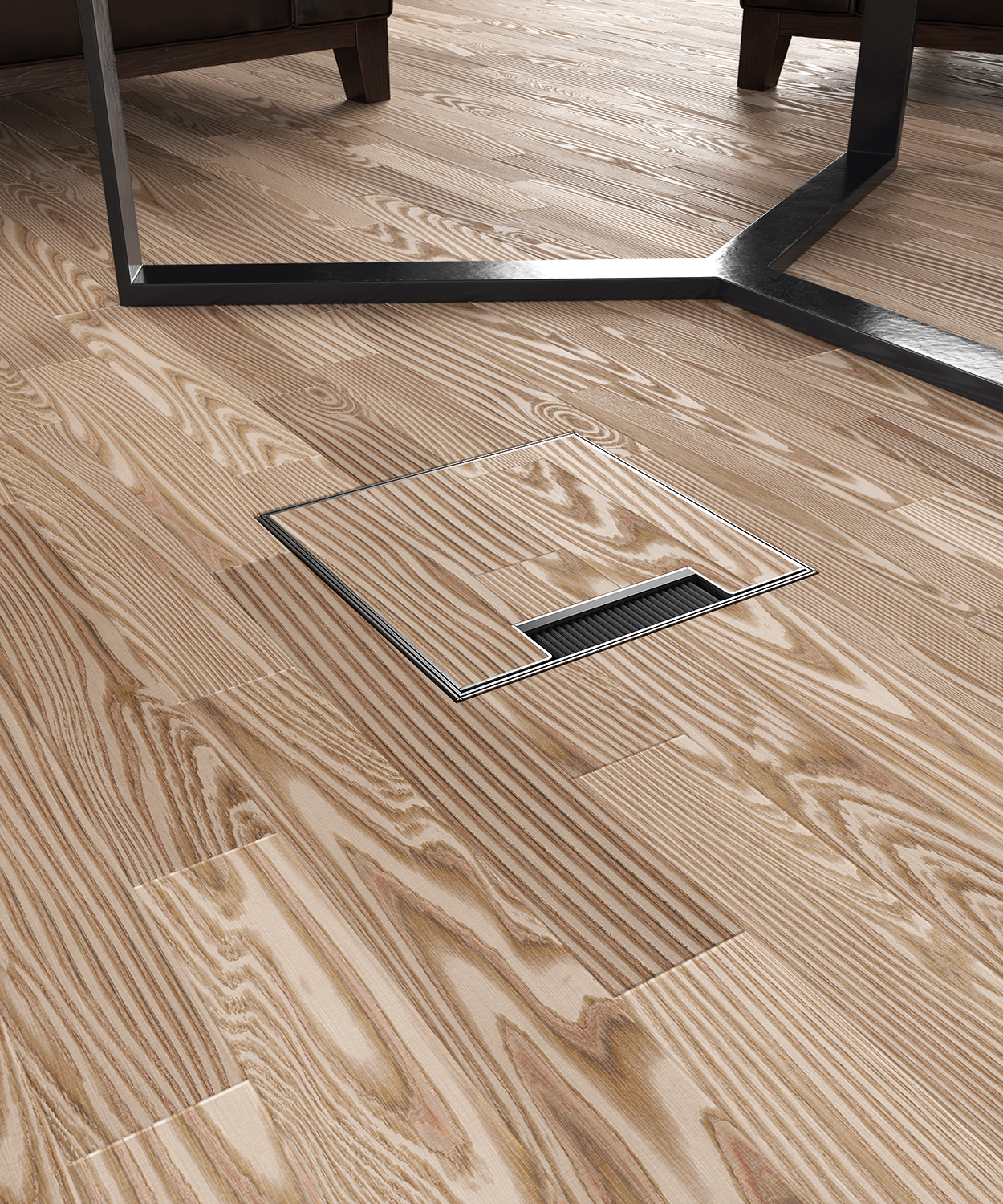

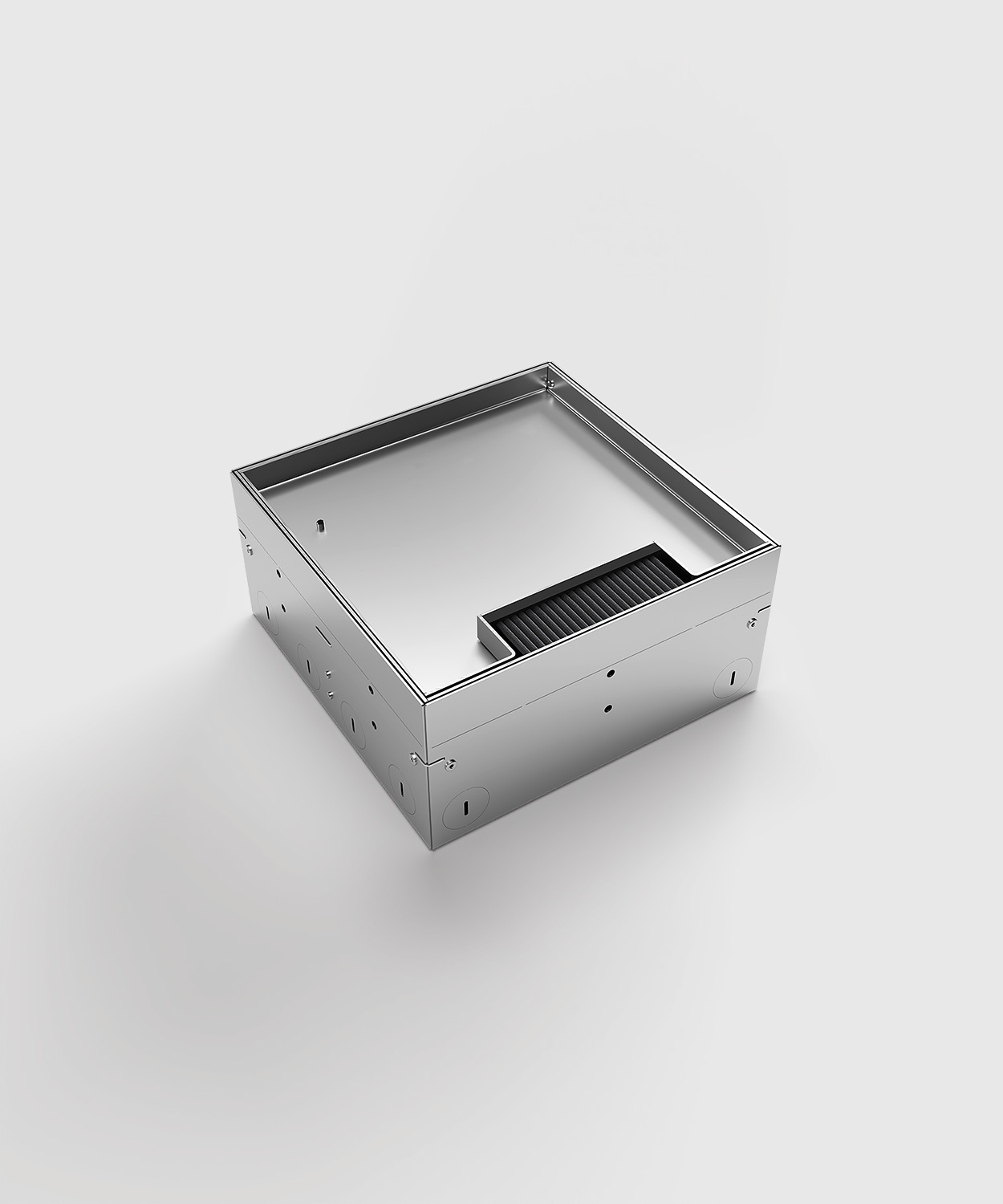

Height-adjustable floor tank 8908B with 8 slots. The receptacle box is made of sendzimir-galvanised sheet steel, the frame and the lid of stainless steel. Floor coverings such as carpet, parquet, laminate etc. with a thickness of 15 mm can be inserted into the removable hinged lid. The cover closes even when standard plugs are inserted in straight or angled form. The cable outlet is protected from coarse dirt by plastic brushes. Further assembly variants on request.
Show more
Show less
Variants Properties
| Version: | 8 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 90 mm |
|---|---|
| Height: | 205 mm |
| Length: | 205 mm |
| Weight: | 2.8 kg |
| Color: | Stainless steel |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor |
| Height: | 205 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Sheet steel, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 8 |
| Protection rating: | IP20 |
| Shape: | rectangular |
| Socket type: | Floor Box |
| Type of installation: | Subfloor |
