8912B
BS GmbH 8912B, floor tank, indoor, walk-in, IP10
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 8912B-CH |
| Product no.: | B-028-149838 |
| GTIN/EAN: | 0706332905111 |
Available, Delivery time: 10 days
Product information
Description

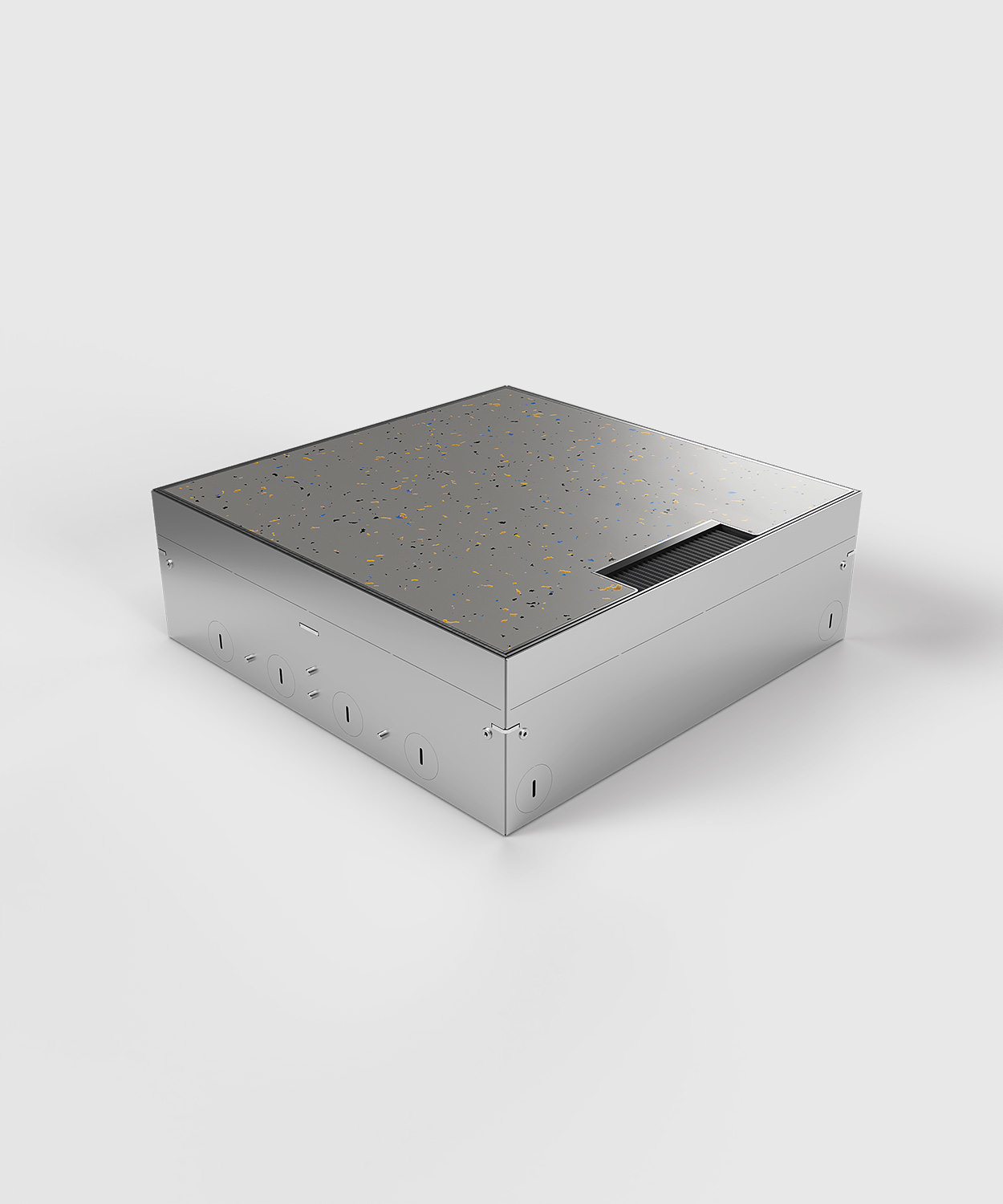

Height-adjustable floor tank 8912B with 12 slots. The receptacle box, frame and lid are made of stainless steel. Floor coverings such as carpet, parquet, laminate etc. with a thickness of 15 mm can be inserted into the removable lid. The lid has a cable outlet and closes even when standard plugs are inserted in straight or angled form. Other fitting variants are available on request.
Show more
Show less
Variants Properties
| Version: | 12 x Type 13 |
|---|
Show more
Show less
Technical data
| Width: | 90 mm |
|---|---|
| Height: | 305 mm |
| Length: | 309 mm |
| Weight: | 8.2 kg |
| Color: | Stainless steel |
| Country of origin: | Germany |
| Field of application: | Dry to moist maintained, Indoor |
| Height: | 305 mm |
| Height adjustable: | Yes |
| Load capacity: | walkable |
| Material: | Aluminium, Stainless steel |
| Mounting options: | flush-mounting |
| Number of connections: | 12 |
| Shape: | square |
| Socket type: | Floor Box |
| Type of installation: | Subfloor |
