Homematic Wall Switch – 6-way, 230 V
Homematic IP wall push-button 6-gang 230 V, HmIP-WRC6-230-A, wireless
| Manufacturer: | Homematic IP |
|---|---|
| Product no.: | B-031-157588 |
Available, Delivery time: 10 days
Produktinformationen
Description
The Homematic IP wall push-button 6-gang 230 V HmIP-WRC6-230-A is a mains-powered wireless switch for smart home control. Six buttons enable control of lighting, shutters or system modes. Multicolor LEDs indicate system status. Integration into 55 mm switch ranges, 868 MHz radio frequency, range up to 120 m.
Show more
Show less
Variants Properties
| Color: | Anthrazit |
|---|
Technical data
| Weight: | 0.11 kg |
|---|---|
| Color: | Anthrazit, White |
| Country of Origin: | China |
Show more
Show less
Downloads
More information
The Homematic IP wall push-button 6-gang 230 V HmIP-WRC6-230-A is a mains-powered wireless wall switch for controlling devices and functions in a smart home system.
Six buttons allow triggering of various functions, such as:
- Switching lighting on and off
- Controlling shutters
- Activating and deactivating system modes
Status indication and operation:

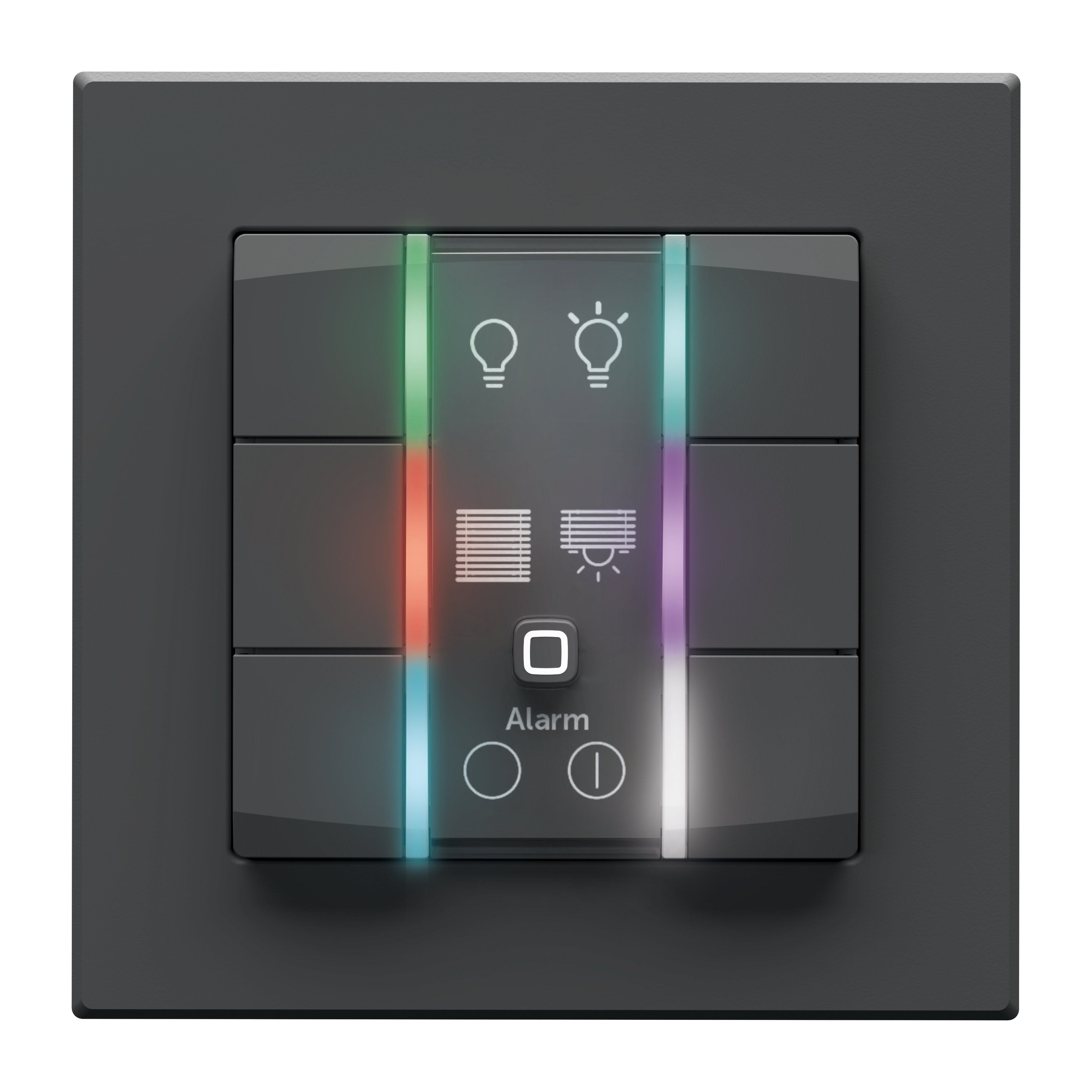

- Six buttons with integrated multicolor LEDs
- Status indication via different colours and signals
- Replaceable labelling field for custom assignment
Installation and integration:
- Installation in flush-mounted boxes according to DIN 49073-1
- Integration into existing switch ranges (55 mm format)

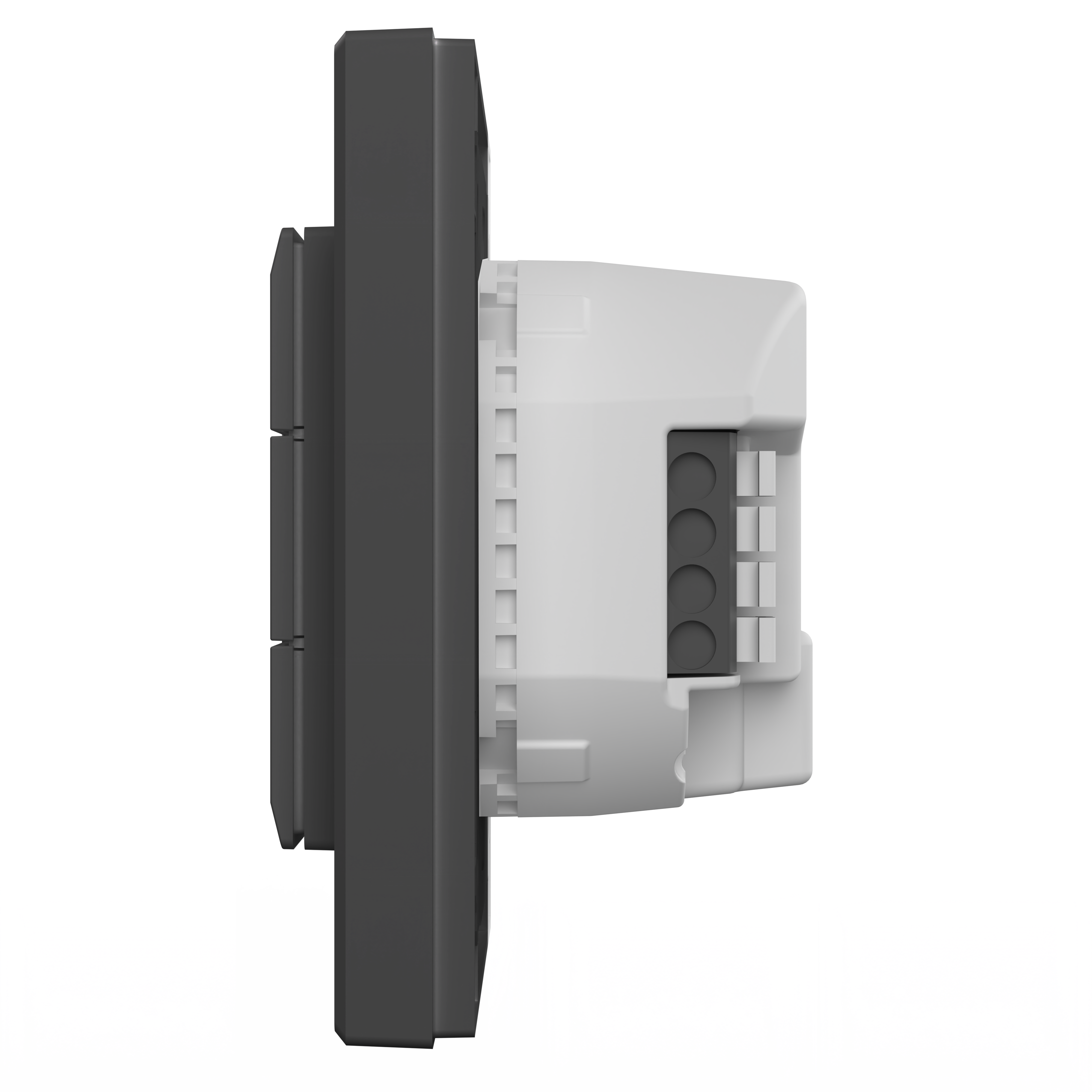

- Tool-free installation using spring terminals
Technical data:
- Power supply: 230 V / 50 Hz
- Radio frequency: 868.0–868.6 MHz / 869.4–869.65 MHz
- Radio range: up to 120 m (open field)
- Protection class: IP20
- Operating temperature: –5 to +40 °C
- Max. switching capacity: 1380 W
- Max. current: 6 A
- Standby power consumption: 0.65 W
The device enables central control of multiple functions within a Homematic IP system.
