Z100
Zennio Z100, ZVIZ100, 10" KNX Touch Panel 1280x800
| Manufacturer: | Zennio |
|---|---|
| Product no.: | 030360ZVIZ100A |
From stock
2 products available
Produktinformationen
Description

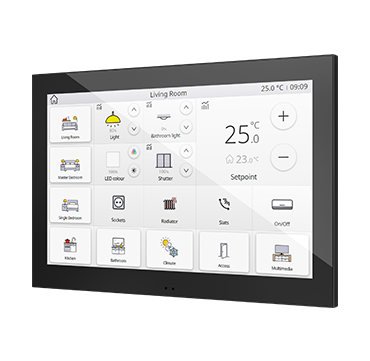

Zennio Z100 is a 10-inch capacitive KNX touch panel with 1280 x 800 pixel colour display. It features integrated KNX BCU (TP1-256), two independent thermostats and four analog/digital inputs. Includes proximity and ambient light sensor, speaker, microphone, Ethernet RJ45 and Micro-USB. External 24–29 VDC supply. Designed for flush mounting in double EU or UK wall boxes.
Show more
Show less
Variants Properties
| Color: | Black |
|---|
Technical data
| Width: | 174 mm |
|---|---|
| Height: | 39.2 mm |
| Length: | 248.9 mm |
| Weight: | 0.3 kg |
| Bus system: | KNX TP (Twisted Pair) |
| Country of Origin: | Spain |
| External power supply: | 24 - 29 VDC |
| Height: | 39.2 mm |
| Input type: | analog/digital |
| Max. ambient temperature: | 45 °C |
| Min. ambient temperature: | 5 °C |
| Number of inputs: | 4 |
| Operation humidity: | 5 to 95% RH (without condensation) |
| Portection rating: | IP20 |
| Touchscreen: | Capacitive Glass Touch |
| Voltage (typical): | 29 V |
Show more
Show less
Accessories
Complementary products
More information
Zennio Z100 (ZVIZ100) is a full-colour 10-inch capacitive KNX touch panel with 1280 × 800 pixel resolution and 16 million colour LCD display.
Display and Operation
- 10" colour touchscreen
- 1280 × 800 pixel resolution
- Proximity and ambient light sensor
- Integrated speaker and microphone
KNX Functions
- Integrated KNX BCU (TP1-256)
- Data backup in case of KNX bus failure
- Two independent thermostats
- Four analog/digital inputs
Interfaces
- Ethernet RJ45
- Micro-USB port
- External 24–29 VDC power supply
- KNX TP1 bus connection
Technical Data
- Protection rating: IP20
- Dimensions: 248.9 × 174 × 39.2 mm
- Weight: 693 g
- Flush mounting in double EU or UK wall box
