Z40
Zennio ZVIZ40, KNX touch panel, touch screen, ETS configuration
| Manufacturer: | Zennio |
|---|---|
| Manufacturer no.: | ZVIZ40A |
| Product no.: | 030360ZVIZ40A |
| GTIN/EAN: | 8411080801326 |
From stock
1 product in stock
Product information
Description

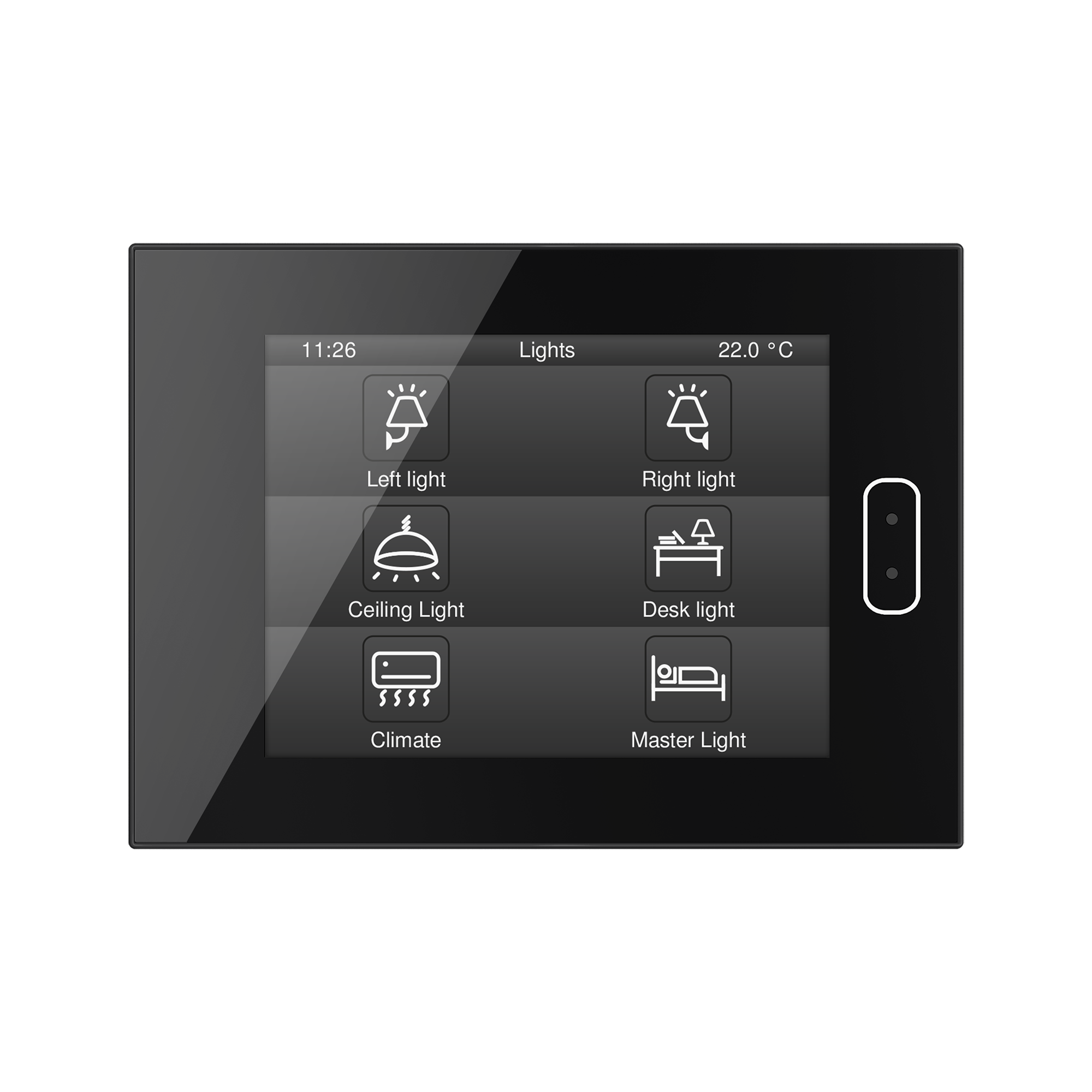

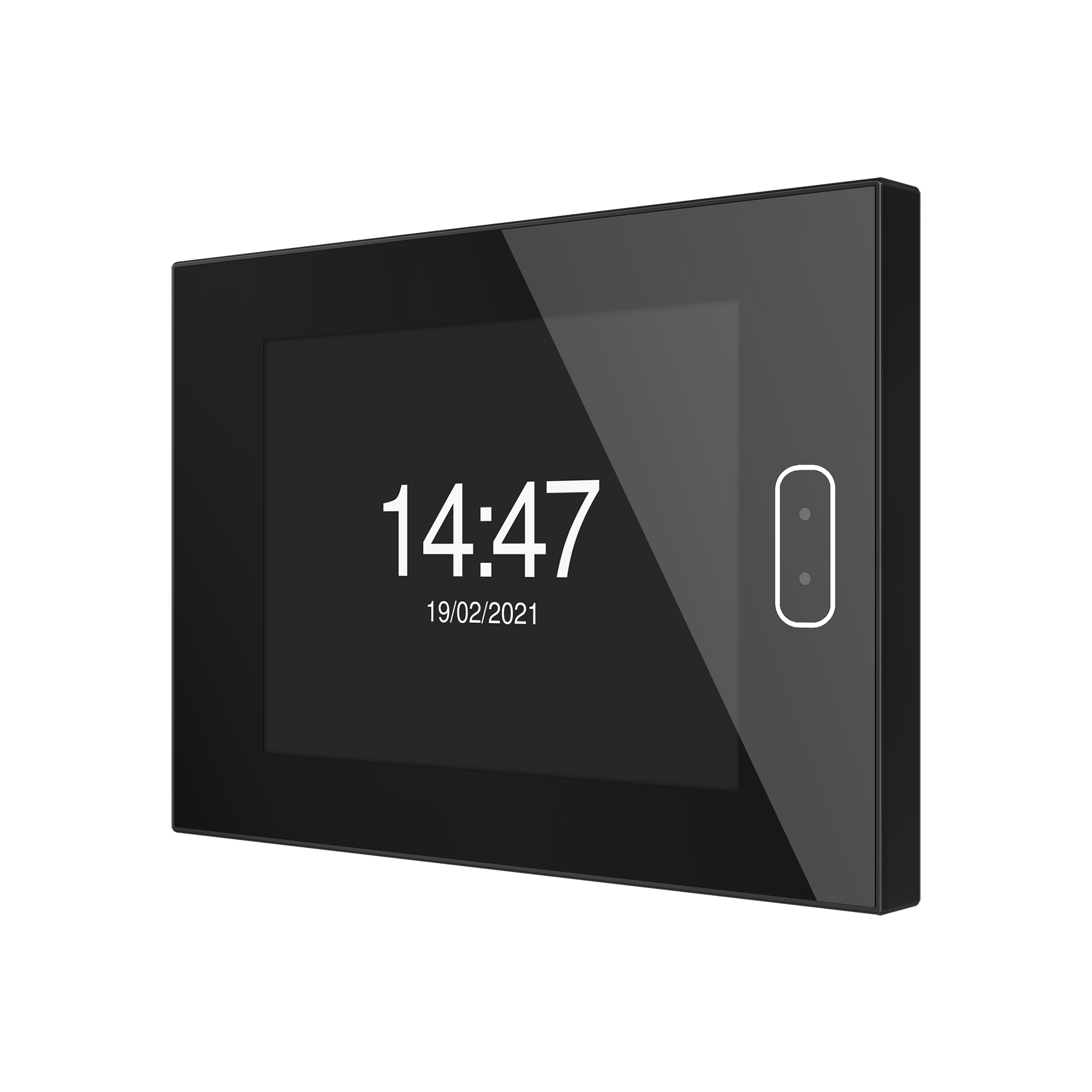

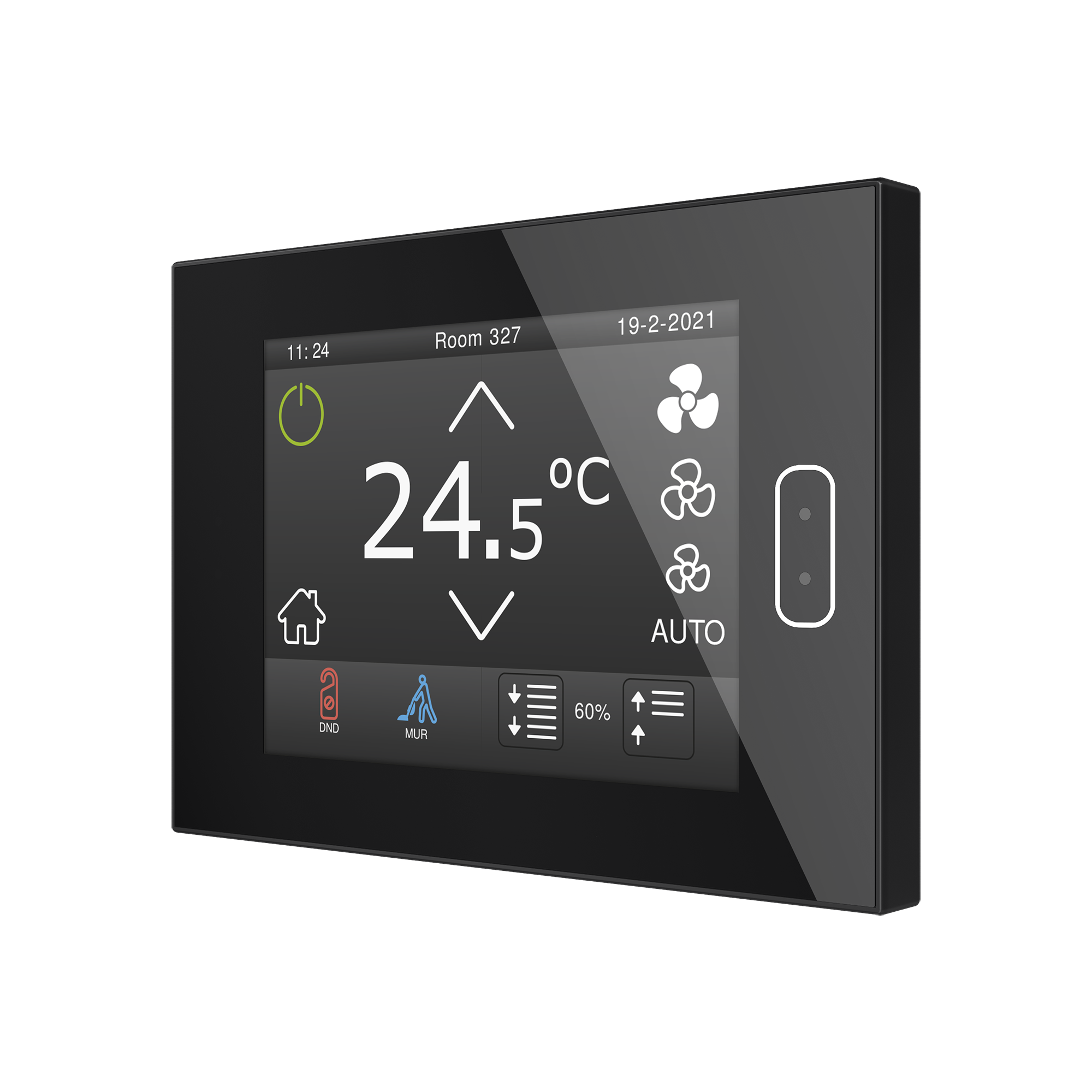

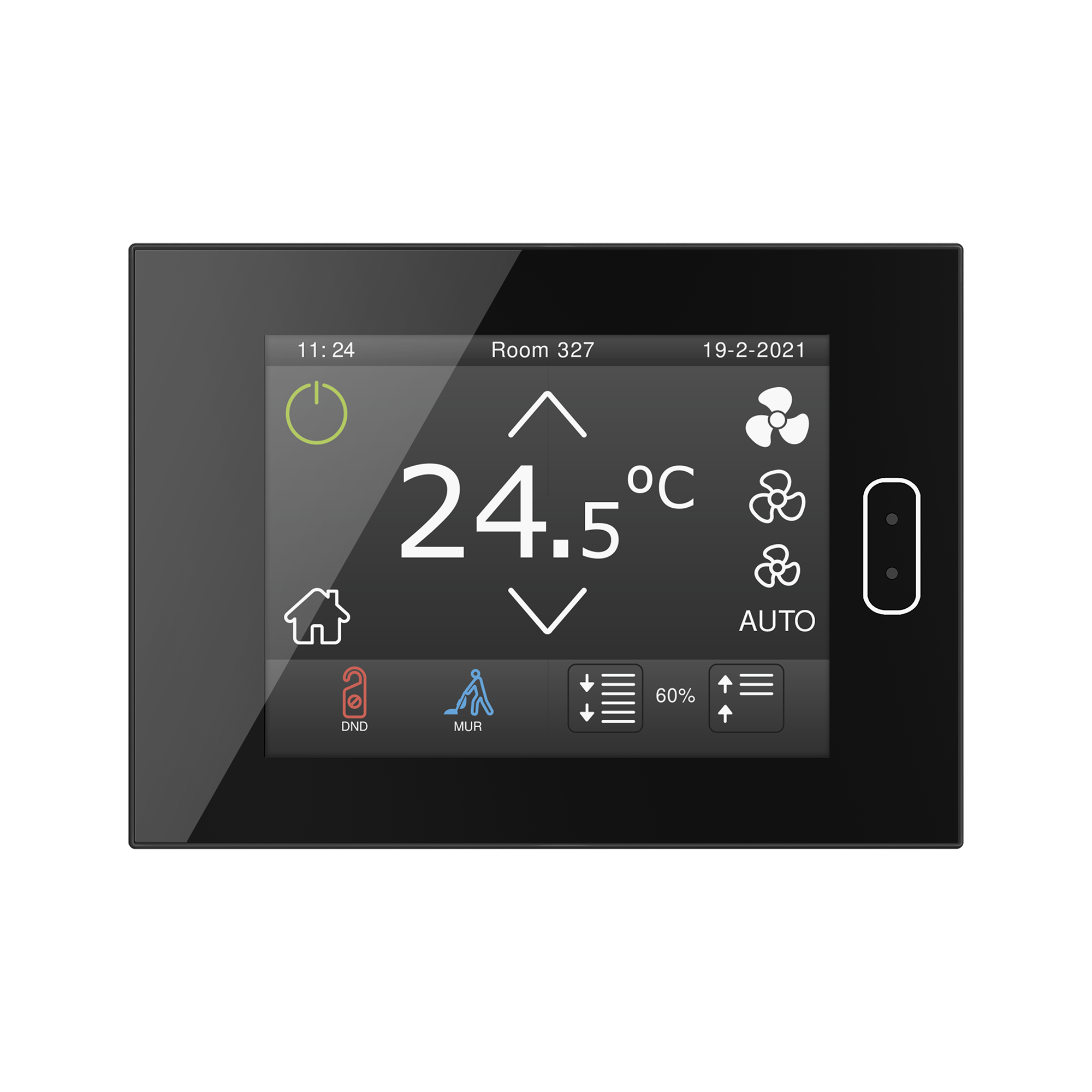

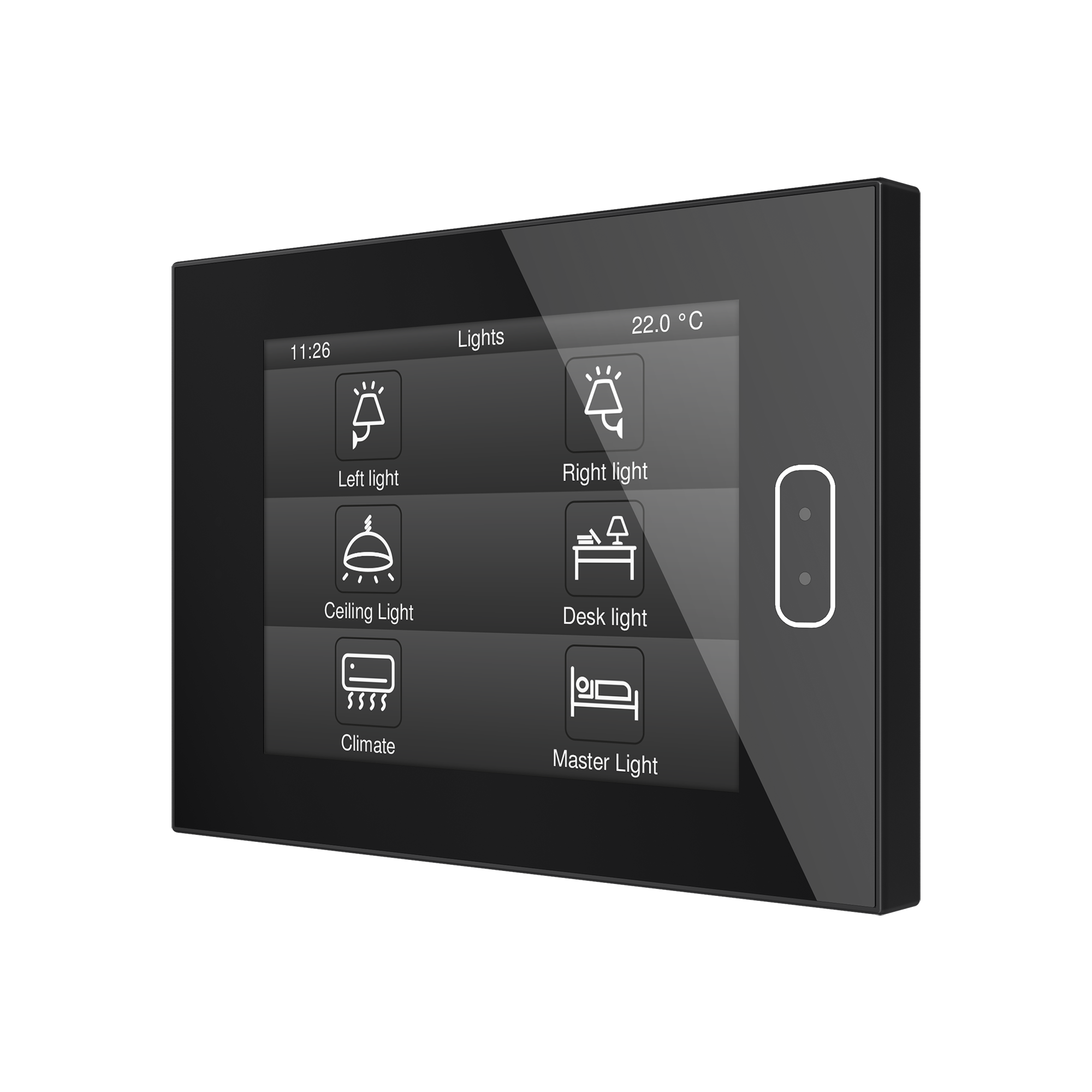

The ZVIZ40 is a capacitive KNX touch panel with a display size of 4.1" and can handle up to 56 control commands. The KNX touch panel can be installed vertically.
Show more
Show less
Variants Properties
| Color: | Black |
|---|---|
| Frame Color: | Polycarbonate |
Show more
Show less
Technical data
| Width: | 90.6 mm |
|---|---|
| Height: | 11.5 mm |
| Length: | 124.6 mm |
| Weight: | 0.322 kg |
| Bus system: | KNX TP (Twisted Pair) |
| Country of Origin: | China |
| External power supply: | Aucun requis |
| Height: | 11.5 mm |
| Input type: | analog/digital |
| Max. ambient temperature: | 55 °C |
| Min. ambient temperature: | -20 °C |
| Number of inputs: | 4 |
| Operation humidity: | 5 to 95% RH (without condensation) |
| Portection rating: | IP20 |
| Touchscreen: | Capacitive Glass Touch |
| Voltage (typical): | 29 V |
