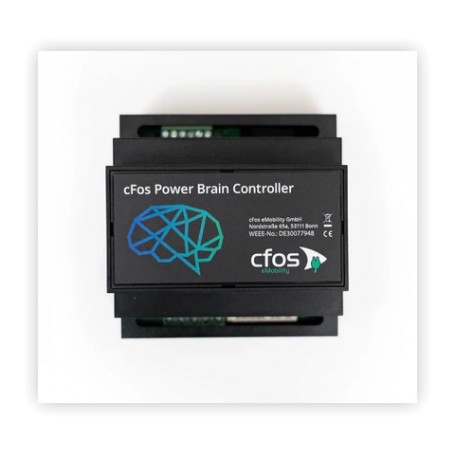

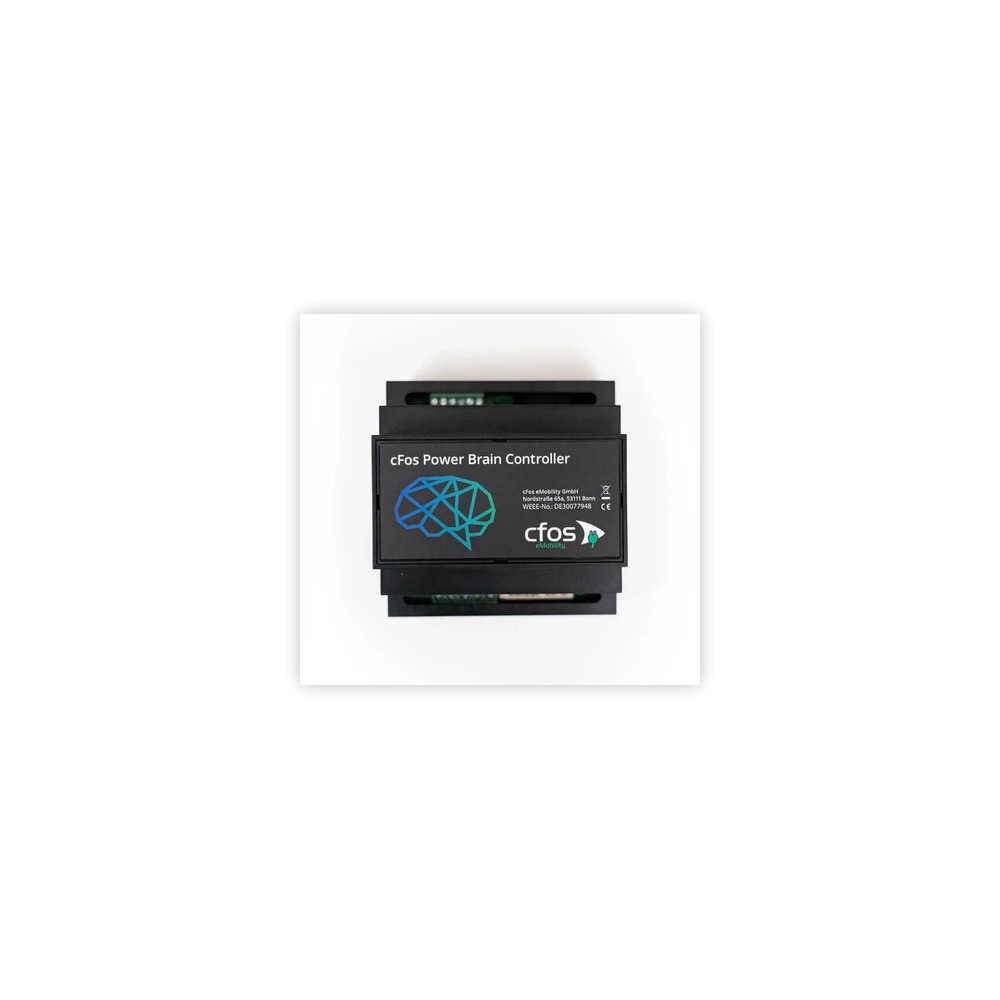

cFos Power Brain Controller with DC-Sensor

The cFos Power Brain Controller is a charge controller and has the following components: - 230V relay for switching a 3-phase contactor to release the charging current - 230V relay for switching an optional 1-phase contactor for switching to single-phase charging - RS 485 interface - I2C interface for connecting displays and RFID readers - 2 S0 inputs - GPIO pin header with numerous analogue and digital inputs and outputs - 230V integrated power supply unit Connectivity: - WiFi 802.11 b/g/n, including full TCP/IP stack - OCPP 1.5 and OCPP 1.6 (SOAP and JSON), both client and backend - HTTP, MQTT - Modbus TCP and RTU - cFos Mesh - cloud
