  2. ACTinBOX QUATRO

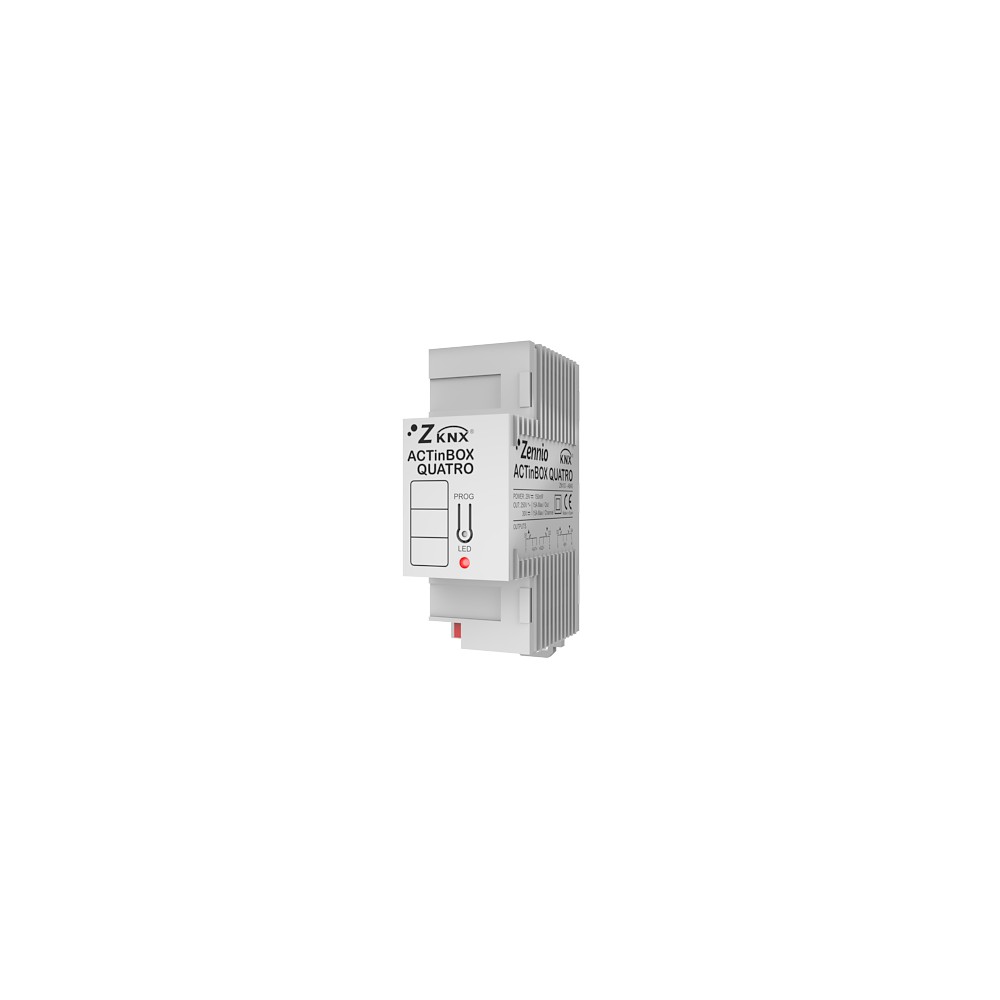

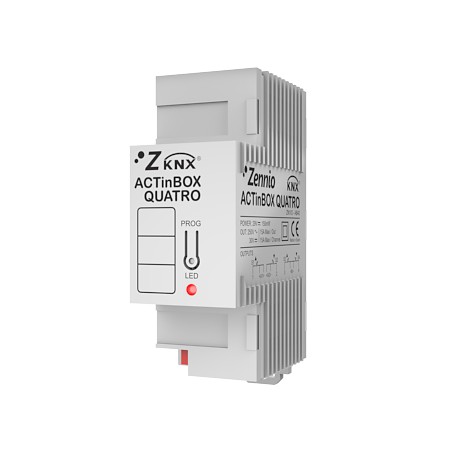

Zennio ZN1IO-AB40, Multifunction actuator, 4 outputs, IP20

ACTinBOX QUATRO

Zennio

ZN1IO-AB40

030300ZN1IOAB40

New

METTALLIC ASSEMBLY FOR SQUARE TMDMultifunction actuator. 4 x 16A outputs, C-Load. 2 DIN rail units. ACTinBOX QUATRO is a multifunction actuator with 4 outputs suitable for capacitive loads. It includes advanced logical functions that provide it with a large variety of different configuration possibilities.
Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet
Rate it

Data sheet

Length 90.00 Millimeter
Mounting options DIN-Rail mounting
External power supply Aucun requis
Width 60.00 Millimeter
Portection rating IP20
Horizontal pitch (HP) 2.0000
Voltage (typical) 29.00 Volt
Height 35.00 Millimeter
Min. ambient temperature 0.00 Celsius
Number of inputs 1.0000
Voltage Range (Min.) 21.00 Volt
Max. ambient temperature 55.00 Celsius
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 4.0000
Power consumption (W) 0.00 Watt
Output Current 0.00 Ampere
Output Power 0.00 Watt
Actuator Type Multifunction Actuator
Operation humidity 30 to 85% RH (without condensation)
Connection Type KNX bus terminal
KNX Secure No
  • Download Zennio ETS application files
