Ajax Alarm system Hub 2, Security Control Panel, Ethernet, Visual alarm verifications

Hub 2

Ajax Systems

HUB 2

0856963007767

New

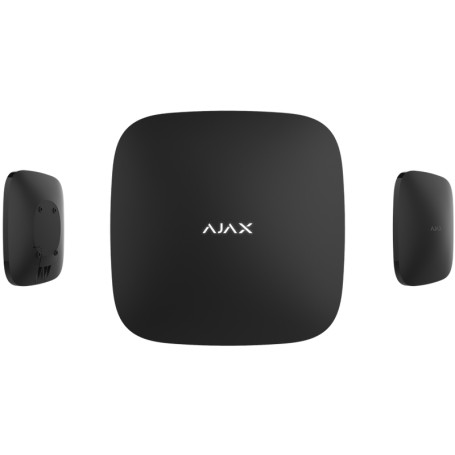

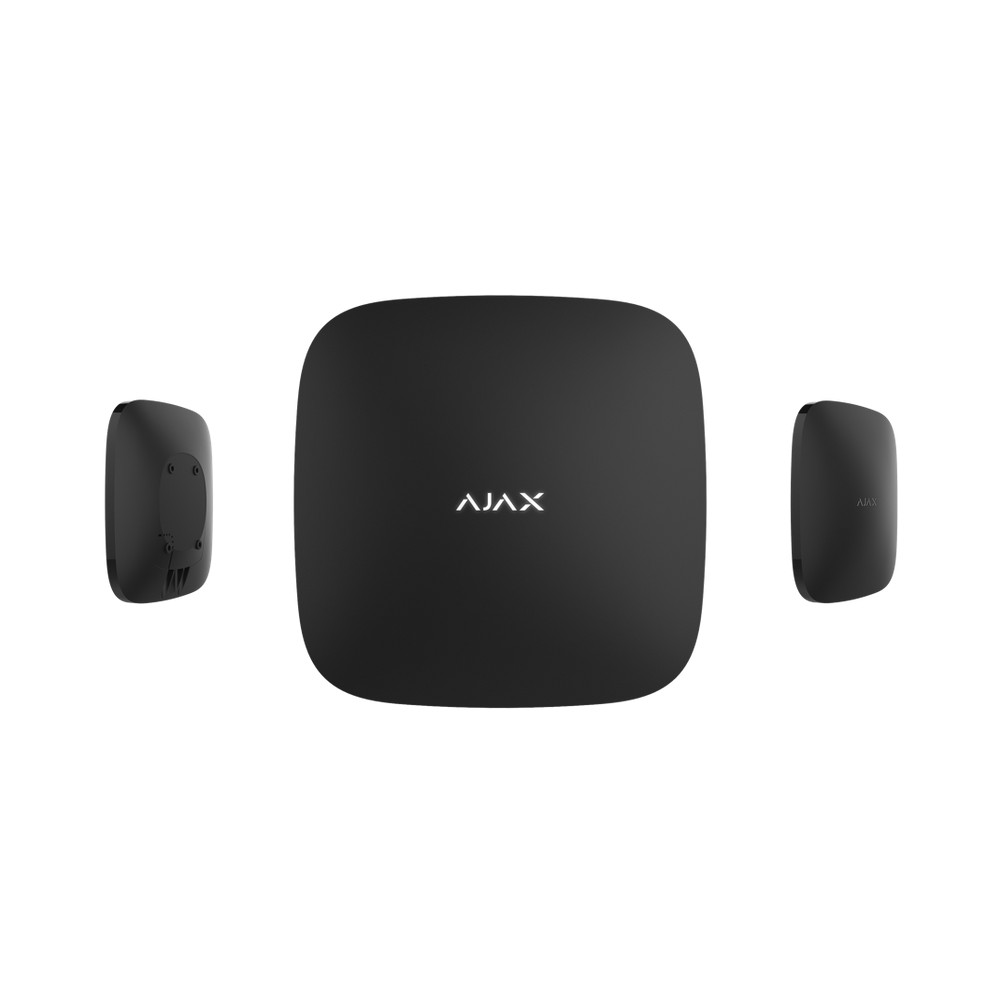

The Ajax Systems Hub 2 is the control centre of the alarm system. Hub 2 controls all Ajax devices to alert users to open doors, broken windows, fire hazards and flooding. Hub 2 is the only control panel compatible with the MotionCam.

More details

on stock

24 Items

355.65 CHF inkl. MwSt.

Customer ratings and reviews

(5/5)
1 rating(s) - 1 review(s)
View distribution

Data sheet

Length 163.00 Millimeter
Standards / Approvals DIN EN 50131 Grade 2, CE
Width 163.00 Millimeter
Height 36.00 Millimeter

More info

Transmits photos from MotionCam detectors

Automatically notifies the alarm response company

Full system control in one app

Communicates via 3 independent channels

In control of security, not your private life

Hub 2 manafes all the Ajax devices in the system to alert users about open doors, broken windows, threats of fire and flooding. If burglars break into your house, Hub 2 transmits pictures from the MotionCam detectors and notifies the alarm response company about the danger. You won’t need to live under the constant supervision of the security cameras to know what’s going on.

  • Baffles thieves
  • Prevents fire
  • Detects flooding
  • Doesn't peek

Stress-free

The motion detectors react to dangerous situations as well as simple oversights. A nanny may bring the children home from the school and forget to disable the security system, which will raise an alarm. With Hub 2, you won’t have to worry in those cases and waste money on the false alarm fines. Open an alarm notification sent by the MotionCam detector to see what happened.

  • Send a photo-series when triggered
  • Deliver packages without Wi-Fi and cables

Always in touch

Hub 2 uses Ethernet or one of the 2 SIM cards to guarantee the delivery of the alarms and photos from the secured objects. The channels work in parallel and back each other up in case of emergency.

Compression and transmission protocols guarantee lightning — fast delivery of the photo series even with weak Internet connectivity. Unlike with the video camera streams, with Ajax, you can evaluate the situation on the secured objects at the 0.5 kB/s Internet speed.

  • Uses 3 independent communication channels
  • Delivers alarms in 0.15 seconds
  • Transmits photo confirmations even on 2G

Trouble resistant

With Hub 2, you’ll know immediately if the detector has a malfunction, if someone removed it, if it is damaged, or if its body is open. Even if the lights suddenly go out, the control panel will continue its watch powered by a back-up battery.

  • Checks the functionality of detectors at least every 12 seconds
  • Alerts about threats, channel interference, or malfunctions
  • Operates for up to 16 hours during a blackout

Evolves with every software update

Hub 2 runs on OS Malevich, a real-time operating system. This type of software is used in the systems that can’t afford mistakes — for instance, spaceships and ballistic rocket launchers, or car brakes.

OS Malevich is immune to viruses and protected from cyber attacks. Its architecture allows us to regularly expand the Ajax possibilities over the air within seconds and without bothering the users.

  • Protected from cyber-attacks
  • New features with every update
  • Automatically updates over the air

Unique communication technologies

Jeweller


Hub 2 central panel communicates with the security system devices using radio frequencies on a distance of up to 2000 m.


Two-way Jeweller radio protocol encrypts all of the transmitted data. And in cases of interference or jamming, Ajax switches the frequency and notifies you as well as the alarm response company about the situation.


  • Coverage area up to 2000 m
  • Two-way radio communication
  • Encryption with a modified AES algorithm
  • Frequency hopping

Wings


For parallel visual data transmission from MotionCams, Hub 2 uses Ajax Wings radio protocol. It is a high-speed protocol based on Jeweller technology. Wings received its best features. It also uses a separate antenna to improve channel reliability.

Wings guarantees the delivery of photo confirmations even if the signal level is unstable. It uses the in-built algorithms of package checking and re-uploading.


  • Transmission of the animated image series
  • Communication via additional antenna
  • Guaranteed data delivery

Seamless setup

It takes minutes to install Hub 2. Connect it to the Internet and plug the power cord. Then scan the QR code using Ajax app. In most cases, your devices won’t require any additional tuning. Hub 2 begins to operate once online.

  1. Download the free app
  2. Scan the QR-code
  3. Control from anywhere in the World

Tech specs

Classification

The radio channel central unit with the support of visual alarm verification detectors

Installation

Indoors

Maximum amount of devices that could be connected to the hub

100

Video surveillance support

Up to 25 cameras or DVRs

Maximum amount of users

50

Maximum amount of rooms

50

Maximum amount of security groups

9

MotionCam detectors support

+

Communication channels

Ethernet

two 2G SIM-cards

Alarm signals

Delivery time: 0.15 sec

Notification types: SMS, call, push-notification

Switching between the SIM-cards

4 minutes

CMS connectivity

Contact ID, SIA

The speed of alarm delivery to the CMS

Instant

Software

OS Malevich

Power supply

Main supply: 110−240 V

Battery backup: Li-Ion 2 А·h

Up to 16 hours of offline operation when the Ethernet is switched off

Energy consumption from the grid — 10 W·h

Jeweller radio technology

Communication range with detectors — up to 2,000 m in an open space

Two-way communication between devices

Operating frequencies — 868.0-868.6 MHz

Self-adjusting RF output power — up to 25 mW

Block encryption based on AES algorithm

Detector polling period — 12−300 s

Frequency hopping

Wings radio technology

Transmission of visual confirmations

Delivery verification of packages

Operating temperature range

From −10°С to +40°С

Size

163×163×36 mm

Weight

362 g

Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

Ajax Hub 2 intelligent control panel

SmartBracket mounting panel

Power cable

Ethernet cable

Installation kit

SIM card (depending on region)

User’s guide
