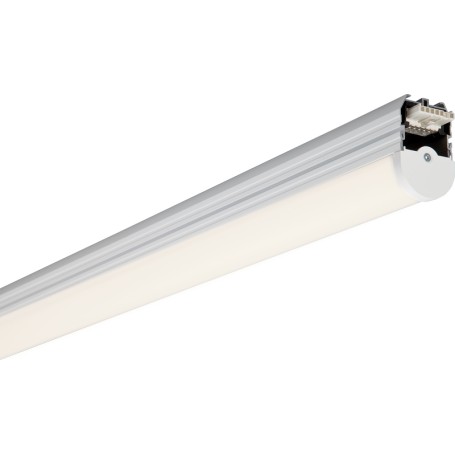

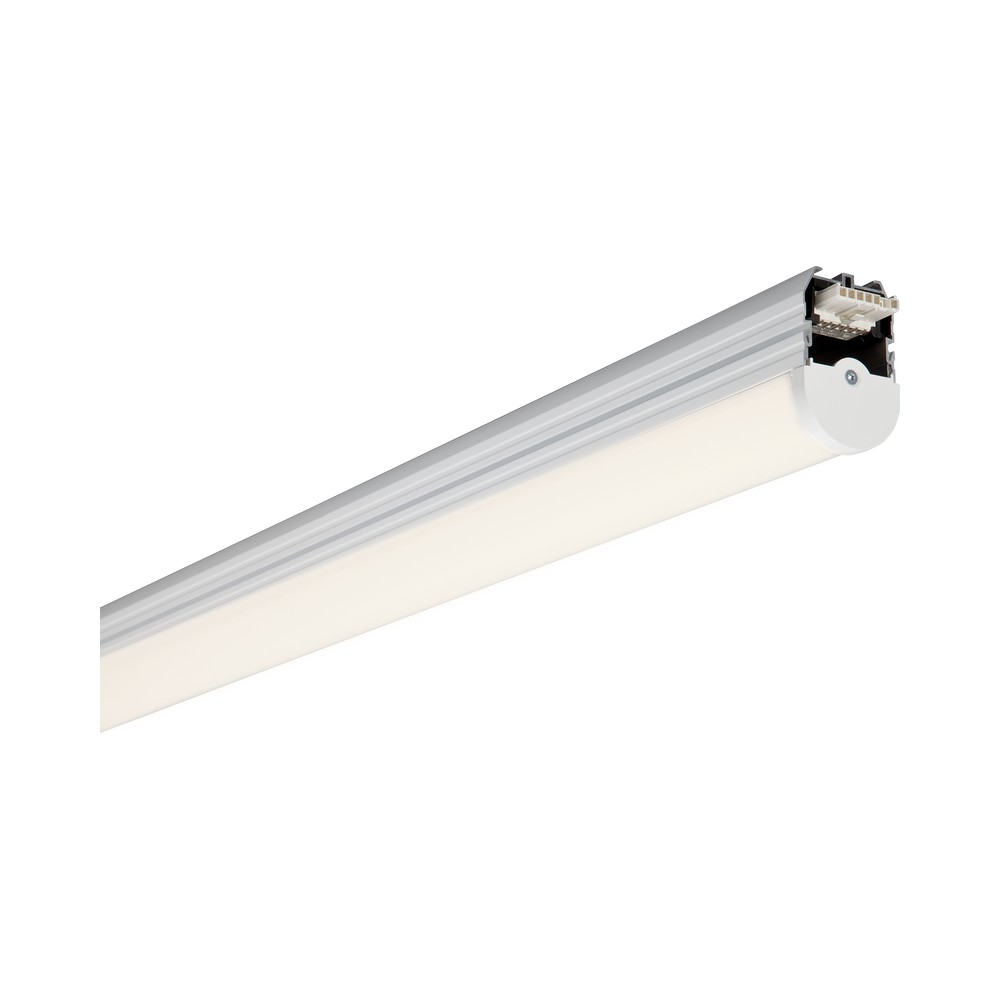

Licatec GT 172.4.B.LED-S, LED continuous row system, 230V, IP20, 4000K

GT 172.4.B.LED-S

Licatec Lights

GT 172.4.B.LED-S

181810284813

New

Modular fast-assembly trunking system, IP20, consisting of one aluminium support rail, powder-coated white, incl. through-wiring 5 x 2.5 mm², proportional chain hangers without chain (optional ceiling fastener), support rail connectors, support rail end pieces, power supply plug. The gear tray is also made of aluminium and powder-coated white (except LED-S). Wired ready for connection with 4,000 K LED system (CRI bigger than 80, 50,000 h), certified brand driver (ENEC) or for LED TUBE powered on one side, 1- or 2-lamp. An opal diffuser in the LED system ensures uniform illumination of the working plane. A 60° lens optic can be used for larger mounting heights. The gear tray can be attached at any point of the mounting rail system without tools using a flexible phase preselection plug.

More details

2 weeks

189.20 CHF inkl. MwSt.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Luminaire type LED surface-mounted luminaire, LED light band system
Standards / Approvals CE
Length 1426.00 Millimeter
Portection rating IP20
Power consumption (W) 72.00 Watt
Connection value 230.00 Volt
Service life 50000.00 Hour
Colour temperature 4000.00 Kelvin
Colour rendering RA / CRI ≥ 80
Luminous flux (lm) (approx.) 10450.0000

More info

Modulares Schnellmontage-Lichtbandsystem, IP20, bestehend aus einer Aluminium-Tragschiene, weiss pulverbeschichtet, inkl. Durchgangsverdrahtung 5 x 2,5 mm², anteiligen Kettenaufhängern ohne Kette (optional Deckenbefestiger), Tragschienen-Verbindern, Tragschienen-Endstücken, Einspeisestecker. Der Geräteträger ist ebenfalls aus Aluminium gefertigt und weiss pulverbeschichtet (ausser bei LED-S). Anschlussfertig verdrahtet mit LED-System 4.000 K (CRI > 80, 50.000 h), zertifiziertem Markentreiber (ENEC) oder für einseitig bestromte LED-TUBE, 1- oder 2-lampig. Eine opale Abdeckung beim LED-System sorgt für eine gleichmässige Ausleuchtung der Nutzebene. Bei größerer Lichtpunkthöhe kann eine 60° Linsenoptik eingesetzt werden. Der Geräteträger kann mittels eines flexiblen Phasenvorwahlsteckers an jeder beliebigen Stelle des Tragschienen-Systemes werkzeuglos befestigt werden.
