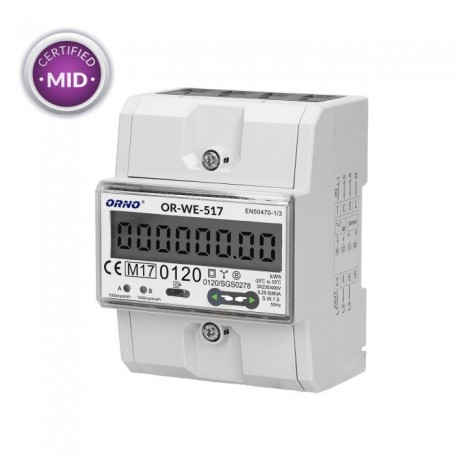

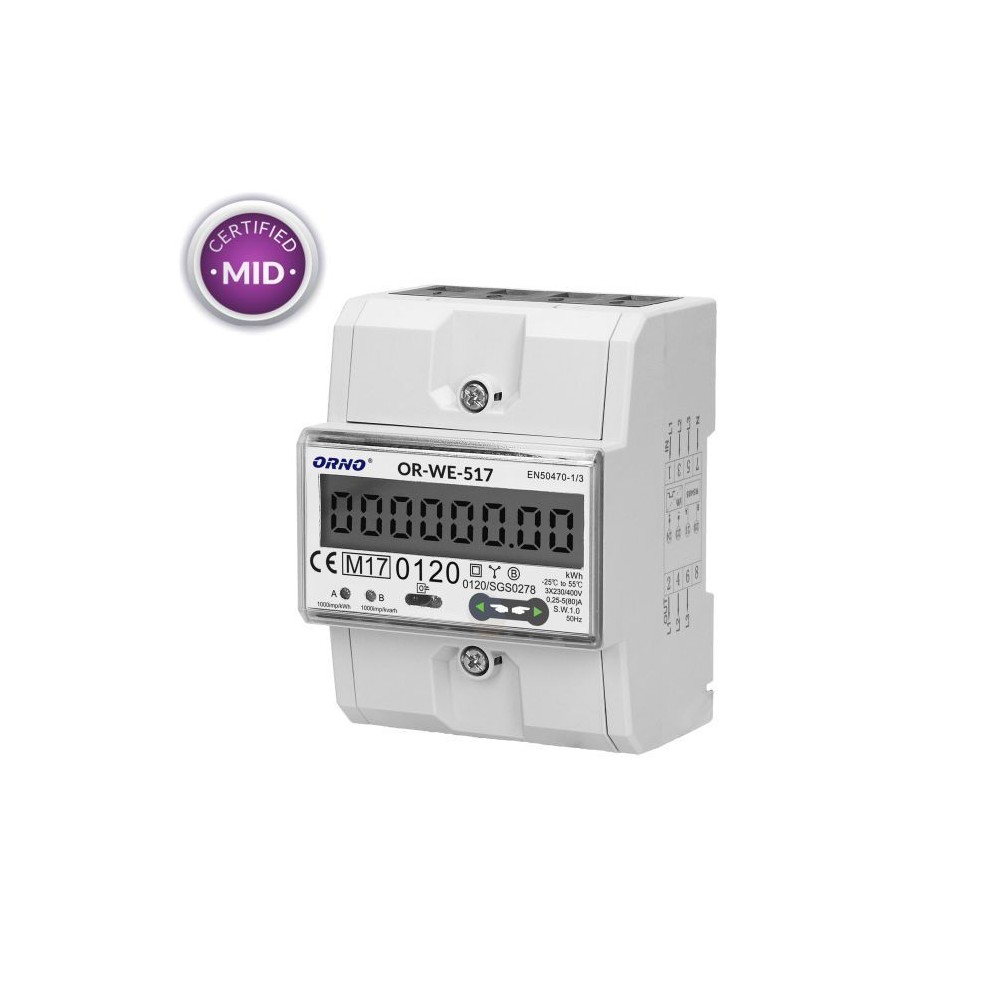

ORNO OR-WE-517, 80A, 3-phase, DIN rail

Device for the realization of indications in kWh with the possibility of remote reading of the indicator registers, through a wired network of RS-485 standard. A special electronic circuit, through the flow of current and the applied voltage, generates pulses in proportion to the energy consumed. The energy consumption phase is indicated by a flashing LED. The number of pulses is converted into energy input and its value is indicated on the LCD display (6 + 2). 4 independent tariffs (the user can define different schedules via the RS485 port). MID 0120/SGS0278 certificate.
