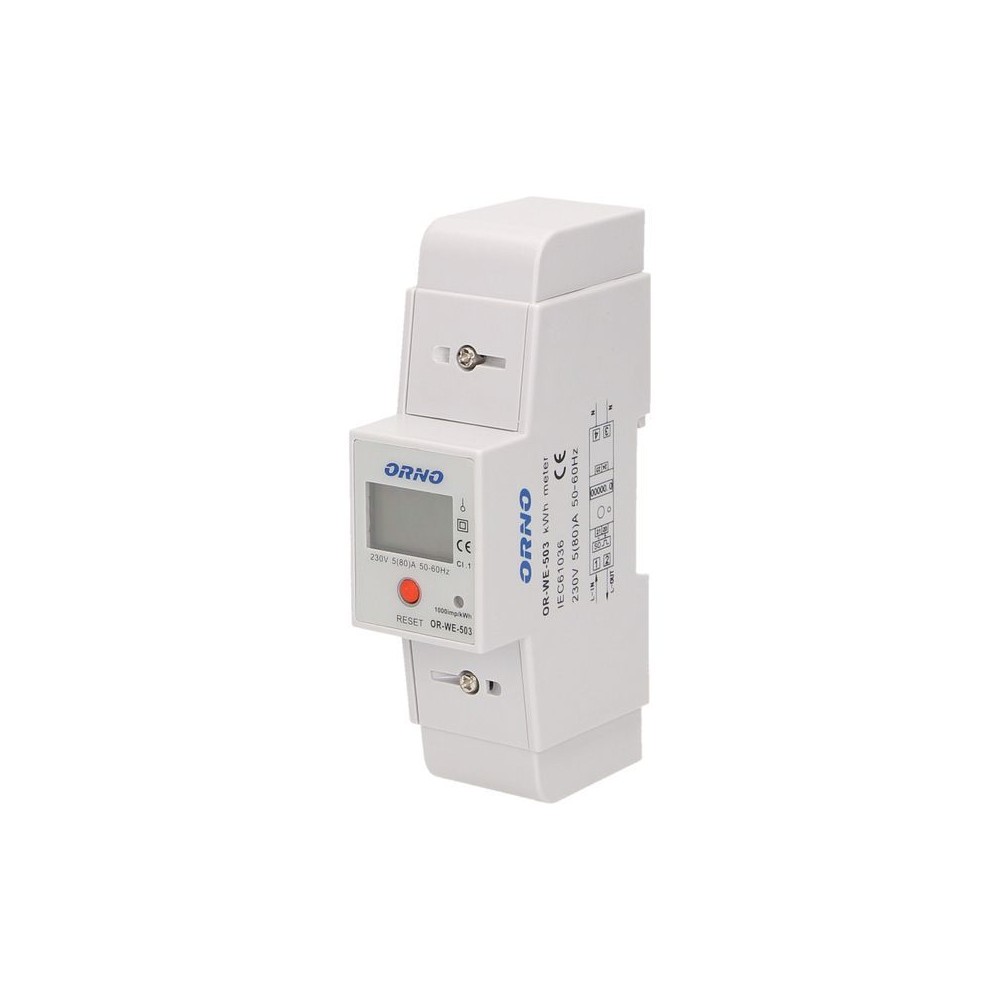

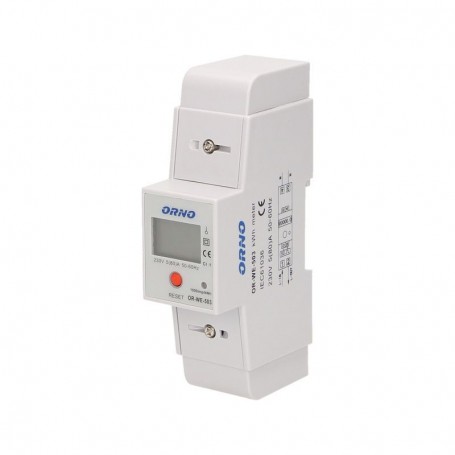

ORNO OR-WE-503, Energy meter, Display, 1 Phase, 80A

Device for making indications in kWh. A special electronic circuit, by the flow of current and applied voltage generates pulses in proportion to the energy consumed. Phase energy consumption is signaled by a flashing LED. The number of pulses is converted into energy input and its value is indicated on the LCD display (5 + 1). Equipped with an additional indicator with the possibility of erasing. Pulse output: voltage: 27V; current: 27mA; current pulse: 90ms; maximum cable length: 20 m; connection terminals 20 and 21; maximum value: max voltage 60VDC; maximum current of 50mA.
