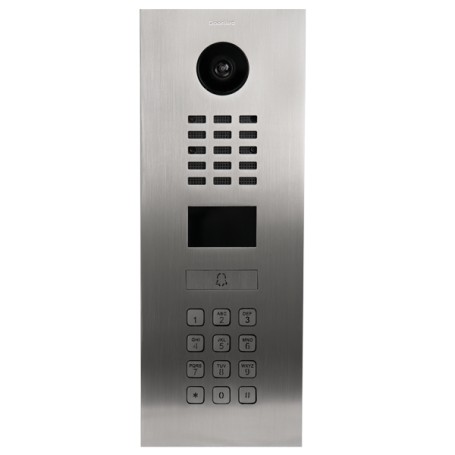

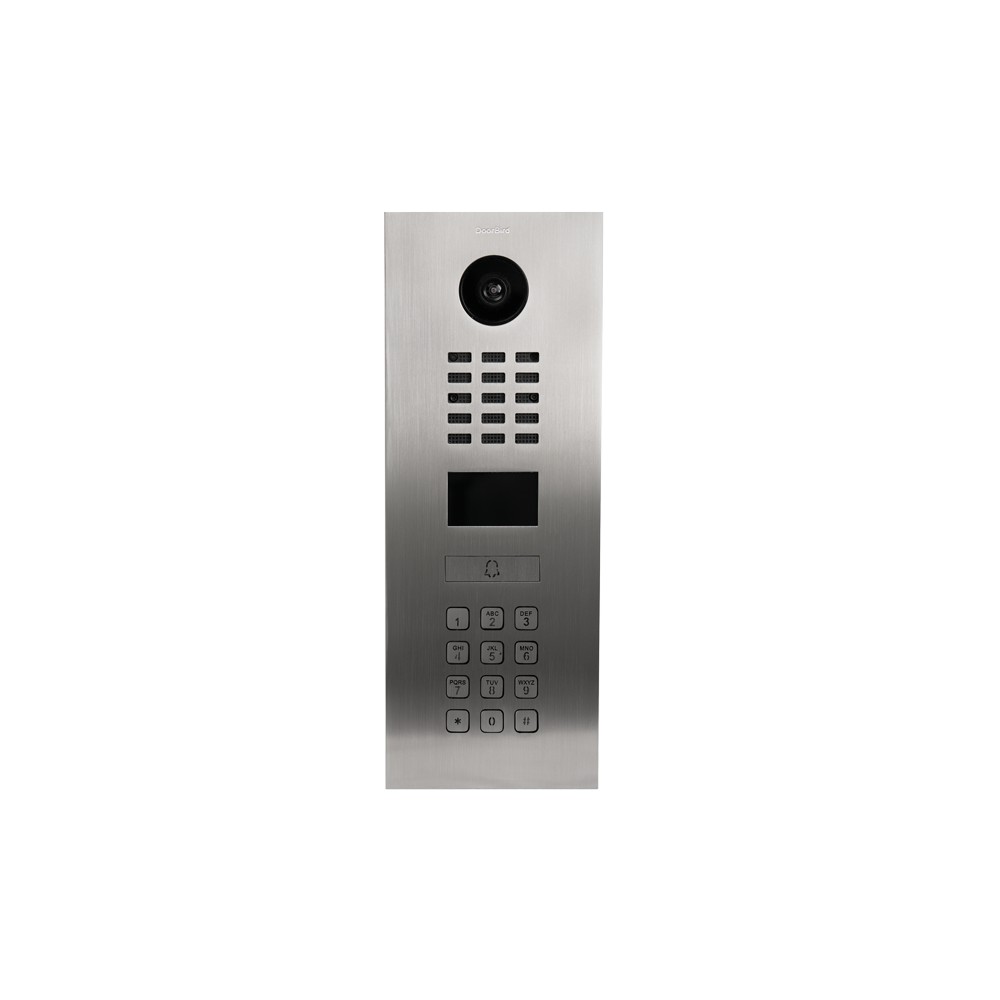

DoorBird D2101KV, IP video door phone, LAN, 1 call button, keypad module

Data sheet

Mounting options	wall mounting, flush-mounting, Wall mounting (surface mounted)
Length	351.50 Millimeter
Width	131.00 Millimeter
Portection rating	IP65
Voltage (typical)	15.00 Volt
Min. ambient temperature	-25.00 Celsius
Max. ambient temperature	55.00 Celsius
Depth	48.00 Millimeter
Material	Stainless steel / V4A, Stainless steel / V2A
Functions	RFID, internal microphone, Relais, Nightvision (12x IR-LED) with light sensor, Motiondetector, loudspeakers
Color	titanium optics, Purple / RAL 4006, Grey / RAL 7011, Stainless Steel / Brushed V2A, Orange / RAL 2002, Green / RAL 6006, Brown / RAL 8023, Gold look, Blue / RAL 5002, Grey / RAL 7016, genuine architectural bronze / hard wax sealed, Red / RAL 3000, Green / RAL 6019, White / RAL 9002, Grey / DB 703, Yellow / RAL 1003, Blue / RAL 5012, Grey / RAL 7033, Bronze, Pink / RAL 3014, Grey / RAL 7001, Grey / RAL 9007, Graphite Black (Raven Polar), Yellow / RAL 1016, Blue / RAL 5018, Brown / RAL 8004, brass, Purple / RAL 4005, Grey / RAL 7006, White / RAL 9016, Yellow / RAL 1037, Green / RAL 6000, Brown / RAL 8016, Titanium optics / high gloss polished, Pruple / RAL 4009, Grey / RAL 7015, Stainless Steel / Brushed V4A, Orange / RAL 2004, Green / RAL 6018, Brown / RAL 8028, real brass / burnished, Beige / RAL 1001, Blue / RAL 5004, Grey / RAL 7023, Red / RAL 3007, Green / RAL 6027, White / RAL 9006, Red / RAL 3028, Yellow / RAL 1004, Blue / RAL 5013, Grey / RAL 7044, Chrome, Purple / RAL 4004, Grey / RAL 7004, White / RAL 9010, Yellow / RAl 1017, Blue / RAL 5022, Brown / RAL 8011
Motion sensor	Yes
Number of call buttons	1
RFID	Yes
Operation humidity	10 bis 85% (without condensation)
Ethernet interfaces	1 (10/100 PoE)

More info

Downloads

Data sheet (DE)
D2101KV excl. flush-mounted box

Data sheet (EN)
D2101KV excl. flush-mounted box

Data sheet (FR)
D2101KV excl. flush-mounted box

Manual (DE)
D2101KV excl. flush-mounted box

Manual (EN)
D2101KV excl. flush-mounted box

Manual (FR)
D2101KV excl. flush-mounted box

Reviews

By Jacques J. on 13 Feb. 2024 (D2101KV excl. flush-mounted box) :

Horrible camera

Facile a installer et utiliser. Beau design en Inox par contre la caméra..... on peut reconnaitre des personnes a 1 ou 2m max sinon image tres médiocre. Hier matin a 11h00 un renard est passé sur le mur à 5m de la caméra. On devine que ce n'est pas un chat....
Sinon la vision de nuit est nulle de nulle je vai devoir mettre un projecteur LED de 30W car avec les 12 lampes du porche d'entrée qui sallument en cas de mouvement, on n'arrive pas à distinguer se qui ce passe devant l'entrée.

Je ne comprends pas poirquoi ils mettent une camera aussi médiocre dans un boîtier a 1000.-
