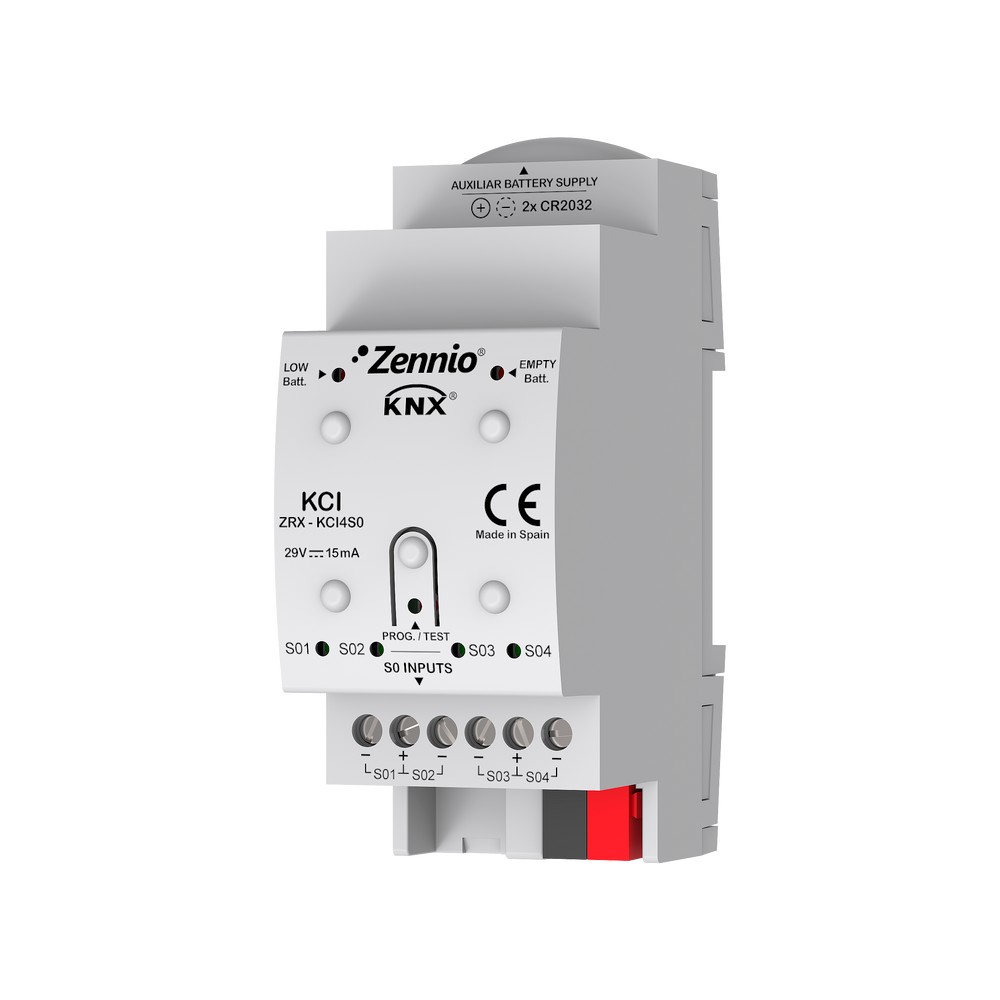

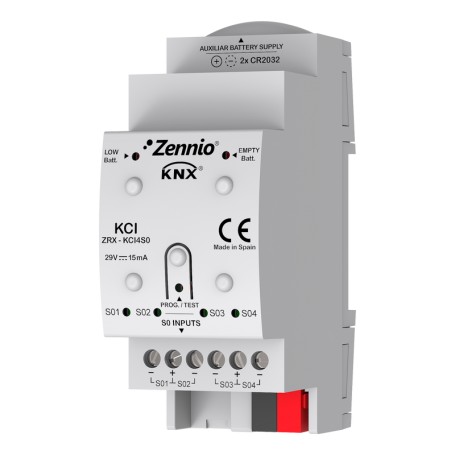

Zennio ZRX-KCI4S0, KNX interface for consumption meter

Product Name: KCI 4 S0

Manufacturer: Zennio

Manufacturer-Nr.: ZRX-KCI4S0

Reference: 030300ZRXKCI4S0

GTIN: 8411080793270

Condition: New

KNX power supply 640mA plus 29VDC ancillary power supply. Vin: 230VAC

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	100.00 Millimeter
Width	94.00 Millimeter
Portection rating	IP20
Height	72.00 Millimeter
Input type	analog
Number of inputs	4.0000
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	0.0000
Sensortype	Energy Meter
Bus system	KNX TP (Twisted Pair)

More info

Downloads

Data sheet (DE)
KCI 4 S0

Data sheet (EN)
KCI 4 S0

Data sheet (FR)
KCI 4 S0

Manual (EN)
KCI 4 S0

Manual (FR)
KCI 4 S0

KCI. KNX Interface for consumption meters.

KCI KNX Consumption Interface (KCI) is the Zennio KNX interface for four consumption meters with S0-pulse outputs to monitor their electricity (energy and power), water and/or gas (volume and flow rate) consumption measure in the KNX bus. A removable battery allows buffering S0 pulses during a KNX power failure and recovers the real consumption afterwards. LED indicators make the user able to check the existence of communication through each S0 channel, as well as the battery status (low battery and/or run out of battery), which is also indicated in the KNX bus. DIN rail mounting device (2 DIN rail units).
