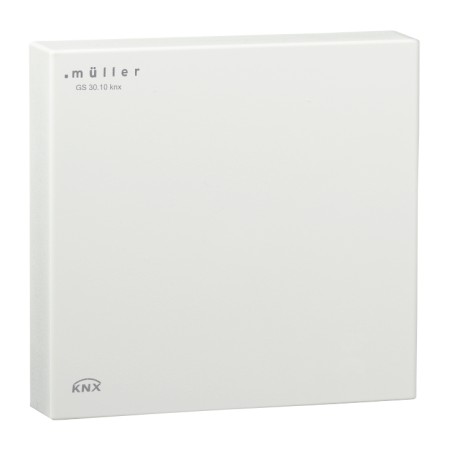

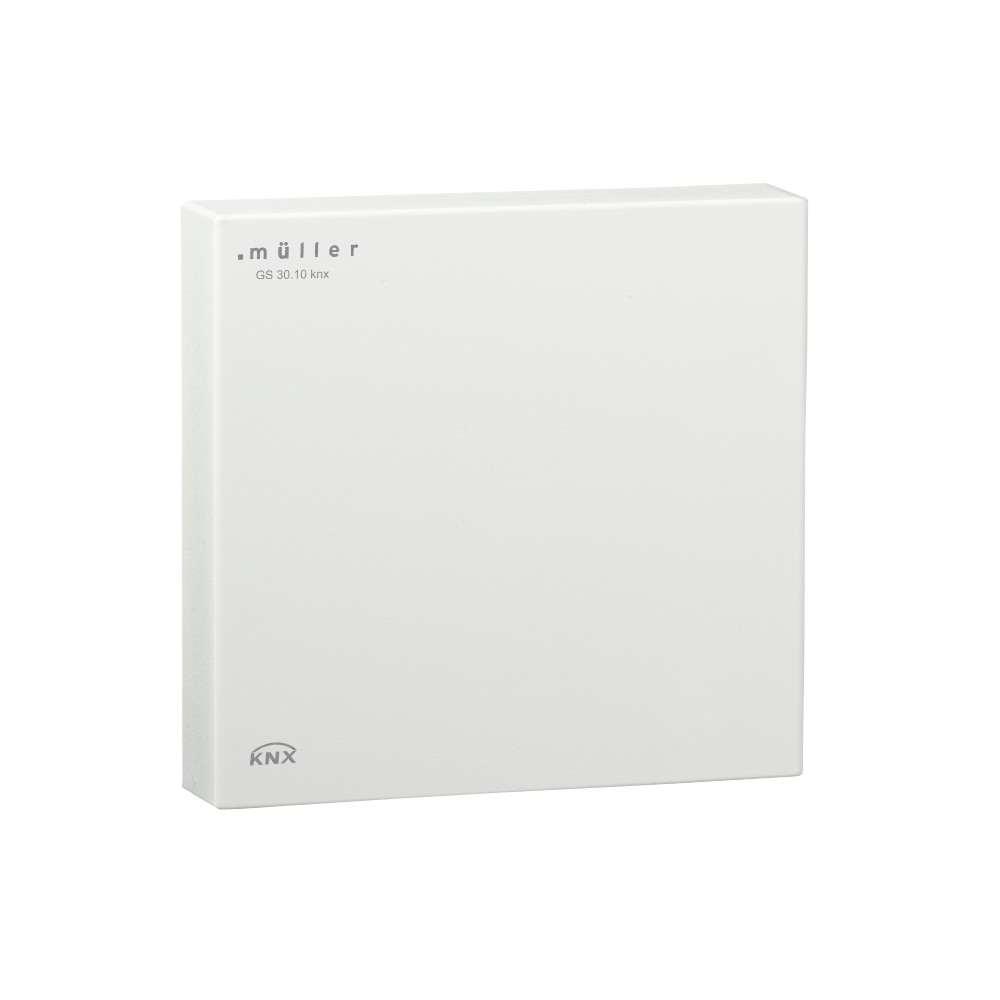

Hugo Müller GS 30.10, KNX Room temperature controller

Product Name: GS 30.10

Manufacturer: Hugo Müller

Manufacturer-Nr.: 23654

Reference: 121200GS3010KNX

GTIN: 4022709236548

Condition: New

The KNX room temperature controller GS 30.10 contains a temperature sensor (0 to 50°C), an air humidity sensor (0 to 100% relative) and 5 binary and analog inputs. The modern design is flat and allows surface mounting. Note: Junction boxes according to german standards

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	80.50 Millimeter
Mounting options	Wall mounting (surface mounted)
Portection rating	IP20
Width	80.50 Millimeter
Height	17.00 Millimeter
Sensortype	Analog Inputs, Humidistat, Digital Inputs, Air Pressure Sensor, Temperature Sensor
Bus system	KNX TP (Twisted Pair)

More info

Downloads

Data sheet (DE)
GS 30.10

Data sheet (EN)
GS 30.10

Manual (DE)
GS 30.10

Manual (EN)
GS 30.10

Note: Junction boxes according to german standards

Room temperature control
Sensors for temperature, humidity and atmospheric pressure measurement
Humidity sensor (Measuring range 0...100 % rel. humidity)
Sensor for temperature measurement
Temperature sensor (Measuring range 0°...+50° C)
5 binary and analogue inputs (e.g. for connecting an external temperature sensor)
Easy installation and mounting
Modern and planar design
Wall mounting
GS 31.10 knx: manual adjustment of set-point temperature (adjustment range ± 3° C, increment 0,5°) via touch panel
