Zennio ZIOMN25V2, multifunction actuator, 2 outputs (16A)

Product Name: MINiBOX 25 v2

Manufacturer: Zennio

Manufacturer-Nr.: ZIOMN25V2

Reference: 030300ZIOMN25V2

GTIN: 8411080788849

Condition: New

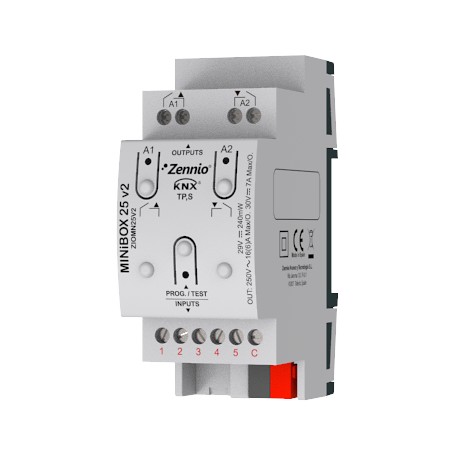

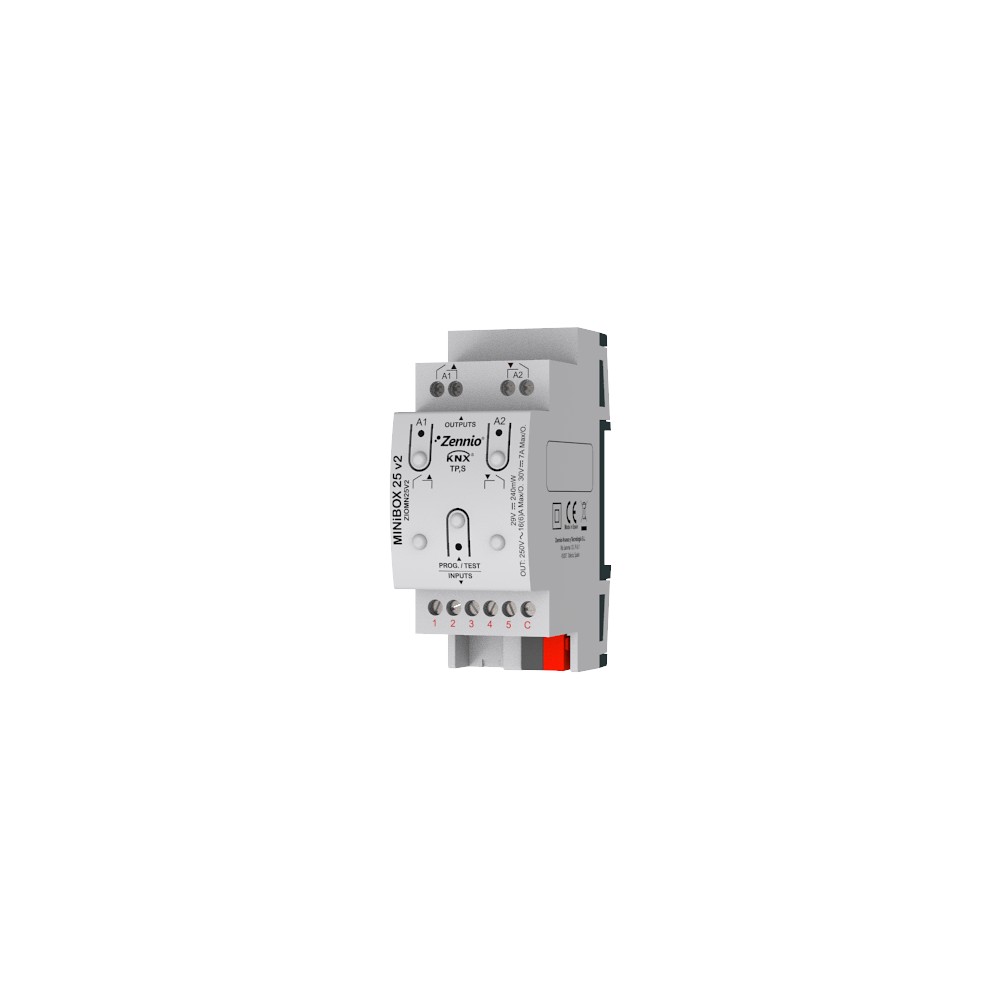

The ZIOMN25V2 is a multifunctional actuator for top hat rail mounting. The actuator has 2 outputs with 16A and 5 inputs each, at the same time the actuator is IP20 protected.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	90.00 Millimeter
Horizontal pitch (HP)	2.0000
Width	67.00 Millimeter
Portection rating	IP20
External power supply	Aucun requis
Voltage (typical)	29.00 Volt
Height	35.00 Millimeter
Input type	analog/digital
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	5.0000
Voltage Range (Max.)	31.00 Volt
Output type	digital
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	2.0000
Power consumption (W)	0.13 Watt
Output Current	16.00 Ampere
Output Power	0.13 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	4.00 Square_millimeter
Connection Type	screwed
KNX Secure	No
