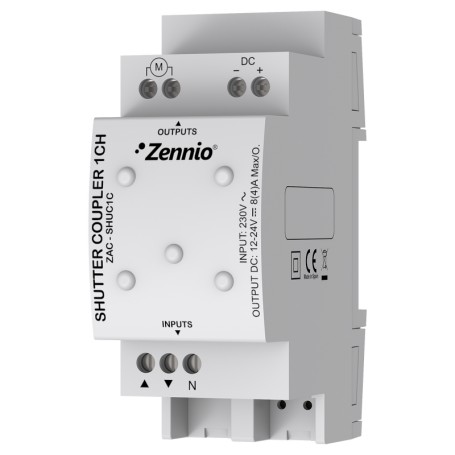

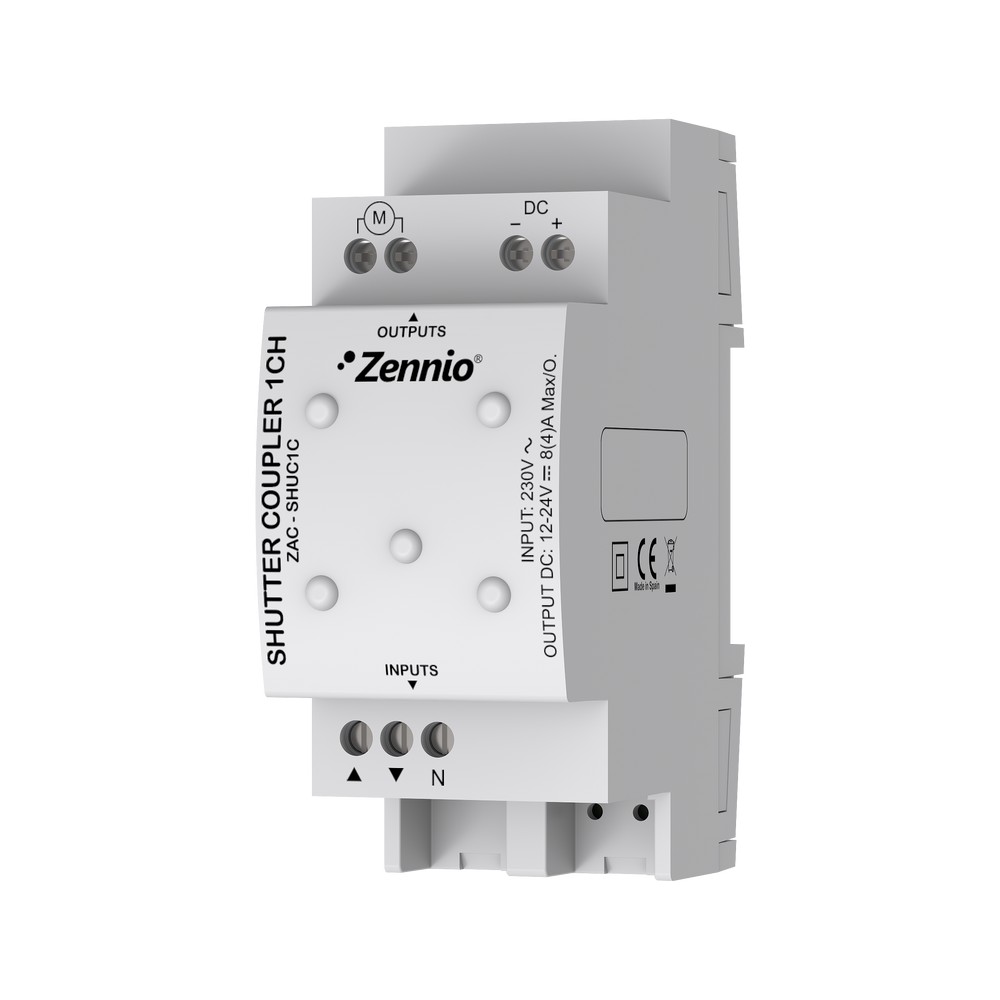

Zennio ZAC-SHUC1C, AC/DC Shutter Coupler, 12/24VDC, 1 channel

Product Name: Shutter Coupler 1CH

Manufacturer: Zennio

Manufacturer-Nr.: ZAC-SHUC1C

Reference: 030300ZACSHUC1C

GTIN: 8411080788894

Condition: New

AC/DC Shutter coupler for one channel

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	95.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	12VDC - 24VDC
Width	40.00 Millimeter
Horizontal pitch (HP)	2.0000
Portection rating	IP20
Height	75.00 Millimeter
Voltage (typical)	24.00 Volt
Input type	Keine
Min. ambient temperature	10.00 Celsius
Voltage Range (Min.)	12.00 Volt
Number of inputs	0.0000
Max. ambient temperature	60.00 Celsius
Voltage Range (Max.)	24.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Output type	analog
Number of outputs	1.0000
Power consumption (W)	0.00 Watt
Output Current	8.00 Ampere
Output Power	192.00 Watt
Actuator Type	AC/DC Shutter Adaptor
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	2.50 Square_millimeter
Connection Type	screwed
KNX Secure	No

More info

Downloads

Data sheet (DE)
Shutter Coupler 1CH

Data sheet (EN)
Shutter Coupler 1CH

Data sheet (FR)
Shutter Coupler 1CH

Shutter Coupler 1CH. Shutter adapter for DIN rail (2 units) AC/DC to convert the shutter channel AC output into a DC output to control 12/24VDC shutters.
