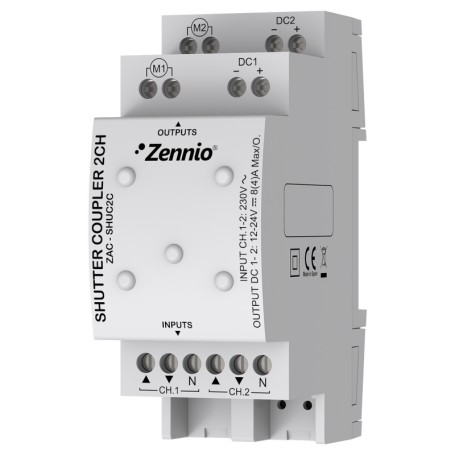

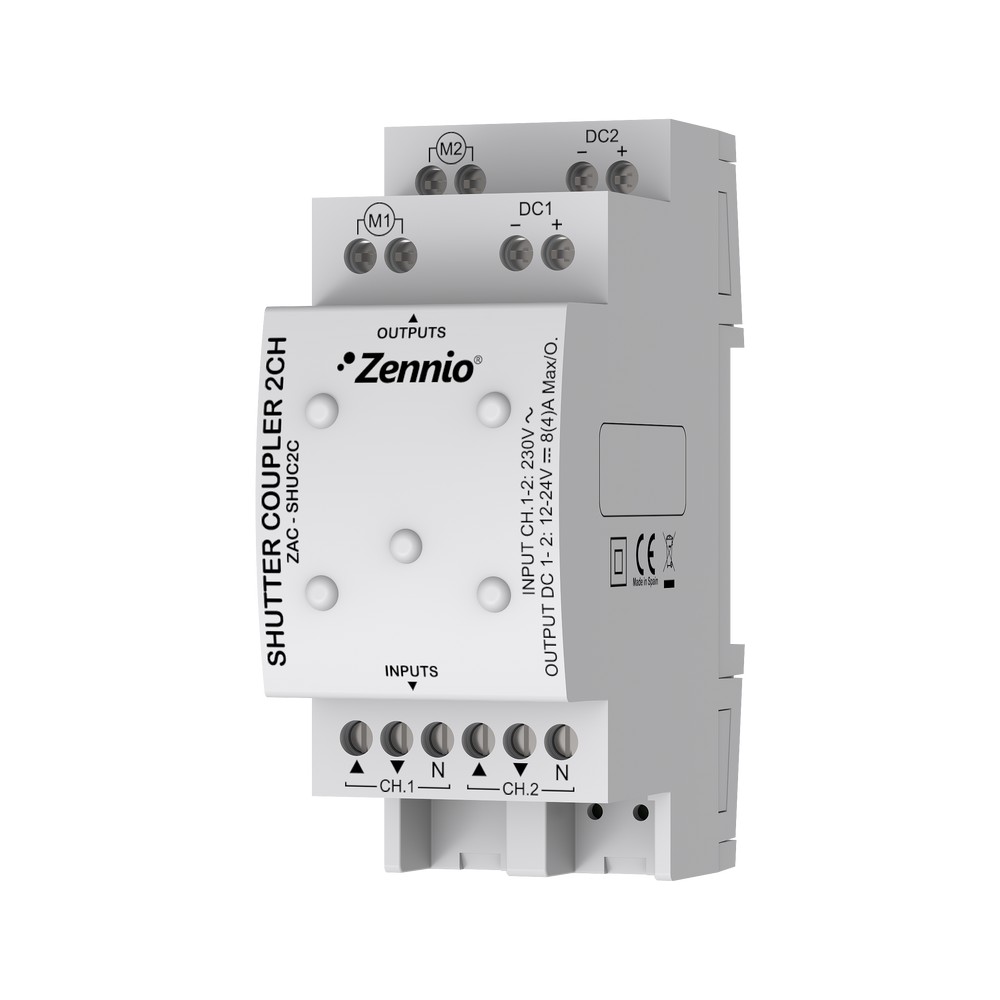

Zennio ZAC-SHUC2C, AC/DC Shutter Coupler, 12/24VDC, 2 channels

Product Name: Shutter Coupler 2CH

Manufacturer: Zennio

Manufacturer-Nr.: ZAC-SHUC2C

Reference: 030300ZACSHUC2C

GTIN: 8411080788900

Condition: New

AC/DC Shutter coupler for up to two channels

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	93.00 Millimeter
Mounting options	DIN-Rail mounting
Portection rating	IP20
External power supply	12VDC - 24VDC
Width	39.00 Millimeter
Horizontal pitch (HP)	2.0000
Voltage (typical)	29.00 Volt
Height	73.00 Millimeter
Input type	Keine
Min. ambient temperature	10.00 Celsius
Max. ambient temperature	60.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Output type	analog
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	2.0000
Power consumption (W)	0.00 Watt
Output Current	8.00 Ampere
Output Power	192.00 Watt
Actuator Type	AC/DC Shutter Adaptor
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	2.50 Square_millimeter
Connection Type	screwed
KNX Secure	No

More info

Downloads

Data sheet (DE)
Shutter Coupler 2CH

Data sheet (EN)
Shutter Coupler 2CH

Data sheet (FR)
Shutter Coupler 2CH

Shutter Coupler 2CH. Shutter adapter for DIN rail (2 units) AC/DC to convert up to two shutter channels AC outputs into DC outputs to control 12/24VDC shutters.
