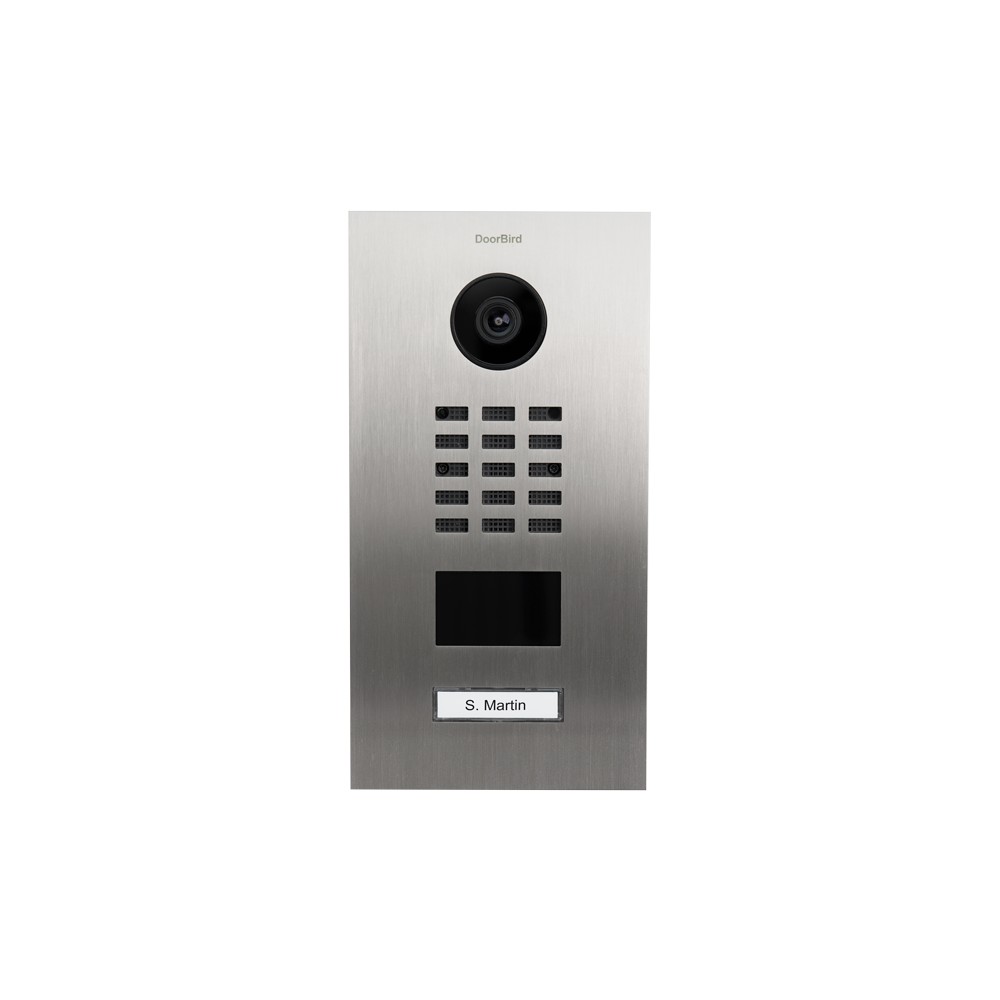

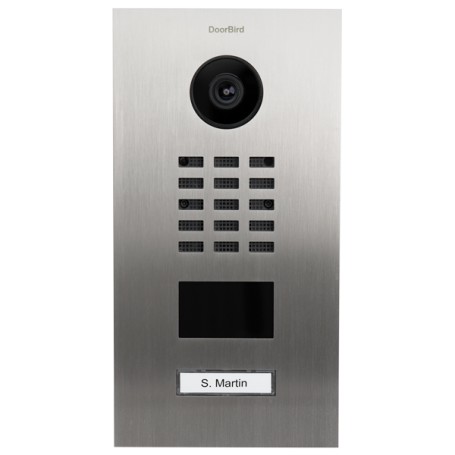

DoorBird D2101V, IP video door intercom, LAN, 1 call button

Data sheet

Mounting options	wall mounting, flush-mounting, Wall mounting (surface mounted)
Length	253.00 Millimeter
Portection rating	IP65
Width	131.00 Millimeter
Voltage (typical)	15.00 Volt
Min. ambient temperature	-25.00 Celsius
Max. ambient temperature	55.00 Celsius
Depth	48.75 Millimeter
Material	Stainless steel / V4A, Stainless steel / V2A
Functions	loudspeakers, RFID, internal microphone, Relais, Nightvision (12x IR-LED) with light sensor, Motiondetector
Color	Brown / RAL 8011, Yellow / RAl 1017, Blue / RAL 5022, Stainless Steel / Brushed V2A, brass, Purple / RAL 4006, Grey / RAL 7011, Brown / RAL 8023, Orange / RAL 2002, Green / RAL 6006, genuine architectural bronze / hard wax sealed, Titanium optics / high gloss polished, Blue / RAL 5002, Grey / RAL 7016, White / RAL 9002, Red / RAL 3000, Green / RAL 6019, Grey / RAL 7033, Grey / DB 703, Yellow / RAL 1003, Blue / RAL 5012, Grey / RAL 9007, Pink / RAL 3014, Grey / RAL 7001, Brown / RAL 8004, Graphite Black (Raven Polar), Yellow / RAL 1016, Blue / RAL 5018, White / RAL 9016, Chrome, Purple / RAL 4005, Grey / RAL 7006, Brown / RAL 8016, Yellow / RAL 1037, Green / RAL 6000, Stainless Steel / Brushed V4A, titanium optics, Pruple / RAL 4009, Grey / RAL 7015, Brown / RAL 8028, Orange / RAL 2004, Green / RAL 6018, Grey / RAL 7023, real brass / burnished, Beige / RAL 1001, Blue / RAL 5004, White / RAL 9006, Red / RAL 3007, Green / RAL 6027, Grey / RAL 7044, Red / RAL 3028, Yellow / RAL 1004, Blue / RAL 5013, White / RAL 9010, Bronze, Purple / RAL 4004, Grey / RAL 7004
Motion sensor	Yes
Number of call buttons	1
RFID	Yes
Operation humidity	10 bis 85% (without condensation)
Ethernet interfaces	1 (10/100 PoE)

More info

Downloads

Data sheet (DE)
D2101V excl. flush-mounted box

Data sheet (EN)
D2101V excl. flush-mounted box

Data sheet (FR)
D2101V excl. flush-mounted box

Manual (DE)
D2101V excl. flush-mounted box

Manual (EN)
D2101V excl. flush-mounted box

Manual (FR)
D2101V excl. flush-mounted box

With your smartphone, you always have the "indoor station" of the network/internet video door intercom D2101 with you - without a range limit.

Easy installation due to connection via LAN and bell wire - When connected to the network, you supply the door intercom system with power via the existing bell wiring via a plug-in power supply unit. The most fail-safe connection is via LAN cable and power supply via PoE (Power over Ethernet).

Note: If you connect the IP video door station via an existing 2-wire bell cable, you will need the separately ordered Ethernet PoE converter A1071.

You can access the door station at any time via your mobile device with an existing Internet connection - worldwide in real time - thanks to free Android and iOS App - Via free DoorBird App (Android/iOS). You can see who is ringing in HDTV resolution and can talk to the person. The visitor history records image, date and time, even if the visitor does not ring the bell but is detected by a motion sensor.

Uninvited guests? - The door station sends a push message to your smartphone when someone is tampering with your front door. You can address the person directly via your smartphone.

Thanks to an Internet connection, you can even forget your key - you can open the front door of your child or partner's home via smartphone when you are on the move or in the office. The prerequisite for this is a front door with a door opener.

Everything under control thanks to a PIR motion sensor with adjustable monitoring range - Set the monitoring range of the sensor conveniently in 1 m steps using an app - ranges of up to 10 m are possible.

More comfort through RFID - The door station has a built-in RFID reader. Family members can open the front door with an RFID transponder. For security reasons, the reading area is limited to 3 cm. The prerequisite for this is a front door with a door opener.
