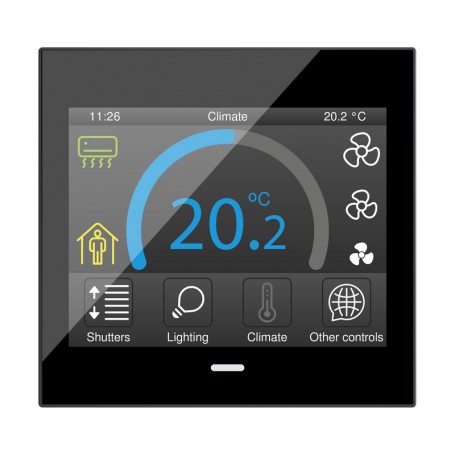

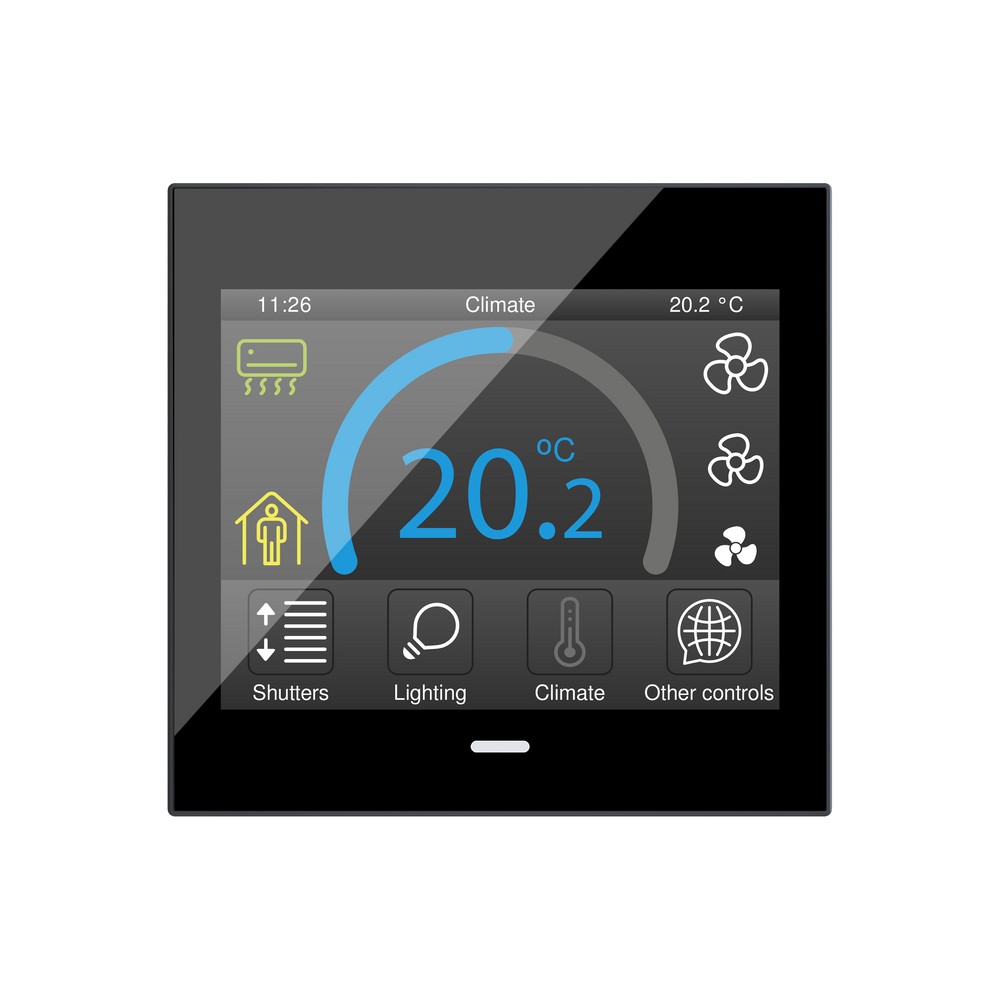

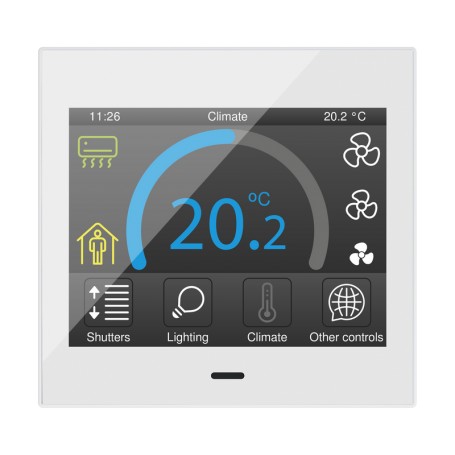

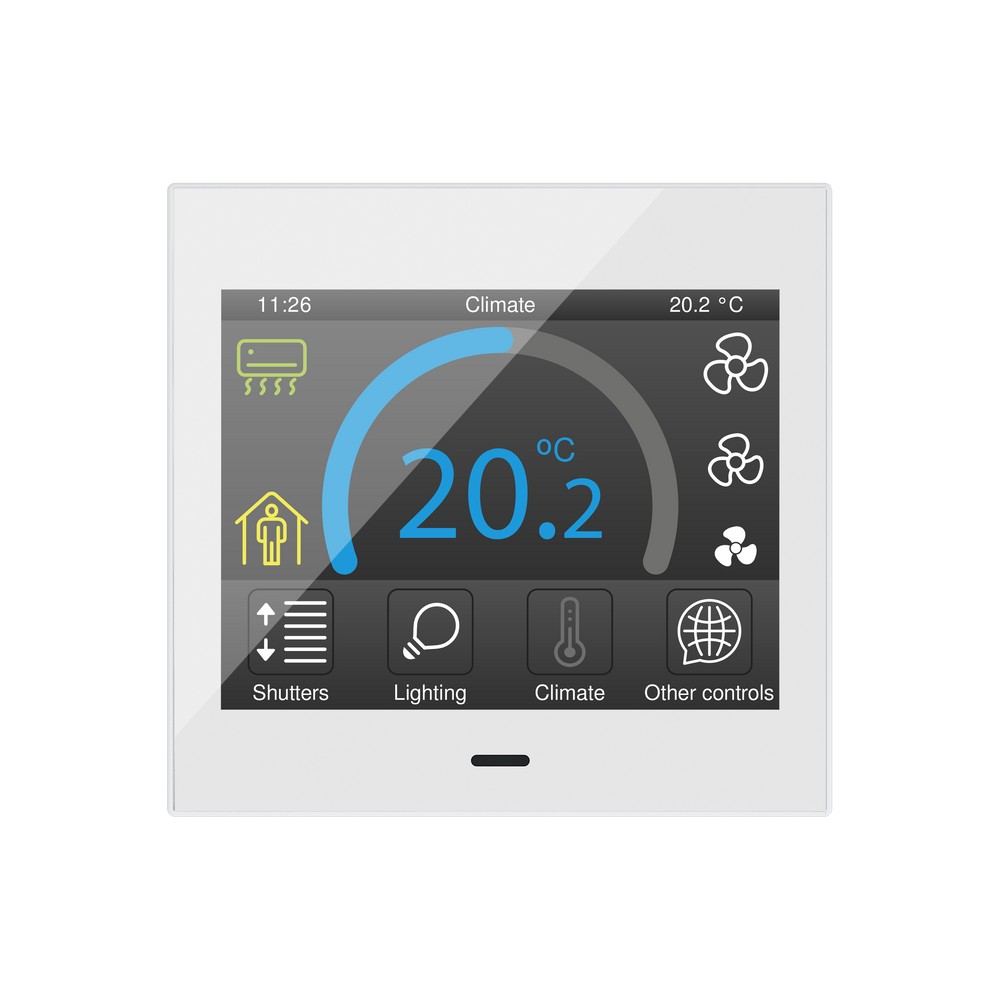

Zennio Z35 v3, Capacitive touch panel with a 3.5” display and humidity probe

Z35 v3

Zennio

New

Capacitive touch panel with a backlit 3.5” display, proximity sensor, internal temperature probe, internal humidity sensor and thermostats for two independent areas. It is able to contain up to 56 controls/indicators, distributed in up to 7 pages with a navigation menu. A screensaver with date, time and/or temperature is set when the touch panel is not in use and the menu is shown automatically when the user approaches thanks to the proximity sensor. Its brightness is regulated by the ambient luminosity sensor included. In addition, it incorporates 4 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. It is compatible with KNX Secure. Available in White, Anthracite, Silver and Champagne. Accessories: temperature probe, motion sensor.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 86.10 Millimeter
External power supply 21 - 31 VDC
Portection rating IP20
Width 82.10 Millimeter
Height 34.60 Millimeter
Voltage (typical) 29.00 Volt
Min. ambient temperature 0.00 Celsius
Max. ambient temperature 55.00 Celsius
Bus system KNX TP (Twisted Pair)
