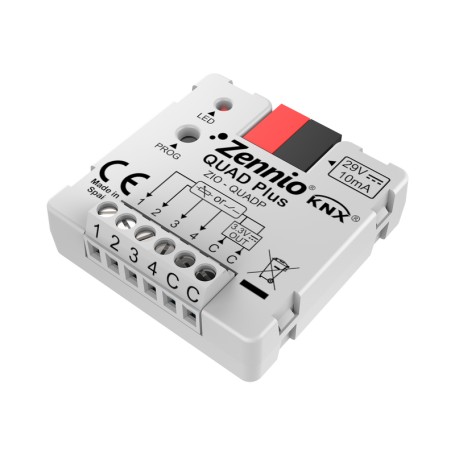

Zennio ZIO-QUADP, KNX analog/digital input, flush mounting

Zennio

ZIO-QUADP

030300ZIOQUADP

New

Zennio ZIO-QUADP is a KNX analog/digital input for flush mounting. The Zennio Quad Plus has 4 multifunctional inputs to which you can connect conventional push-buttons, temperature sensors or motion detectors.

More details

Prices are only visible for registered customers. Create an account now.

Download

Data sheet

Length80.00 Millimeter
Mounting optionsDIN rail mounting or installation in flush mounting box
External power supplyAucun requis
Width64.00 Millimeter
Horizontal pitch (HP)1.0000
Height24.00 Millimeter
Portection ratingIP20
Voltage (typical)29.00 Volt
Input typeanalog/digital
Voltage Range (Min.)21.00 Volt
Number of inputs4.0000
Voltage Range (Max.)31.00 Volt
Résponse devant une récupération de perte d'alimentation KNXDatensicherung
Number of outputs0.0000
Power consumption [W]0.17 Watt
Output Current0.00 Ampere
Output Power0.00 Watt
SensortypeAnalog Inputs, Digital Inputs
Operation humidity5 to 95% RH (without condensation)
Recommended cable section2.50 Square_millimeter
Bus systemKNX TP (Twisted Pair)
Connection TypeTerminal block, screwed
Min. ambient temperature0.00 Celsius
Max. ambient temperature55.00 Celsius

More info

Zennio QUAD Plus. Input module with 4 analog-digital inputs for standard mounting box. Analog/digital inputs can be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Four room thermostats for heating/cooling control systems included.

Accessories: Temperature probes and motion sensor.
