Hugo Müller 674 730 RF, KNX RF (E mode) Switch and shutter actuator

674 730 RF

Hugo Müller

674 730 RF

121210674730RF

4022709232847

New

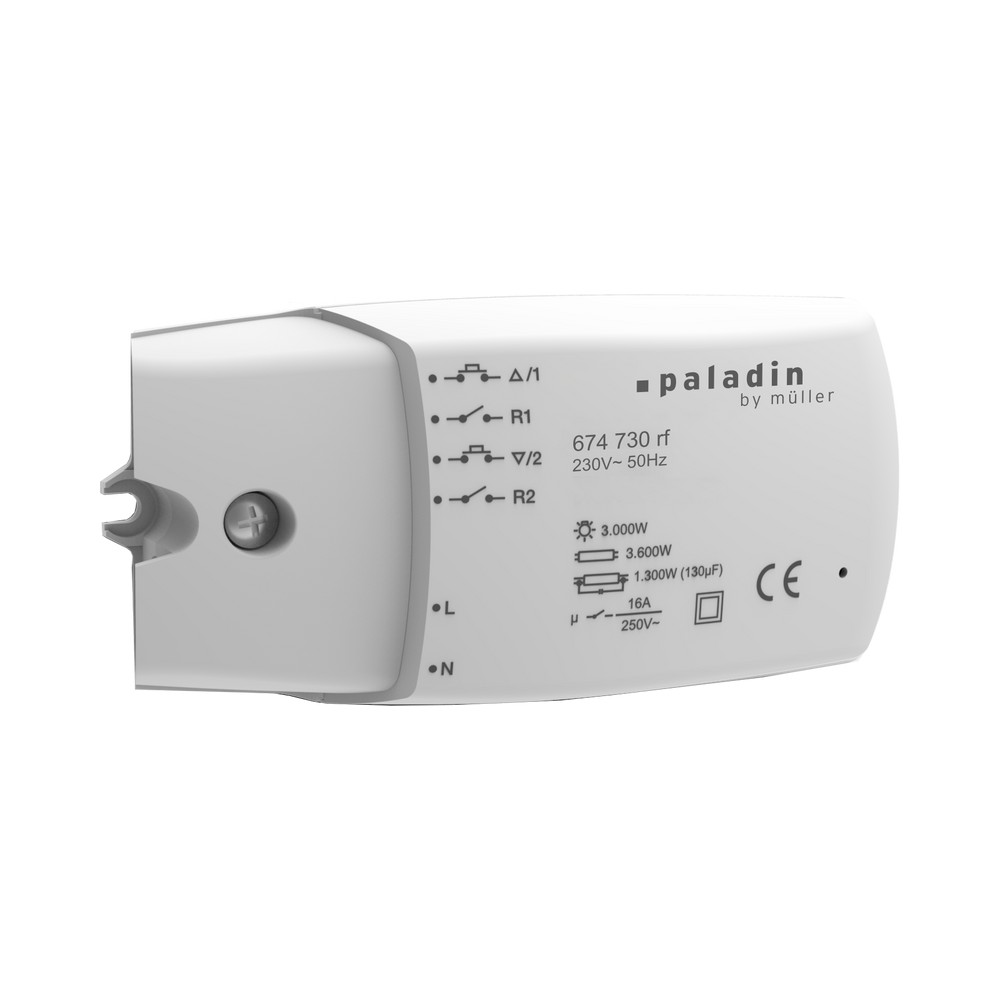

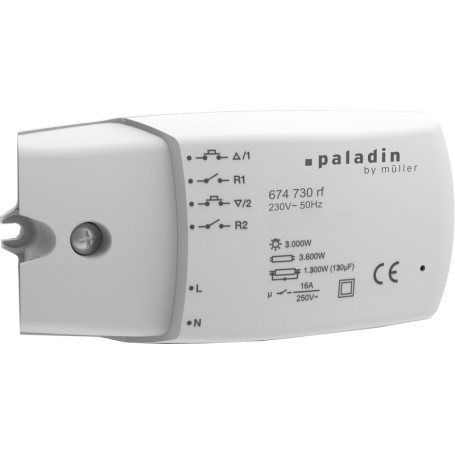

Switching actuator / blinds actuator paladin 674 730 rf, KNX-RF compatible products

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Mounting options Ceiling mounting (cavity ceiling)
Length 52.00 Millimeter
External power supply 230VAC
Width 108.00 Millimeter
Portection rating IP20
Voltage (typical) 250.00 Volt
Height 34.00 Millimeter
Min. ambient temperature 5.00 Celsius
Number of inputs 2.0000
Max. ambient temperature 45.00 Celsius
Voltage Range (Min.) 0.00 Volt
Voltage Range (Max.) 0.00 Volt
Résponse devant une récupération de perte d'alimentation KNX no details
Power consumption (W) 0.00 Watt
Output Current 16.00 Ampere
Output Power 0.00 Watt
Actuator Type Switch Actuator, Shutter Actuator
Operation humidity not specified
Bus system KNX RF compatible (E-Mode)
Connection Type screwed
KNX Secure No

More info

  • Switching actuator 2-channels / blind actuator 1-channel
  • Functions: Switching 2-channels (on/off), blinds control 1-channel (up/down)
  • Breaking capacity 230V 16A 50Hz / 2x5A at cos φ=0,5
  • 2 external inputs for additional, wired push buttons
  • RF-repeater function included
  • Compact housing
  • Recessed ceiling mounting
  • Protection class IP20
  • KNX-RF compatible
