Hugo Müller 683 730 RFS, KNX RF (S-Mode) switching actuator, 1-channel

683 730 RFS

Hugo Müller

23922

121210683730rfs

4022709239228

New

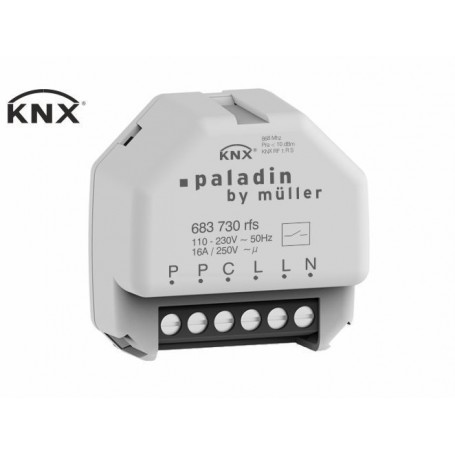

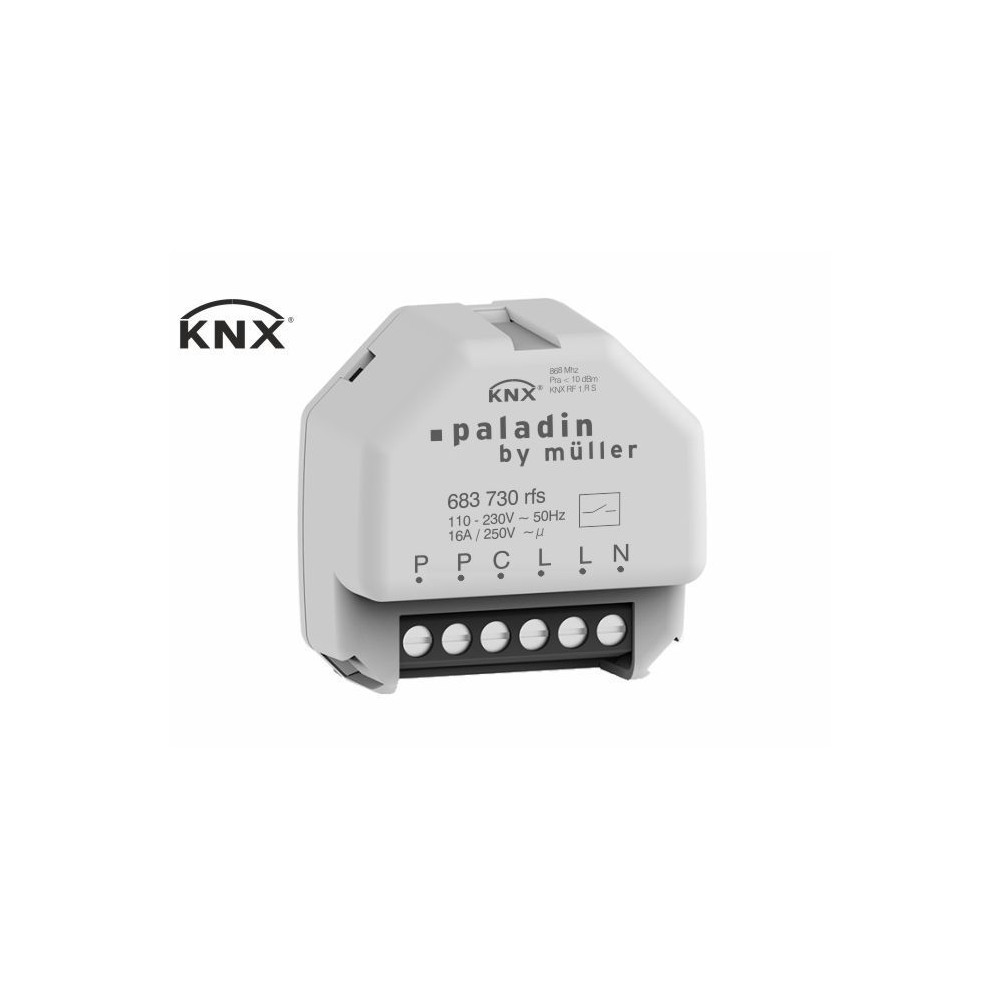

The Paladin 683 730 rfs, (S-Mode) by Hugo Müller is a switching actuator with one channel for building system technology.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 46.00 Millimeter
Mounting options flush-mounting
External power supply 24VAC
Width 46.00 Millimeter
Portection rating IP20
Height 30.00 Millimeter
Voltage (typical) 250.00 Volt
Min. ambient temperature 10.00 Celsius
Number of inputs 1.0000
Voltage Range (Min.) 0.00 Volt
Max. ambient temperature 45.00 Celsius
Voltage Range (Max.) 0.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 1.0000
Power consumption (W) 0.00 Watt
Output Current 16.00 Ampere
Output Power 0.00 Watt
Actuator Type Switch Actuator
Operation humidity not specified
Bus system KNX RF (S-Mode)
Connection Type Terminal block, screwed
KNX Secure No
