Zennio ZVI-SQTMDD, KNX room controller, design, thermostat, display

Product Name: SQTMDD Customized

Manufacturer: Zennio

Manufacturer-Nr.: ZVI-SQTMDD

Reference: 030360ZVISQTMDD

GTIN: 8411080800343

Condition: New

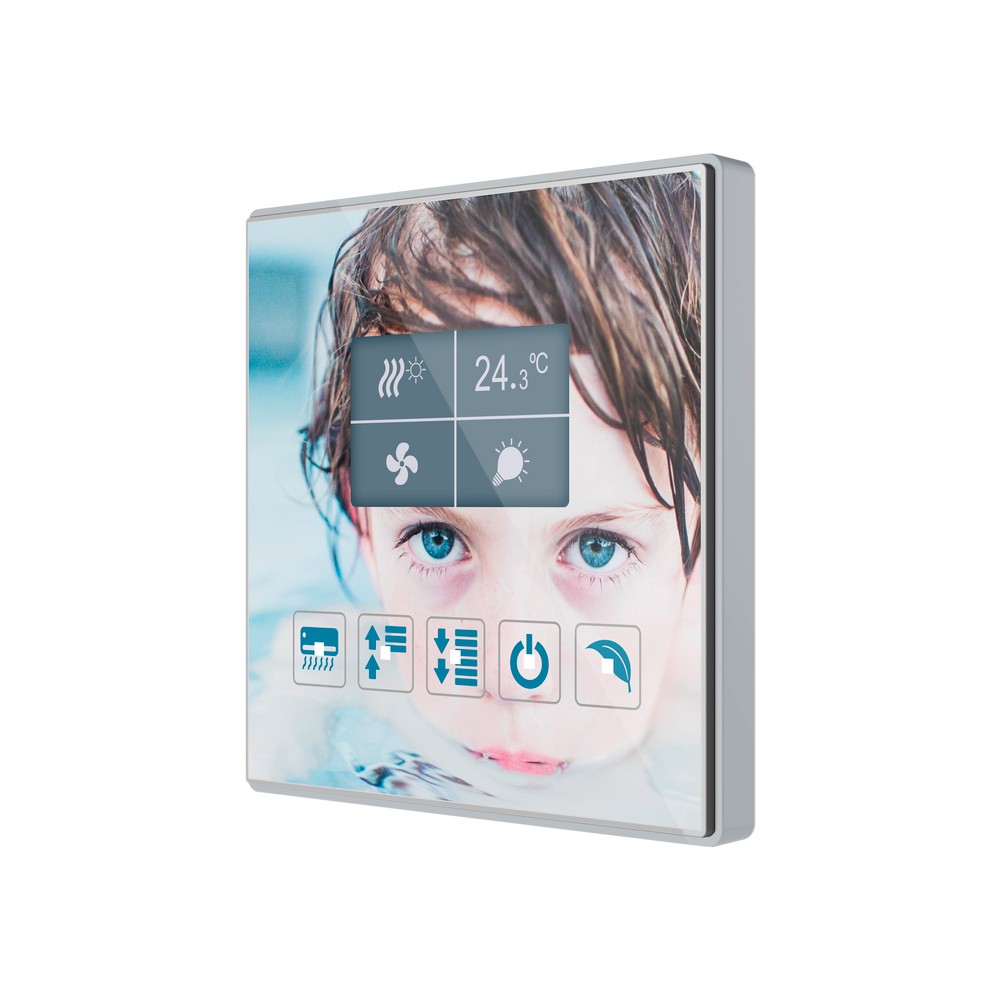

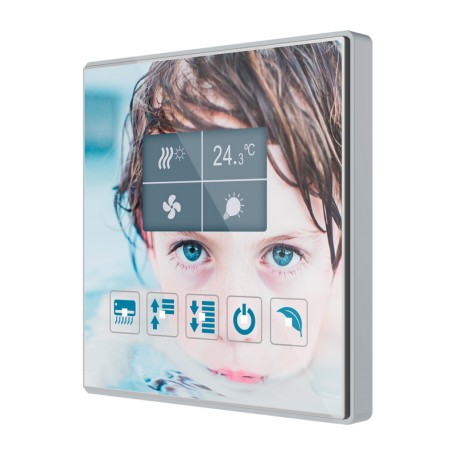

The Square TMD-Display (ZVI-SQTMDD), is a KNX touch switch with 5 buttons and a 1.8" display. The temperature sensor with thermostat function is integrated. 2 digital inputs available. The design can be personalized. Polycarbonate, aluminium frame.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	112.00 Millimeter
Width	118.00 Millimeter
Portection rating	IP20
Voltage (typical)	29.00 Volt
Resolution	128 x 64
Height	47.00 Millimeter
Input type	analog/digital
Min. ambient temperature	5.00 Celsius
Number of inputs	2.0000
Max. ambient temperature	40.00 Celsius
Material	Aluminium
Frame Color	Aluminium
Color	Customized Design
Buttons	5
Operation humidity	3 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal

More info

Downloads

Data sheet (DE)
SQTMDD Customized

Data sheet (EN)
SQTMDD Customized

Data sheet (FR)
SQTMDD Customized

Manual (EN)
SQTMDD Customized

Manual (FR)
SQTMDD Customized

The Square TMD-Display is a capacitive knx touch switch with 5 multifunction buttons and 1.8” backlighted display.

The totally customizable touch panel to cause the desired aesthetic impression in any ambience. Everyone can create unique compositions, which could include images, icons, texts or logos. This customization is printed on a high-strength tempered glass with a polycarbonate frame to finish off the author’s work.

The Square TMD-Display allows selecting the function of each button and indicators shown in the display.

Square TMD-Display also includes thermostat function, internal temperature probe and two analog/digital inputs.

Accessories: temperature probe and motion sensor.
