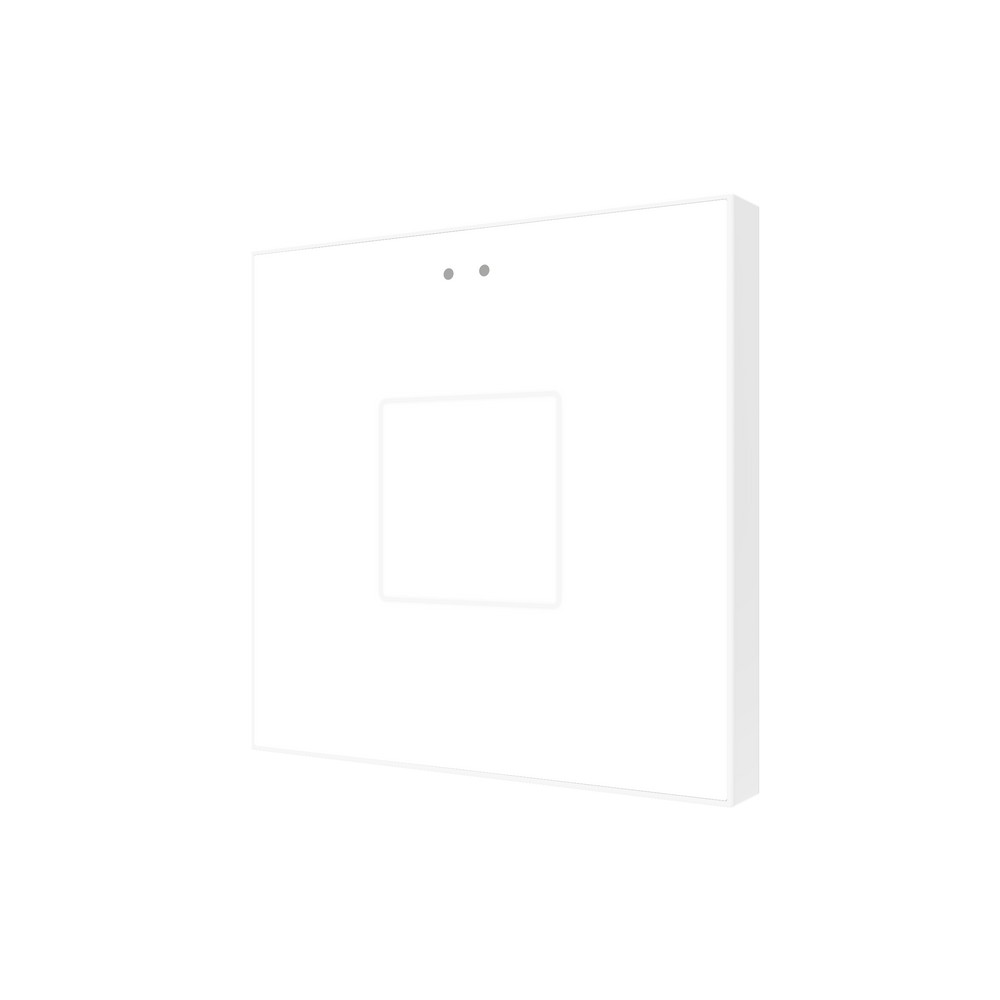

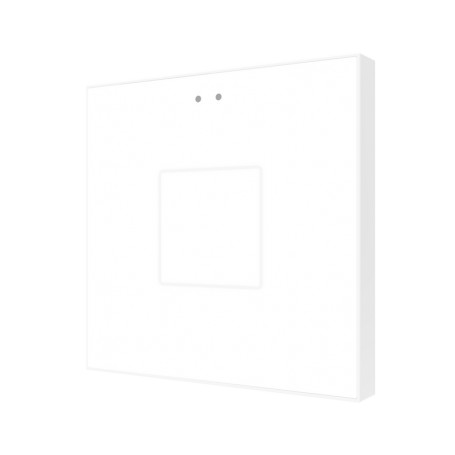

Zennio Flat ZVI-F, KNX Touch Switch, Thermostat, 2 Entries

Product Name: Flat

Manufacturer: Zennio

Reference:

Condition: New

Backlighted capacitive KNX touch switches of the Zennio Flat family, with proximity sensor, flat design (9mm) and total customization. Everyone can create unique compositions, including images, icons, texts or logos, which are printed on a high-strength tempered glass.

More details

Prices are only visible for registered customers. Create an account now.

Buttons

Color

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	81.00 Millimeter
Portection rating	IP20
Width	81.00 Millimeter
Height	28.00 Millimeter
Voltage (typical)	29.00 Volt
Input type	analog/digital
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	45.00 Celsius
Number of inputs	2.0000
Material	Polycarbonat
Frame Color	Polycarbonate
Color	Black, White / Glossy, White, Silver
Buttons	4, 1, 6, 2
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)

More info

There are models with 1, 2, 4 or 6 configurable buttons and backlighted icons, which regulate their brightness with the included ambient luminosity sensor and attenuate when the user is not detected by the proximity sensor. The Flat Series KNX touch switches 1/2/4/6-fold incorporates an internal temperature probe and thermostat, as well as 2 analog-digital inputs that may be configured for potential-free sensors and push buttons, temperature probes or motion sensors.

Available models: Standard White/Gloss White/Black/Silver or Customized. Accessories: temperature probe, motion sensor.

The Zennio Flat series is a KNX multifunction touch switch with integrated proximity sensor, brightness sensor and backlit buttons.

The KNX switches are available in reduced size and weight, optionally with one, two, four or six capacitive touch buttons (depending on the user's requirements). The (configurable) LED backlight shows the user's current input and/or the current status of the controller.

The Flat Series is a fully customizable solution for the control of rooms where a user needs to control air conditioning, lighting, blinds, scenes, etc.

The versatility of the switch function is complemented by the two built-in analog/digital inputs, the internal temperature sensor and thermostat function, as well as an elegant and fully customizable front glass design - customers can choose their switch symbols, texts and colors, and even personalize the background with their images, logos, etc.

The most outstanding features of the KNX Flat push buttons are:

Fully customisable design of the front glass.
1/2/4/6 touch buttons, which can operate as individual or pair controls
Horizontally or vertically-oriented configuration (only available for the twobutton and six-button models)
Light indicator (LED) for every button
Buzzer for an audible acknowledgement of user actions (with the possibility of disabling it either by parameter or by object)
Possibility of locking / unlocking the touch panel through binary orders or scenes
Welcome Back object (binary or scene) which is sent to the KNX bus when a pulsation is detected after a certain period (configurable) of intactivity
Built-in temperature sensor
Ambient luminosity sensor for brightness automatic adjustment
Proximity sensor for quick start
Two analogue/digital inputs (for motion detectors, temperature probes, additional switches, etc.)
Thermostat function
Heartbeat or periodical “still-alive” notification
