Homematic IP Wired bus cable adapter

Homematic IP Wired bus cable adapter #153390A0

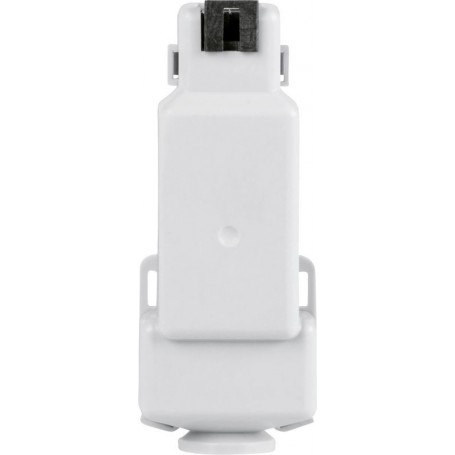

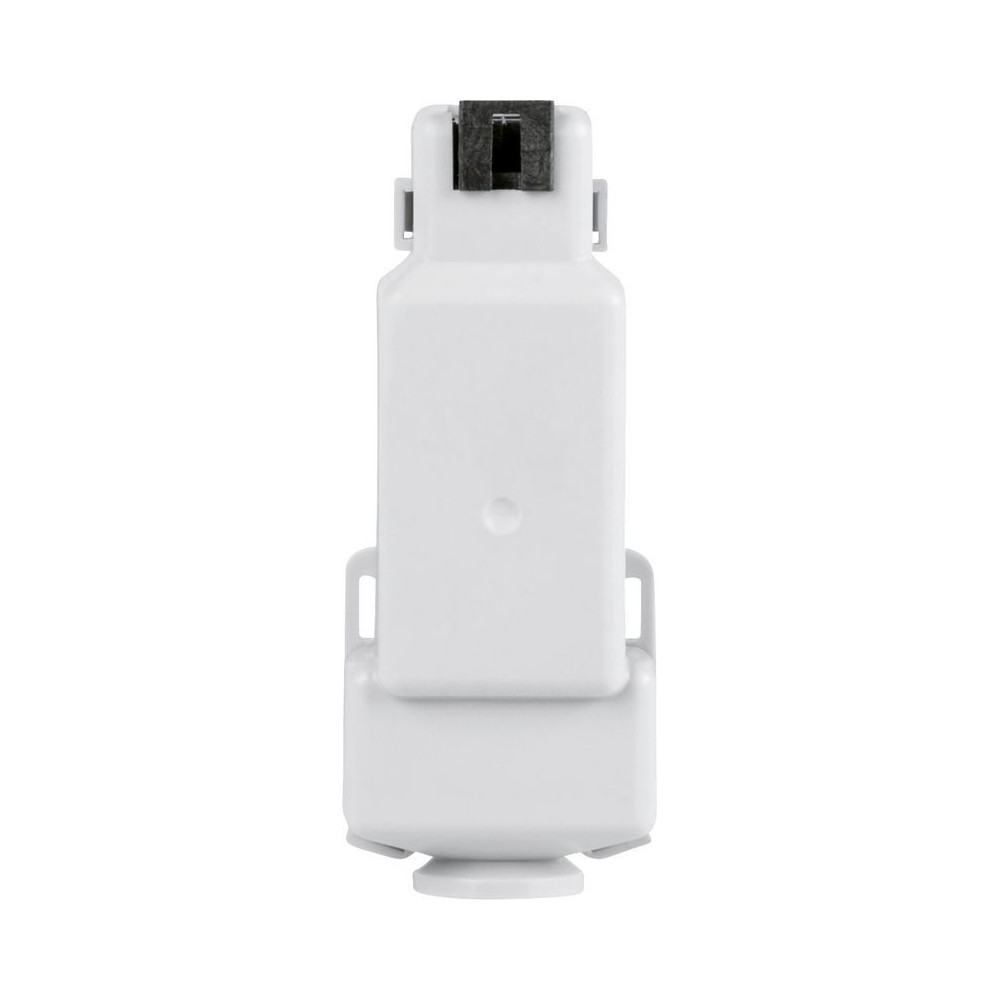

The Homematic IP Wired bus cable adapter is part of the Homematic IP smart home system and enables the transition from bus cables with MOLEX Ultra-Fit connectors to individual bus cables without connectors. Homematic IP Wired flush-mounted devices, which are distributed throughout the house, can also be connected to the Homematic IP Wired system using the bus cable adapter.

For this purpose, the adapter has a socket suitable for the Homematic IP Wired system on one side of the device, while the other side has four terminal connections for cables with a cross-section of up to 0.2 - 1.5 mm². If required, the adapter can be attached directly to the top-hat rail. The Wago top-hat rail adapter (Wago Art. 209-137), which can be attached to both the adapter and the top-hat rail without tools, is ideal for this purpose.

Further product information can be found at www.homematic-ip.com. A detailed user manual for the Homematic IP system can be found in the download area.

Product features

1. enables the transition from bus cables with MOLEX Ultra-Fit connectors to individual bus cables without connectors.

2. Homematic IP Wired flush-mounted devices, which are distributed throughout the house, can be connected to Homematic IP Wired DIN rail devices in the electrical distribution board using the Wired bus cable adapter.

3. has four labelled terminal connections for cables from 0.2 to 1.5 mm².

4. can be attached to top-hat rails without tools using a separate mounting adapter.
