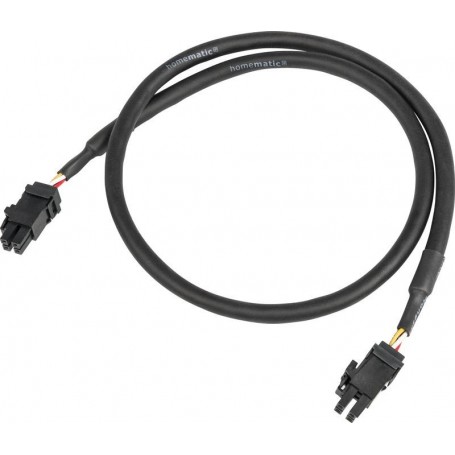

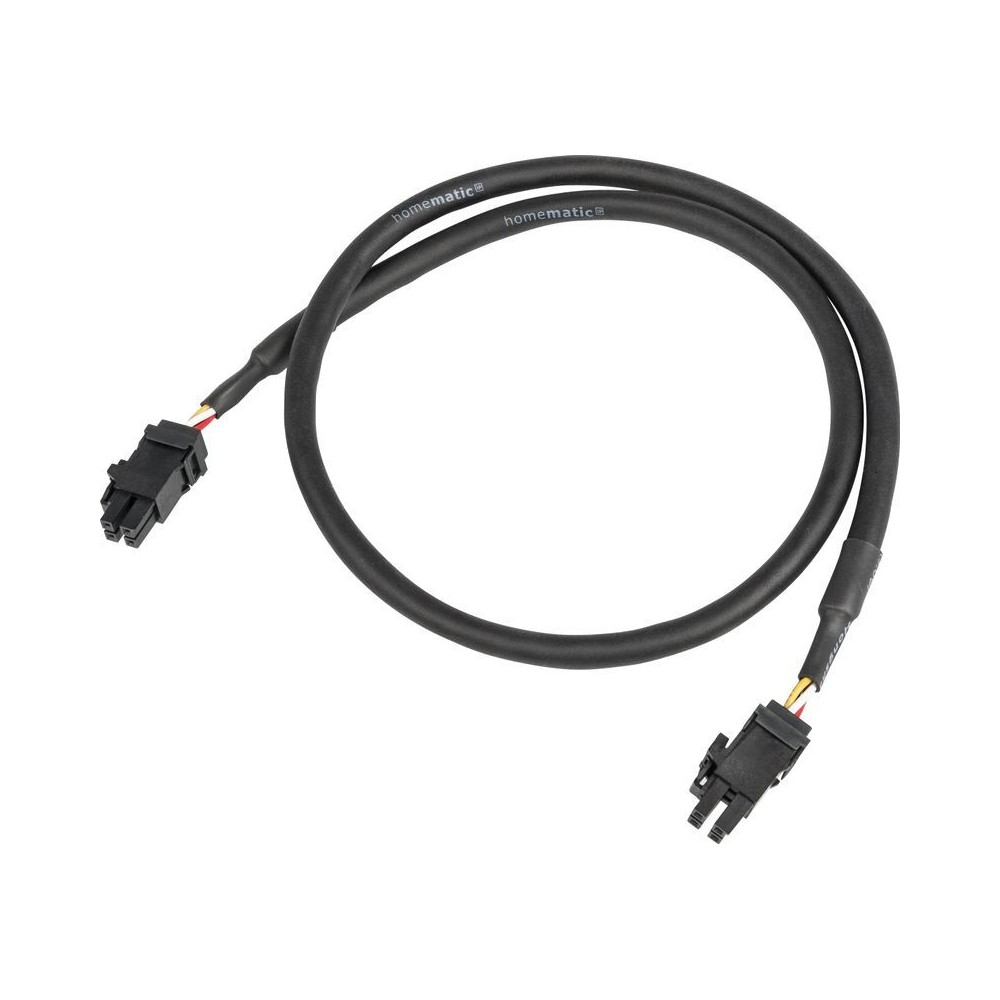

Homematic IP Wired bus connection cable – 62 cm

Homematic IP Wired bus connection cable #153712A2 (62 cm)

The Homematic IP Wired Bus Connection Cables enable the secure connection of Homematic IP Wired DIN rail devices within circuit distributors.

Efficient bus wiring in the distribution board and the safe combination of 230/400 V and bus voltages (typ. 24 V) pose problems for many bus installations. Installation in compliance with the standardised minimum distances between the bus and mains voltage-carrying cables is often a major challenge. Homematic IP Wired minimises the risk for specialist installers, who can even be held liable in the event of damage. MOLEX Ultra-Fit connectors ensure particularly quick and easy installation and offer additional protection against wiring errors. The Homematic IP bus connection cables are provided with 4 kV-resistant cable insulation and can therefore be safely laid directly next to cables carrying mains voltage.

Available in lengths of 10 cm, 22 cm, 39 cm and 62 cm, the cables with 0.5 mm² cores are already equipped with the required MOLEX Ultra-Fit plug ex works and are ready for immediate use. The cable lengths are ideal for the various connection sections in the distribution system. The 10 cm can be used to connect devices. The longer versions are intended for the routes between two rows of top-hat rails, from the end of the top-hat rail to the start and between the start and end of a field in the electrical distribution board.

Further product information is available at www.homematic-ip.com. A detailed user manual for the Homematic IP system can be found in the download area.

Product features

1. enable the safe and fast connection of Homematic IP Wired top-hat rail devices within circuit distribution boards.

2. thanks to the special insulation, the cables are designed for a test voltage of 4 KV, which is why they can be safely laid directly next to mains voltage cables.

3. available in lengths of 10, 22, 39 and 62 centimetres.

4. the cables consist of four 0.5 mm² cores.
