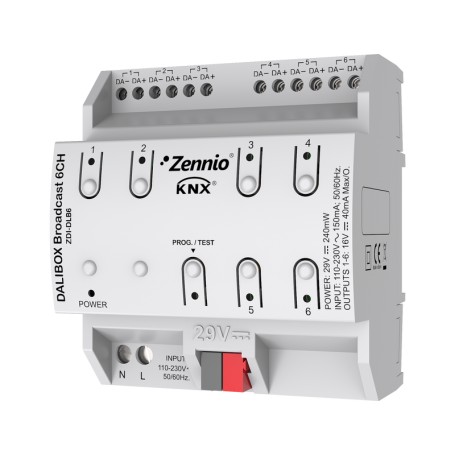

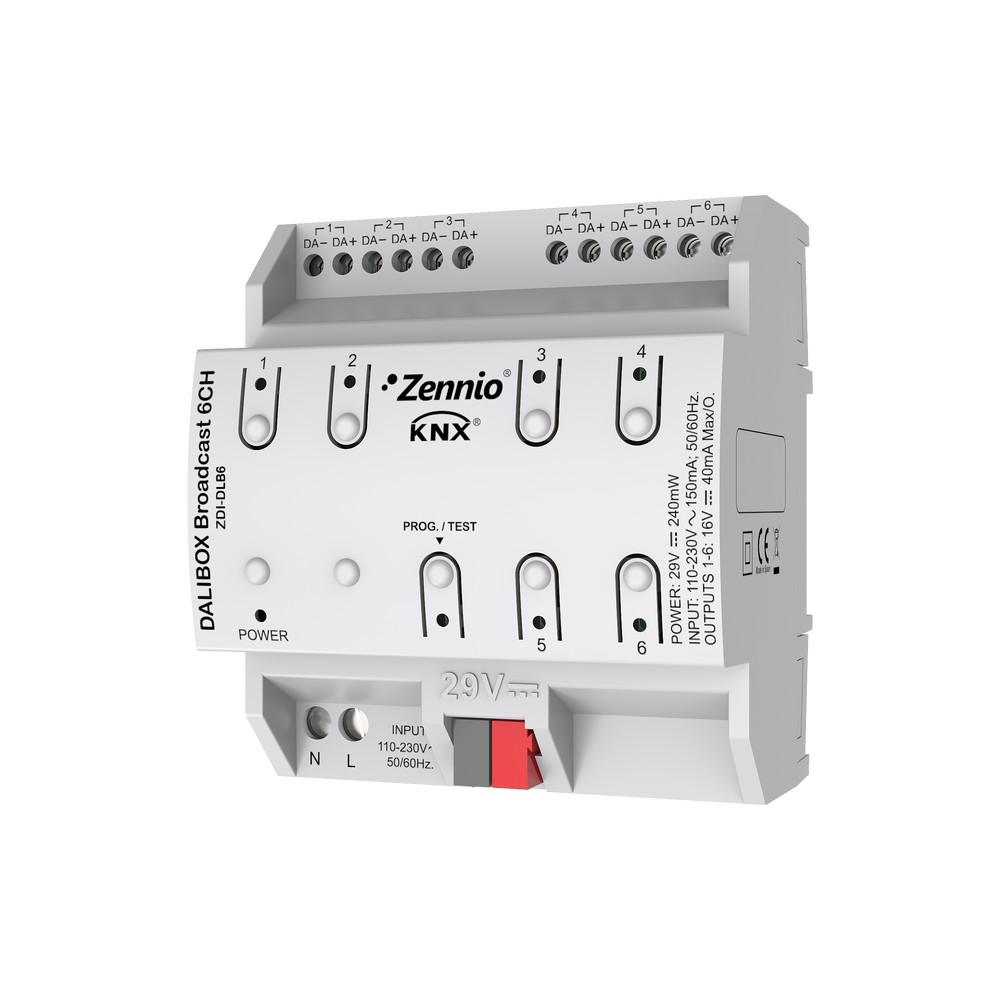

Zennio ZDI-DLB6, KNX Dali Broadcast Interface, 6 Channels

Product Name: DALIBOX Broadcast 6CH

Manufacturer: Zennio

Manufacturer-Nr.: ZDI-DLB6

Reference: 030300ZDIDLB6

GTIN: 8411080790804

Condition: New

KNX DALI Interface to control up to 6 channels of up to 20 ballasts with broadcast commands, with the possibility to control up to 10 scenes/sequences for each channel. It allows manual control and status indicator LEDs for each channel.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	97.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	230VAC
Horizontal pitch (HP)	4.5000
Width	97.00 Millimeter
Portection rating	IP20
Voltage (typical)	29.00 Volt
Height	95.00 Millimeter
Min. ambient temperature	0.00 Celsius
Input type	Keine
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Max. ambient temperature	45.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Output type	digital
Number of outputs	6.0000
Power consumption (W)	0.20 Watt
Output Current	0.04 Ampere
Output Power	0.00 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	2.50 Square_millimeter
Connection Type	screwed
KNX Secure	No
