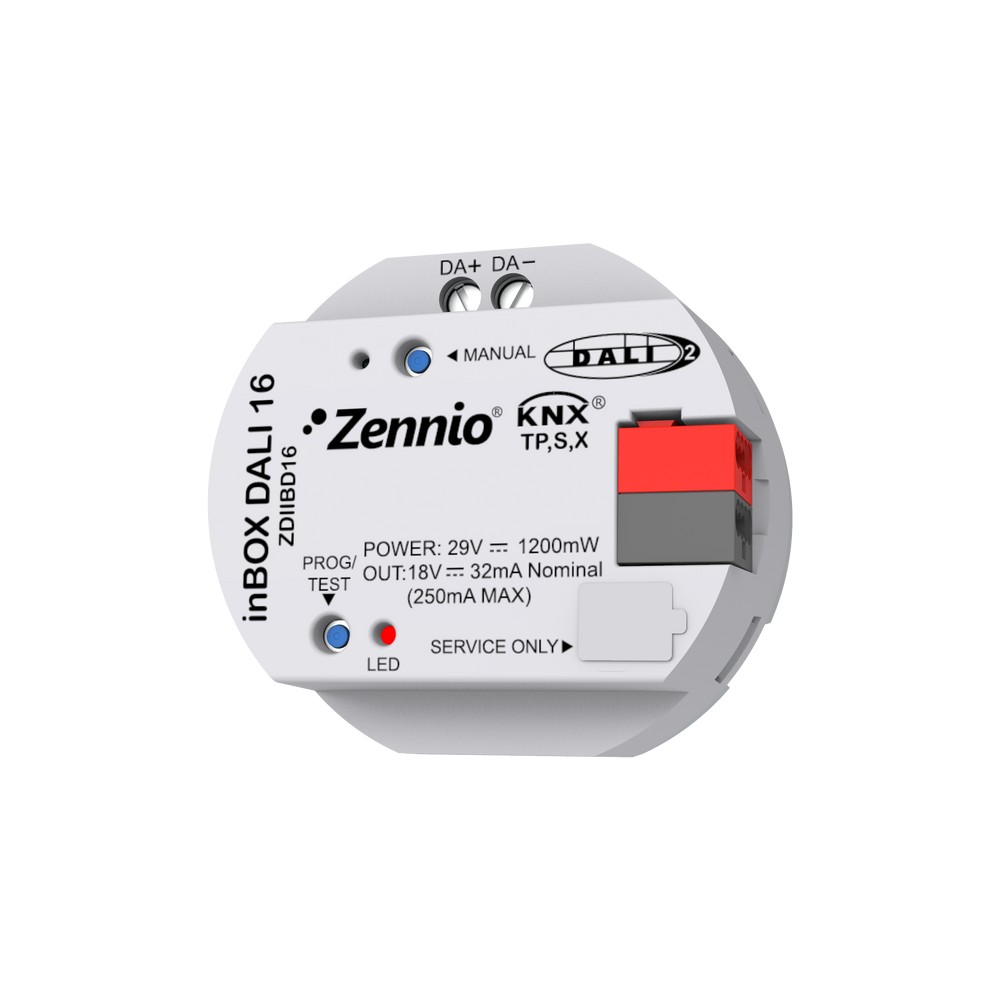

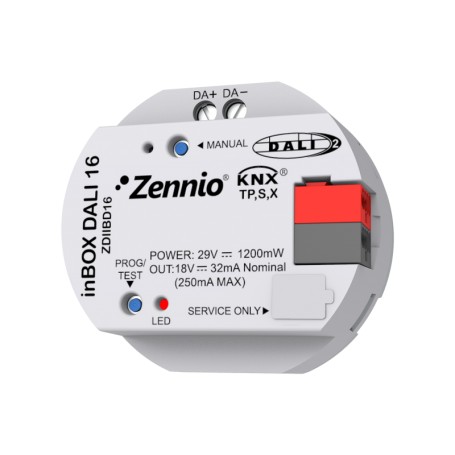

KNX-DALI Interface for flush mounting for up to 16 ballasts and 16 groups - 1 channel

Product Name: inBOX DALI 16

Manufacturer: Zennio

Manufacturer-Nr.: ZDIIBD16

Reference: B-003-154208

GTIN: 8435740188817

Condition: New

KNX-DALI Interface for flush mounting to control up to 16 DALI independent ballasts, simply with KNX power supply, with no need of auxiliary power supply. It includes ETS DCA for easy start up (ballasts, groups and replacement addressing). Ballasts can be associated in up to 16 groups, or individually. Possibility to manually switch all dimming points of the channel. It allows to be used to control emergency lightning (DT1) or color ballasts (DT8). Device certified as Single Master DALI-2 controller. It is compatible with KNX Secure.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	flush-mounting
External power supply	Aucun requis
Portection rating	IP20
Height	26.60 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Power consumption (W)	1.15 Watt
Output Current	0.03 Ampere
Output Power	0.58 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
