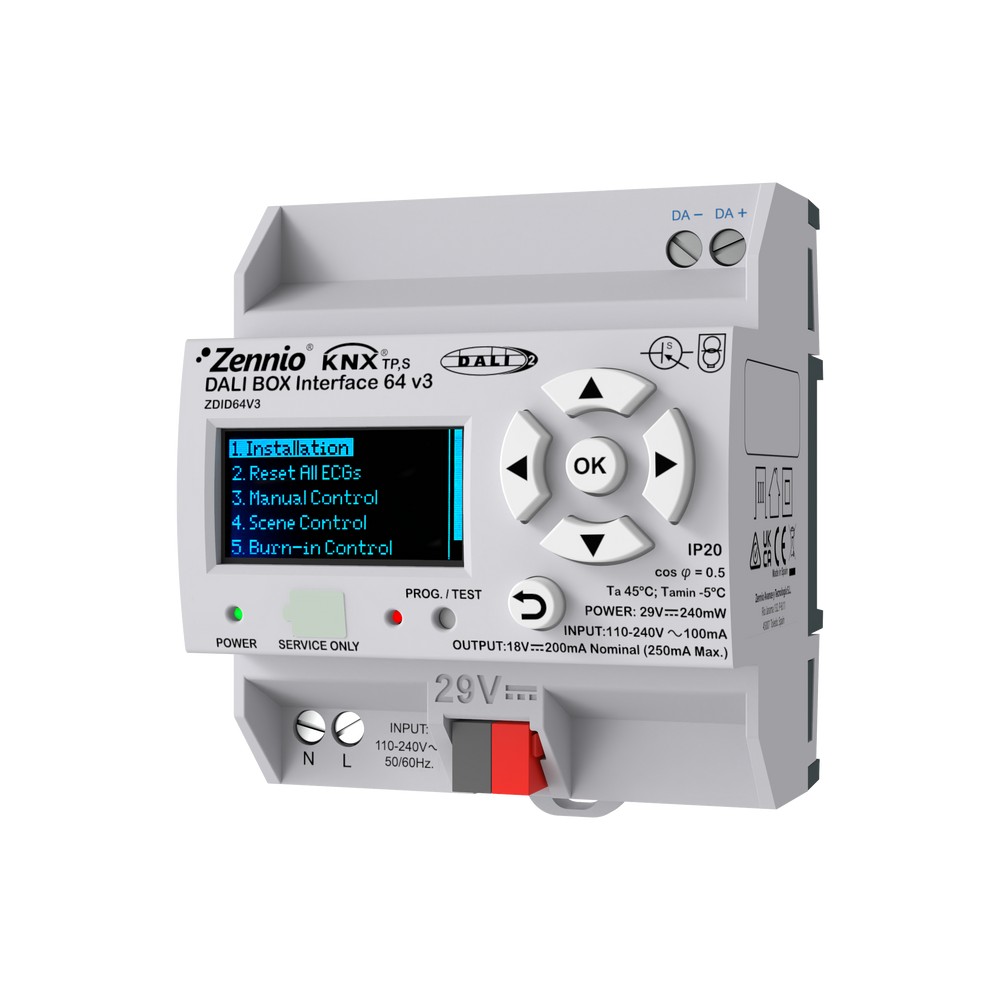

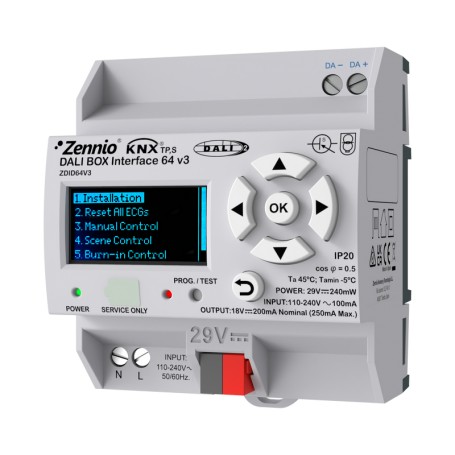

Zennio DALI BOX Interface 64 v3, ZDID64V3, KNX DALI Interface, 64 loads, display

Product Name: DALI BOX Interface 64 v3

Manufacturer: Zennio

Manufacturer-Nr.: ZDID64V3

Reference: B-003-150163

GTIN: 8435740188763

Condition: New

KNX-DALI Interface for DIN-rail (4.5 units) to control up to 64 DALI independent ballasts, which can be associated in up to 64 groups. It includes a display and ETS DCA for easily addressing when a ballast is replaced, that also helps assigning ballasts to groups. Error indicators for each ballast.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	67.00 Millimeter
Portection rating	IP20
External power supply	230VAC
Width	90.00 Millimeter
Horizontal pitch (HP)	4.5000
Voltage (typical)	29.00 Volt
Height	79.00 Millimeter
Input type	Keine
Min. ambient temperature	5.00 Celsius
Max. ambient temperature	45.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Output type	digital
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	1.0000
Power consumption (W)	0.18 Watt
Output Current	0.01 Ampere
Output Power	0.00 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	4.00 Square_millimeter
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
