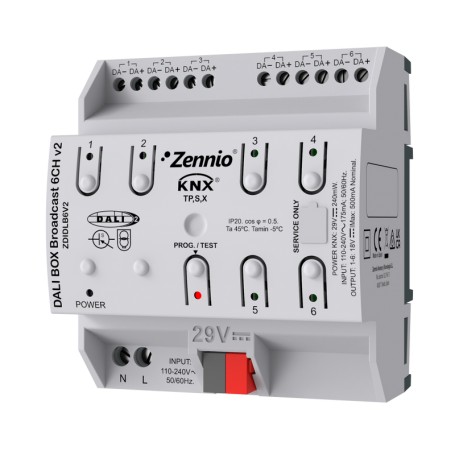

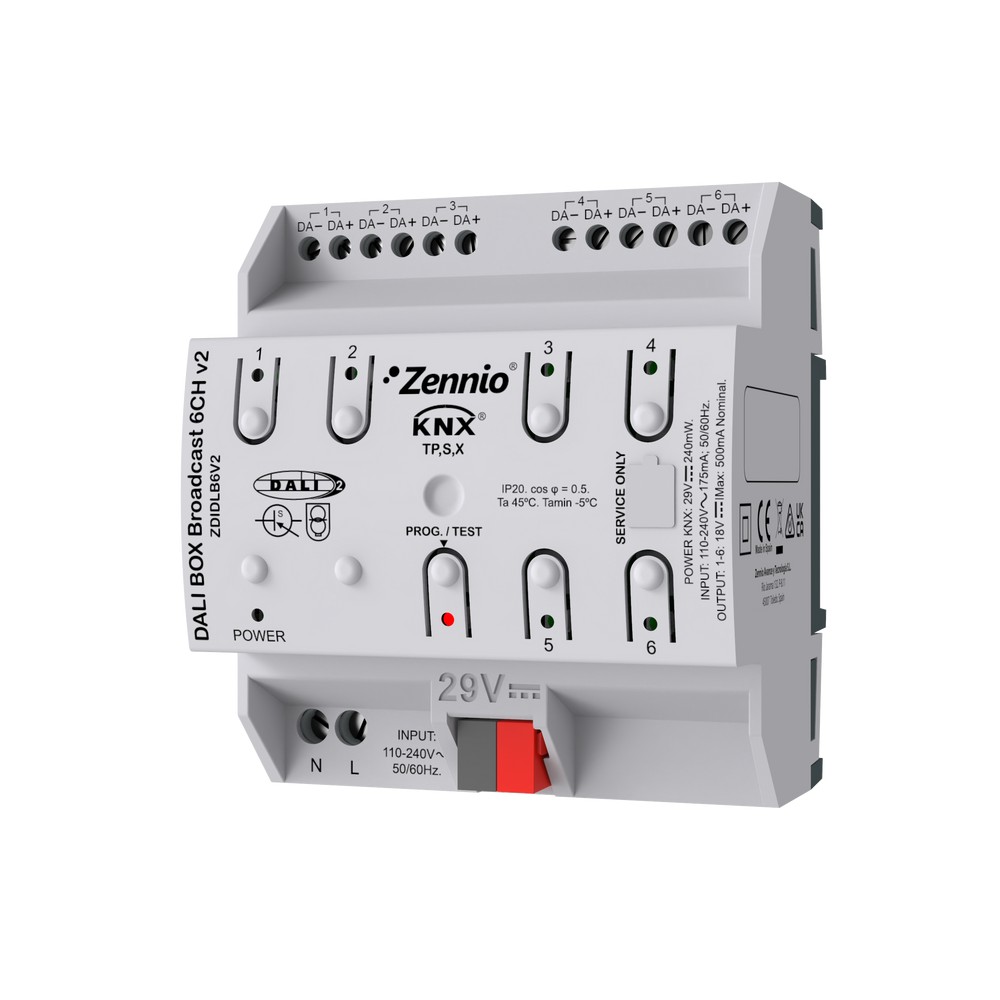

KNX-DALI Broadcast Interface for up to 6 channels with up to 64 ballasts each

Product Name: DALI BOX Broadcast 6CH v2

Manufacturer: Zennio

Manufacturer-Nr.: ZDIDLB6V2

Reference: B-003-151755

GTIN: 8435740188794

Condition: New

KNX-DALI broadcast interface module for DIN rail mounting (4.5 units). It incorporates 6 channels controlled via broadcast commands, allowing a total of 64 ballasts per channel, including color ballasts (DT8). In addition, it allows the configuration of 20 scenes/sequences per channel. It is compatible with KNX Secure. It enables manual control and has LED status indicators per channel.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	110-240VAC
Width	90.00 Millimeter
Portection rating	IP20
Height	79.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	5.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Max. ambient temperature	45.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Power consumption (W)	0.10 Watt
Output Current	0.50 Ampere
Output Power	9.00 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
