Zennio Z41 Lite, KNX Touch Panel, Touchscreen, ETS Configuration

Product Name: Z41 Lite

Manufacturer: Zennio

Manufacturer-Nr.: ZVI-Z41LIT

Reference:

GTIN: 8411080800855

Condition: New

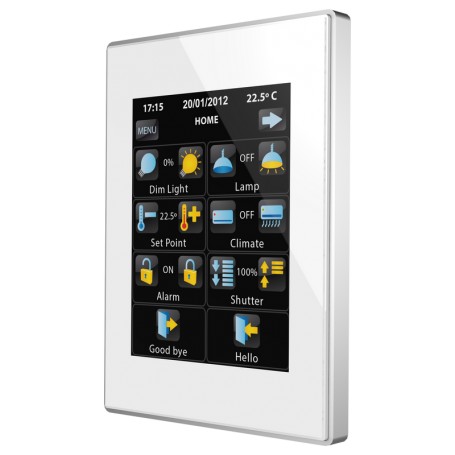

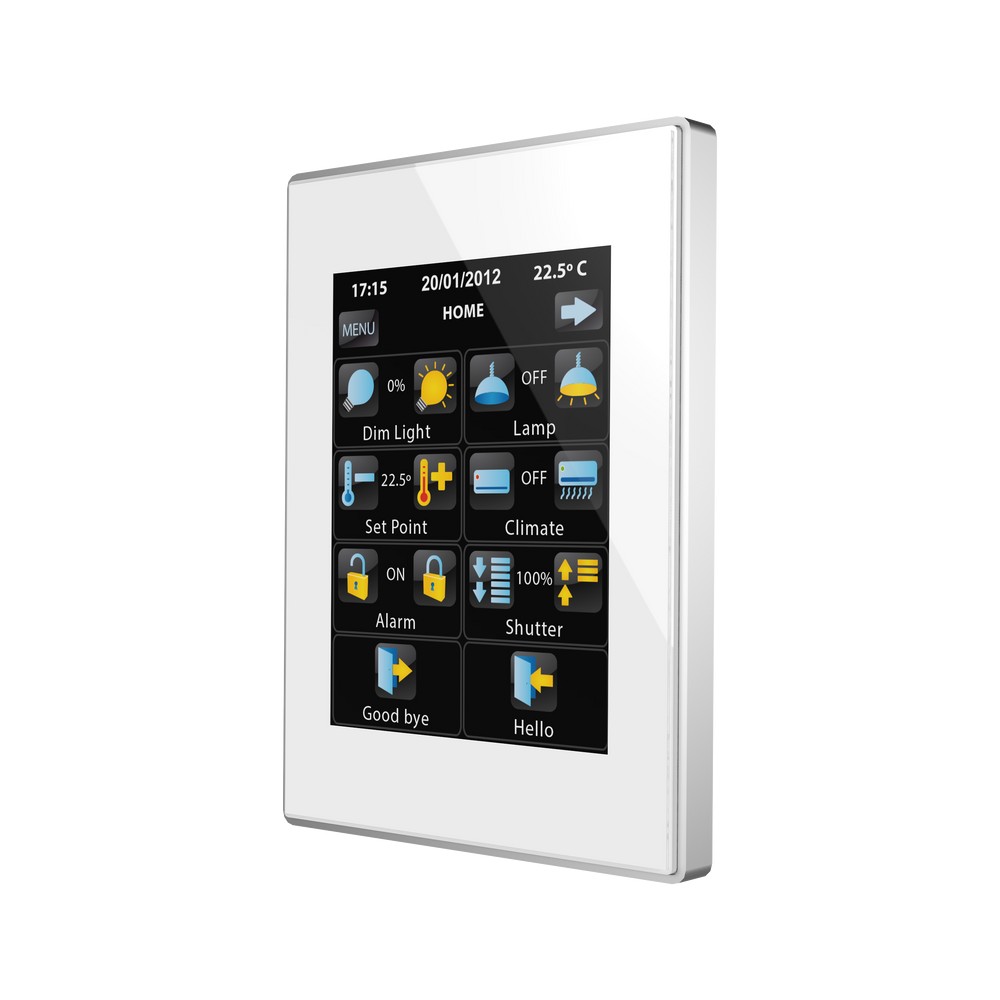

The Z41 Lite is a capacitive KNX touch panel with a display size of 4" and controls up to 96 switching functions. The KNX touch panel can be installed vertically and horizontally.

More details

Prices are only visible for registered customers. Create an account now.

Color

Frame Color

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	160.00 Millimeter
External power supply	12VDC - 30VDC (konst.)
Portection rating	IP20
Width	110.00 Millimeter
Height	50.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	5.00 Celsius
Input type	analog/digital
Touchscreen	Capacitive Glass Touch
Number of inputs	2.0000
Max. ambient temperature	45.00 Celsius
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)

More info

Downloads

Data sheet (DE)
Z41 Lite

Data sheet (EN)
Z41 Lite

Data sheet (FR)
Z41 Lite

Z41 Lite is a capacitive touch panel which represents an advance in Digital Home control. Minimalist aesthetics, dominated by simple forms, lead to a timeless design that facilitates integration within working and living environments. Its 4.1” color display (3:4) in portrait or landscape makes your management and enjoyment easier. Up to 96 controls to enable distributed communication within the intelligent home. Z41 includes an internal clock with battery and USB port for program updates. Z41 Lite includes 2 analog/digital inputs for great functionality.

Accessories: temperature probe and motion sensor.
