Zennio ZVIZ40, KNX touch panel, touch screen, ETS configuration

Product Name: Z40

Manufacturer: Zennio

Reference:

Condition: New

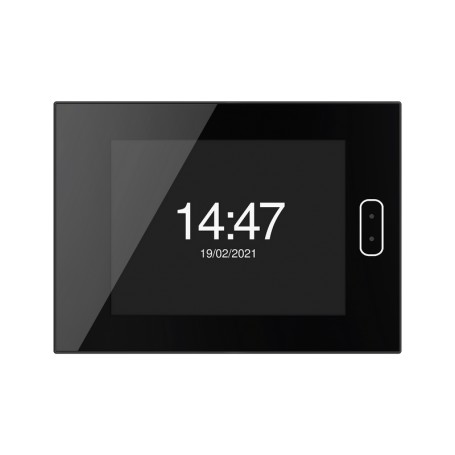

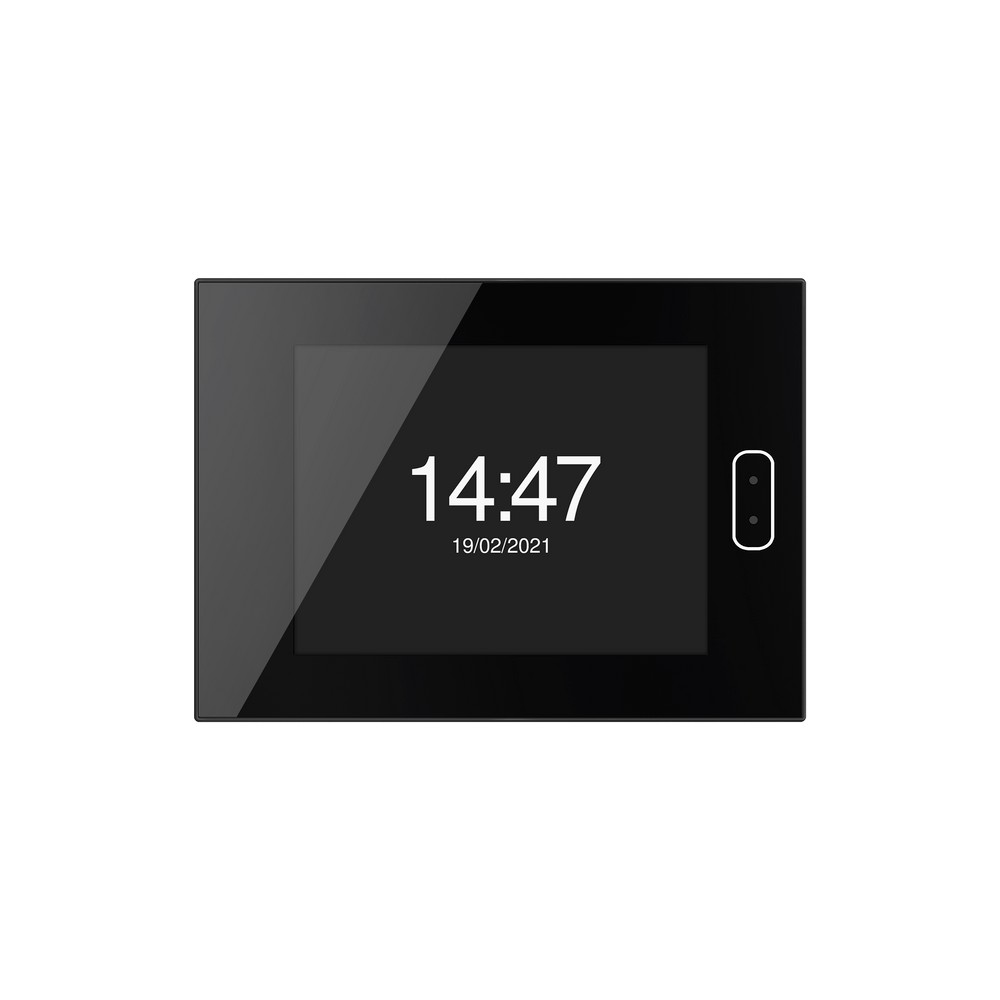

The ZVIZ40 is a capacitive KNX touch panel with a display size of 4.1" and can handle up to 56 control commands. The KNX touch panel can be installed vertically.

More details

Prices are only visible for registered customers. Create an account now.

Color

Frame Color

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	124.60 Millimeter
External power supply	Aucun requis
Portection rating	IP20
Width	90.60 Millimeter
Voltage (typical)	29.00 Volt
Height	11.50 Millimeter
Touchscreen	Capacitive Glass Touch
Min. ambient temperature	-20.00 Celsius
Input type	analog/digital
Number of inputs	4.0000
Max. ambient temperature	55.00 Celsius
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
