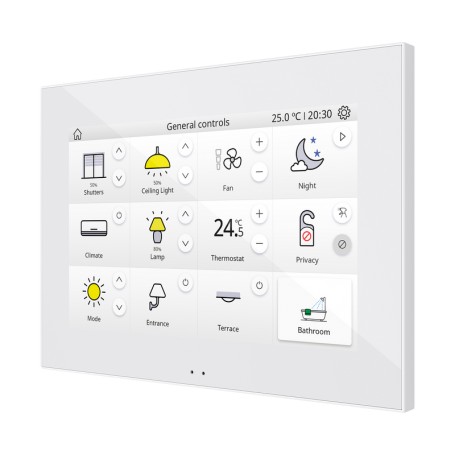

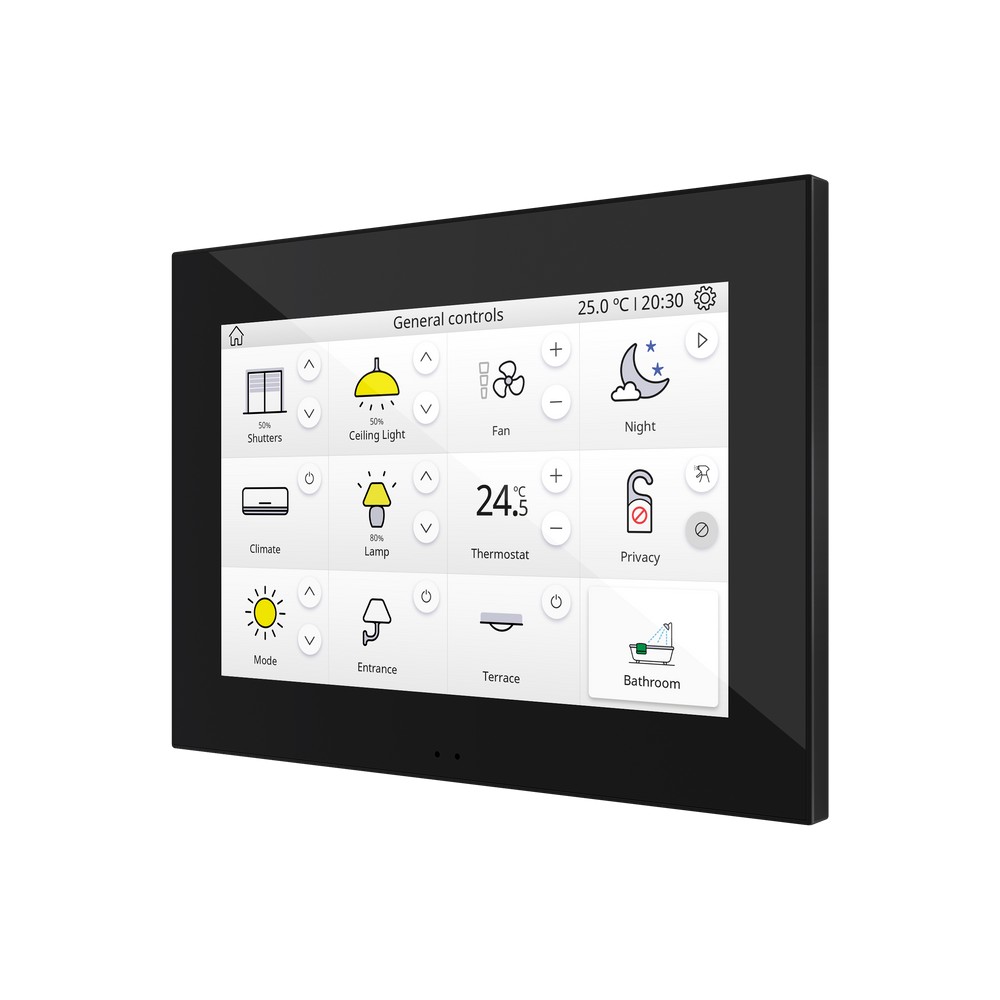

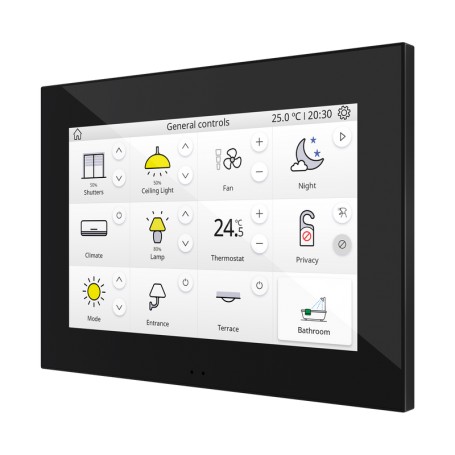

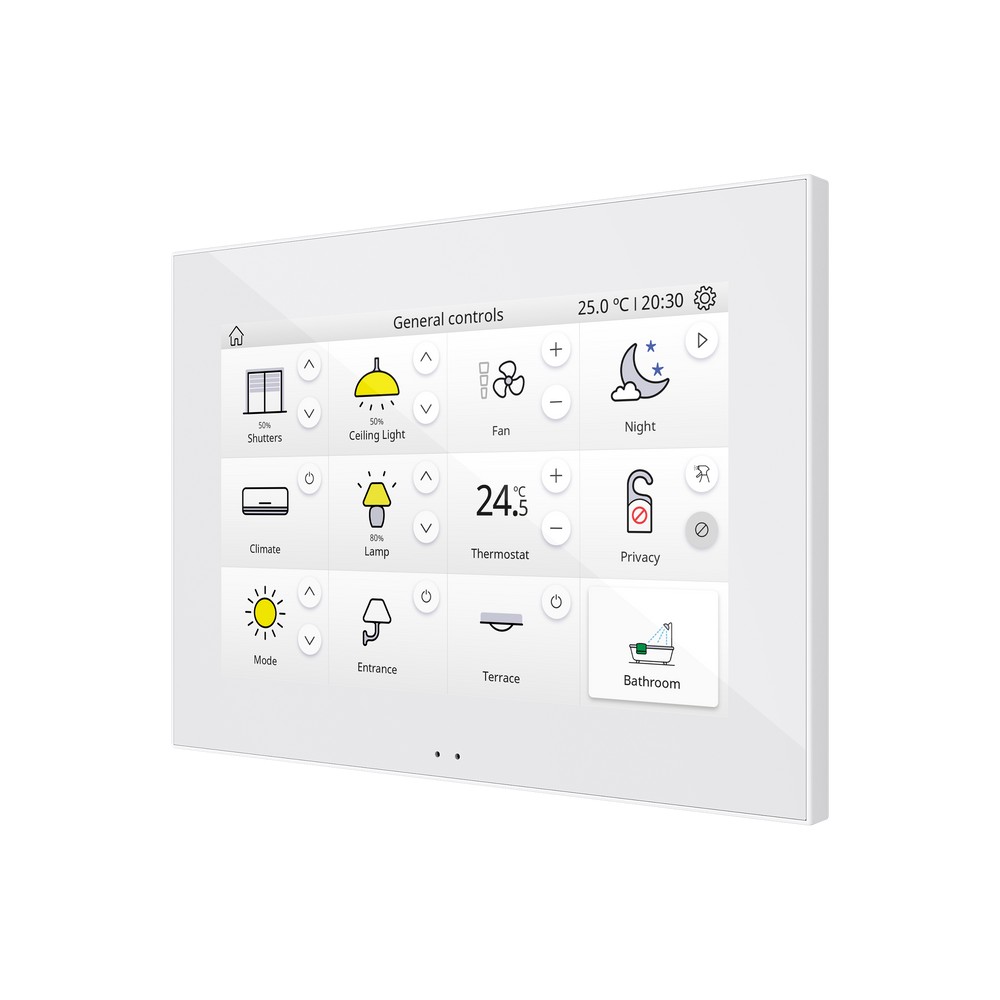

Zennio Z70 v2 7" KNX full color capacitive touch panel

Zennio Z70 v2 7" KNX full color touch panel

The Zennio Z70 v2 is a 7 inch capacitive full color touch panel for KNX installations, designed for central visualisation and control in smart homes and hotel rooms. Its slim form factor fits neatly into modern, minimalist interiors.

Key features

• 7" capacitive touch display with 1280 x 800 pixels and 16 million colours
• Proximity and luminosity sensors for automatic screen activation and brightness adjustment
• Built in loudspeakers for acoustic notifications
• Internal temperature sensor with thermostat functionality
• 4 analog digital inputs for push buttons, contacts or temperature probes
• External 24 to 29 VDC power supply
• Micro USB port for firmware update and additional functions
• Ethernet port for communication and updates
• Full data saving in case of KNX bus failure and integrated KNX BCU
• Dimensions 189 x 137 x 37 mm, only 11.8 mm protruding from the wall
• Installation on standard double flush mounting boxes using pressure clips

Licensed extensions

Several optional licences are available to extend the functionality of the Z70 v2:

• Remote Control licence for control via mobile app or web browser
• Video Intercom licence to integrate video door entry and internal calls
• ZenVoice licence for voice control, used together with the Remote Control licence

Installation and applications

The panel is installed in a standard double flush mounting box and connected to the KNX bus and an external 24 to 29 VDC power supply. It is intended for dry indoor environments and complies with CE directives. Typical applications include room control tasks in residential projects and hotels where a single interface is required for comfort and service functions.
