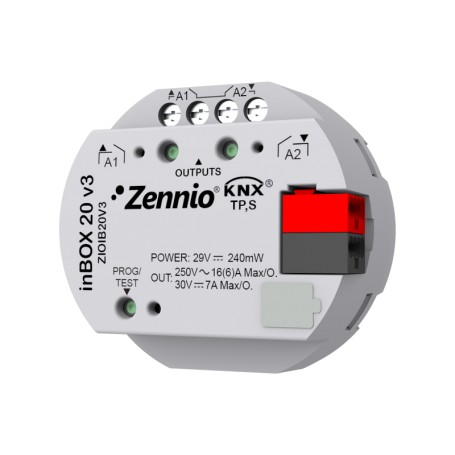

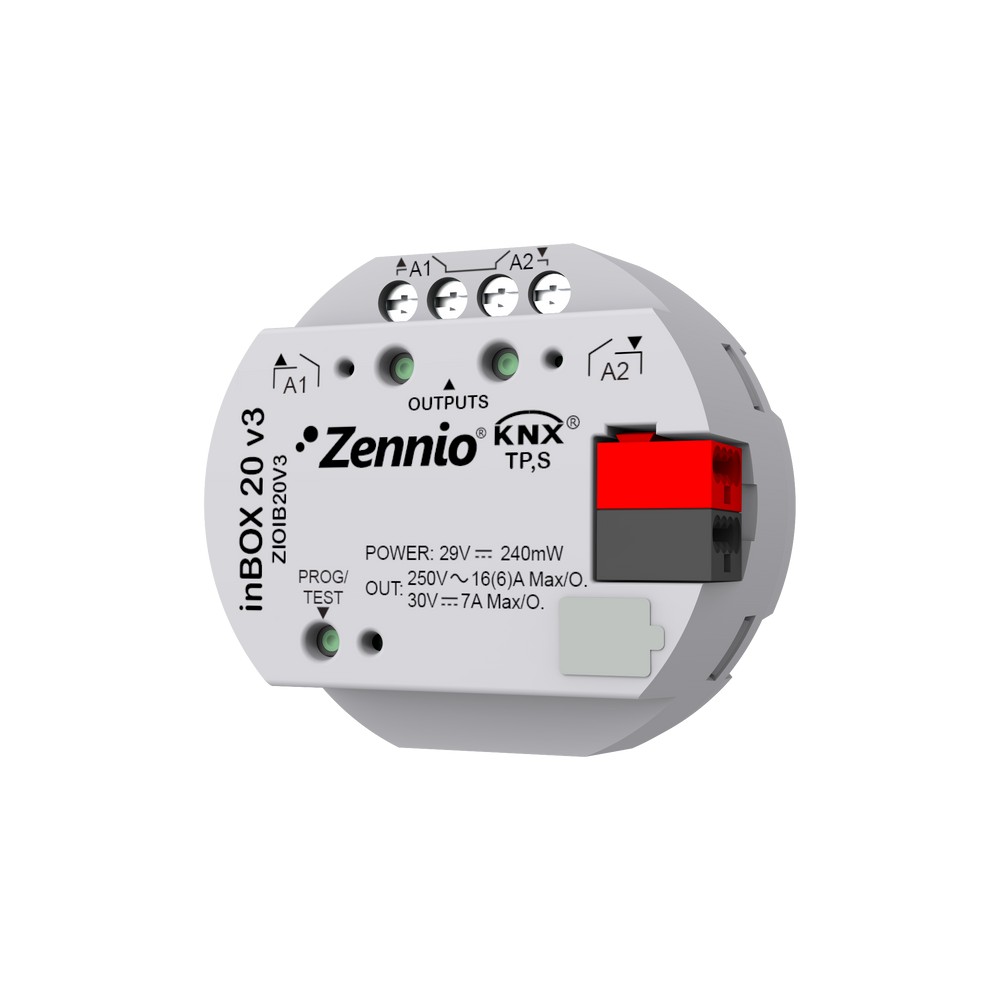

Zennio ZIOIB20V3, 2-output (16A), multifunction actuator, flush mounting

inBOX 20 v3

Zennio

ZIOIB20V3

030300ZIOIB20V3

New

Multifunction actuator for flush mounting with 2 outputs (16 A C-Load) which offer multiple configurations as shutter channel or individual outputs. It allows manual control of its outputs and includes 10 independent logical functions.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 26.60 Millimeter
Mounting options flush-mounting, Mounting in flush-mounted distribution boxes and junction boxes
Portection rating IP20
External power supply Aucun requis
Voltage (typical) 29.00 Volt
Height 0.00 Millimeter
Min. ambient temperature 0.00 Celsius
Input type Keine
Number of inputs 0.0000
Voltage Range (Min.) 21.00 Volt
Max. ambient temperature 55.00 Celsius
Voltage Range (Max.) 31.00 Volt
Output type analog
Résponse devant une récupération de perte d'alimentation KNX no details
Number of outputs 2.0000
Power consumption (W) 0.15 Watt
Output Current 16.00 Ampere
Output Power 4000.00 Watt
Actuator Type Multifunction Actuator
Operation humidity 3 to 95% RH (without condensation)
Recommended cable section 4.00 Square_millimeter
Bus system Not specified
Connection Type KNX bus terminal + screw terminal
KNX Secure No
