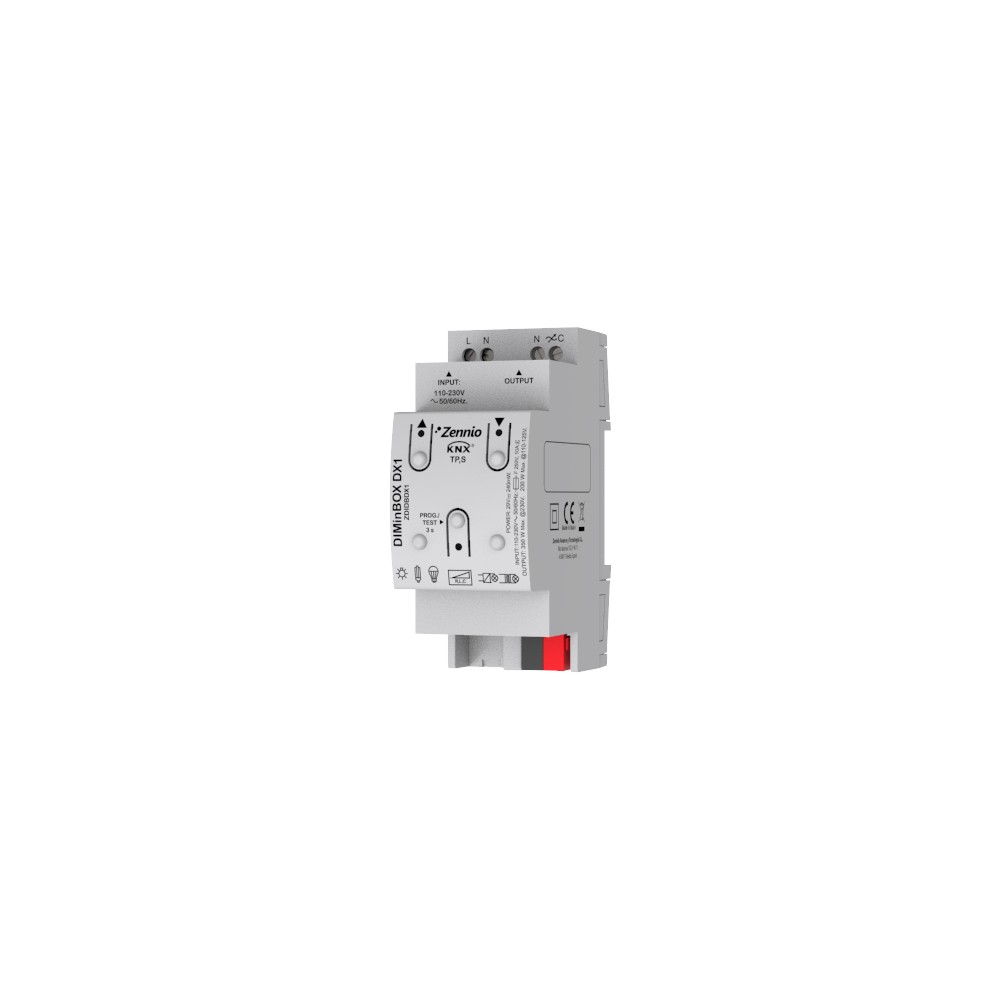

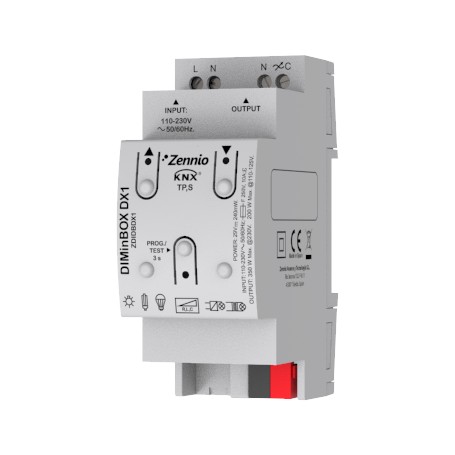

Zennio ZDIDBDX1, KNX Universal Dimmer, 1 Channel, 350W, RLC, LED, CFL

Product Name: DIMinBOX DX1

Manufacturer: Zennio

Manufacturer-Nr.: ZDIDBDX1

Reference: 030300ZDIDBDX1

GTIN: 8411080790774

Condition: New

Universal dimming actuator (RLC, LED, CFL) for DIN rail (2Te) with one channel for up to 350W@230VAC (200W@110VAC). Automatic recognition of load type (RLC). Configurable dimming curves for LED and CFL. It enables manual control of the outputs via housing keys. 10 independent logic functions integrated Error detection: - Short circuit - voltage peaks - overheating - abnormal frequency - Failure of the supply voltage - Parameterization error.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	230VAC
Width	36.00 Millimeter
Portection rating	IP20
Height	90.00 Millimeter
Voltage (typical)	24.00 Volt
Min. ambient temperature	0.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	1.0000
Max. ambient temperature	55.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Power consumption (W)	2.04 Watt
Output Current	0.01 Ampere
Output Power	0.00 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Connection Type	screwed
KNX Secure	No
