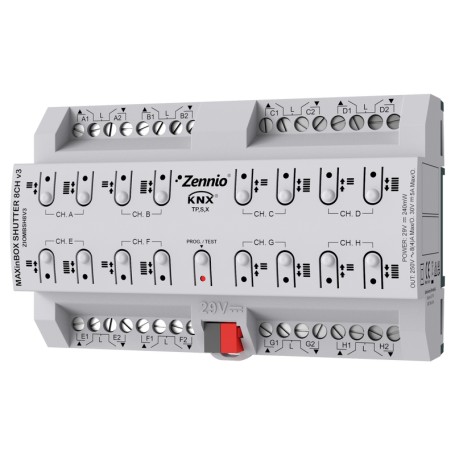

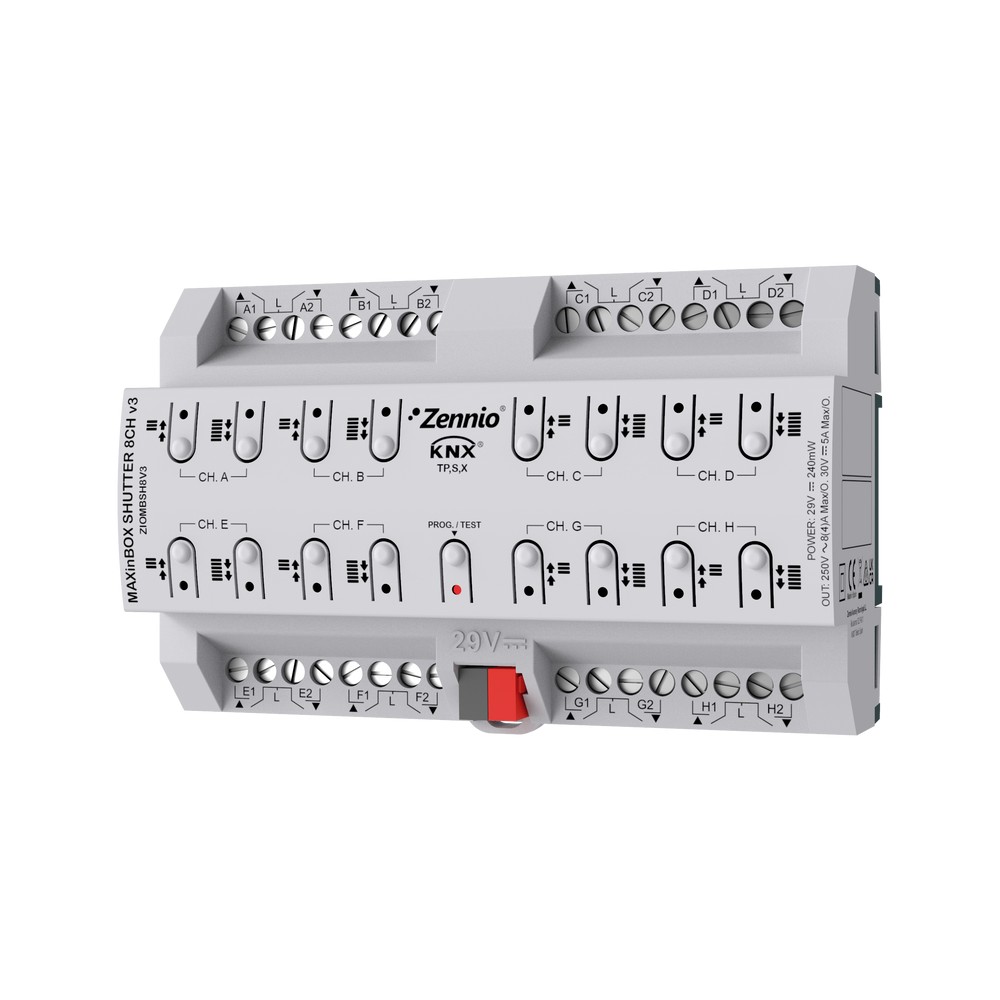

Zennio ZIOMBSH8V3, KNX blind actuator, 8gang, KNX Secure

Product Name: MAXinBOX SHUTTER 8CH v3

Manufacturer: Zennio

Manufacturer-Nr.: ZIOMBSH8V3

Reference: B-003-150326

GTIN: 8411080789204

Condition: New

Shutter actuator for DIN-rail (8 units) It includes a module with 20 logical functions and allows manual control of the outputs with status indication through LEDs. Accessories: AC/DC shutter adapters.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
Horizontal pitch (HP)	8.0000
External power supply	Aucun requis
Width	90.00 Millimeter
Portection rating	IP20
Voltage (typical)	29.00 Volt
Height	140.00 Millimeter
Min. ambient temperature	0.00 Celsius
Voltage Range (Min.)	21.00 Volt
Max. ambient temperature	55.00 Celsius
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	8.0000
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Shutter Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	0.00 Square_millimeter
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
