6522A-CH

BS GmbH 6522A-CH, CEE floor tank, indoor, IP65

Manufacturer:	Floor sockets system technology
Product no.:	B-028-149663
GTIN/EAN:	0706332903797

Available, Delivery time: 10 days

The product has been removed from the comparison list.

The product has been added to the comparison list.

There are too many products in the comparison list.

6522A-CH has been added to the cart has been removed from the cart

Cart

Produktinformationen

Description

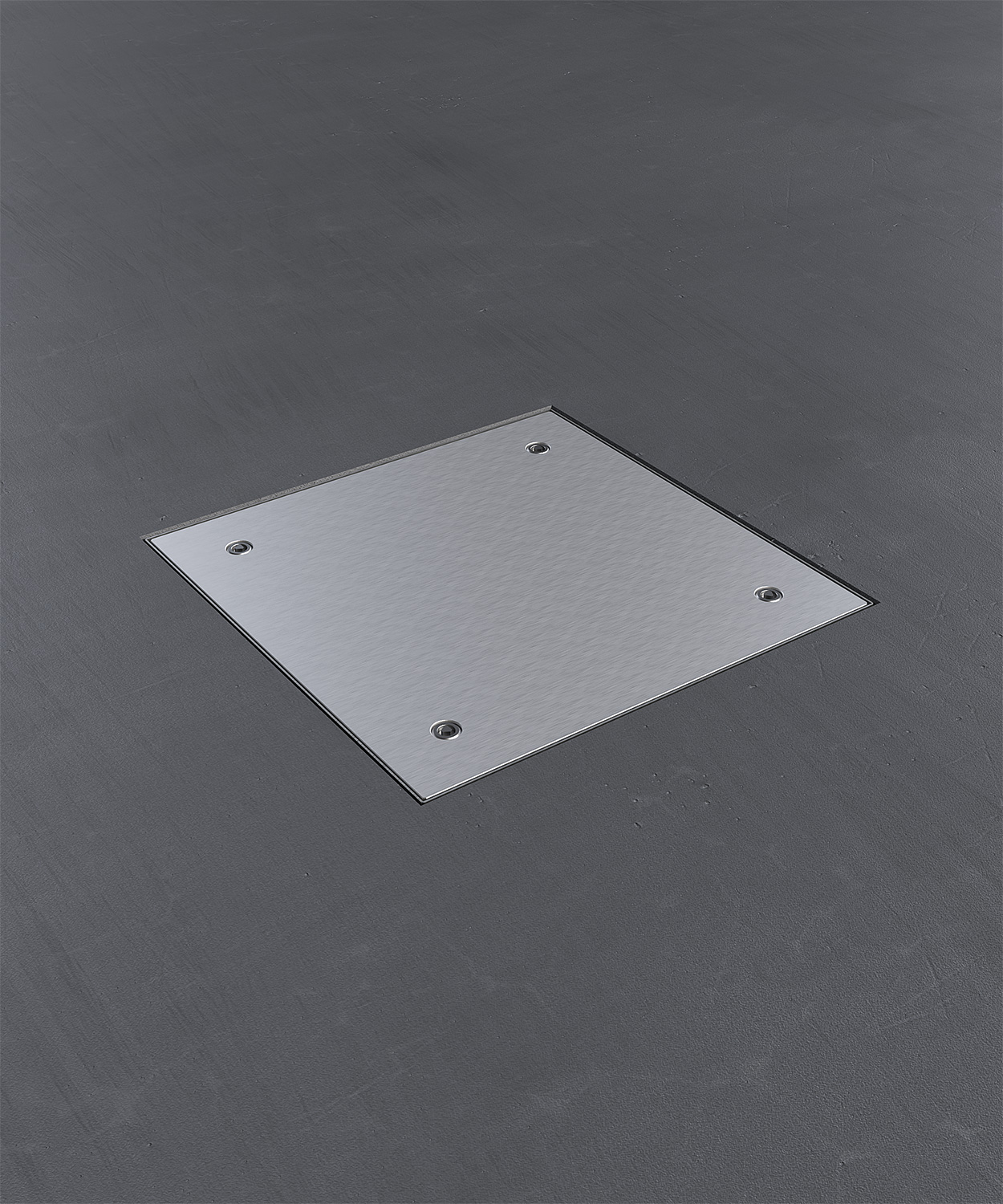

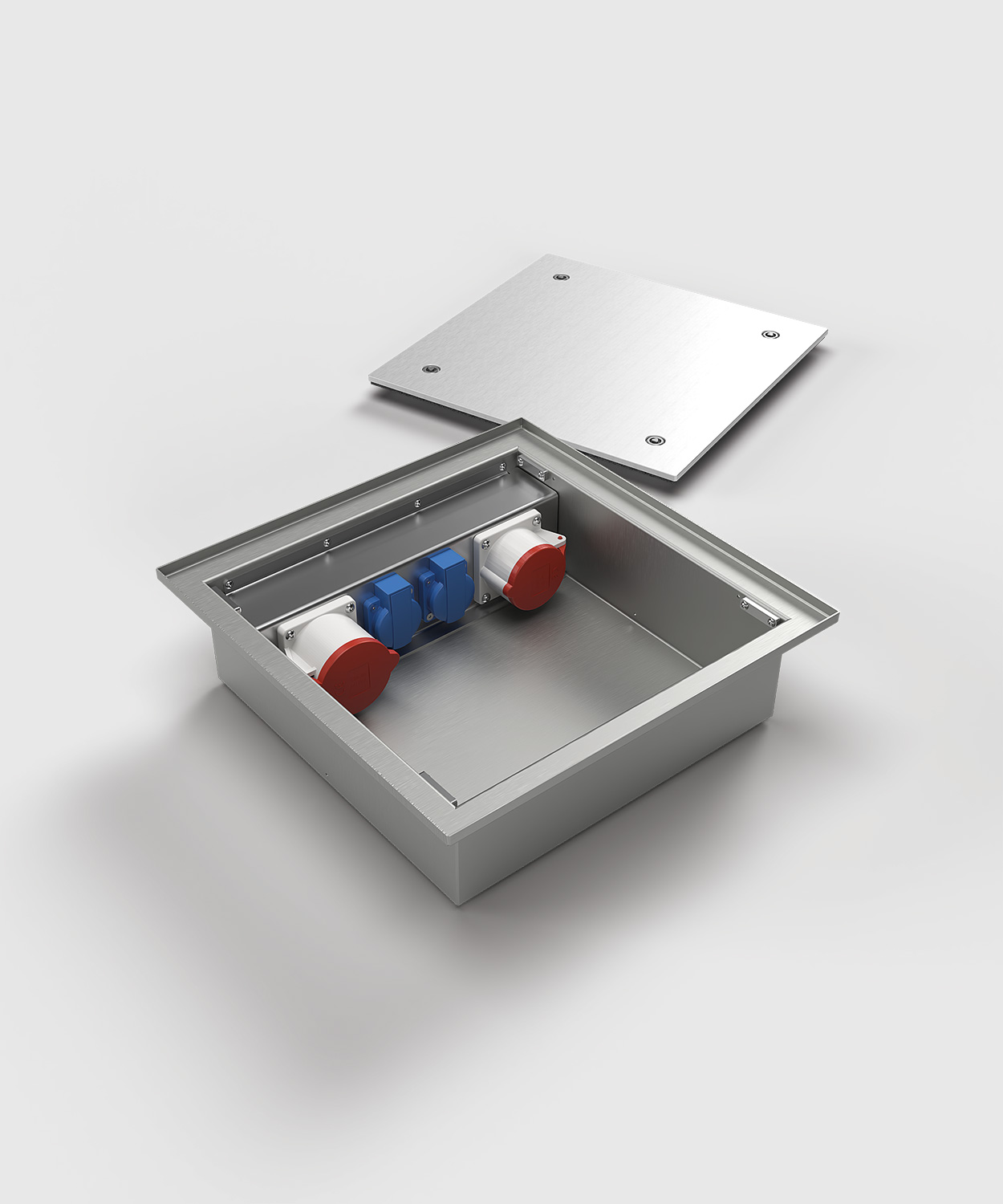

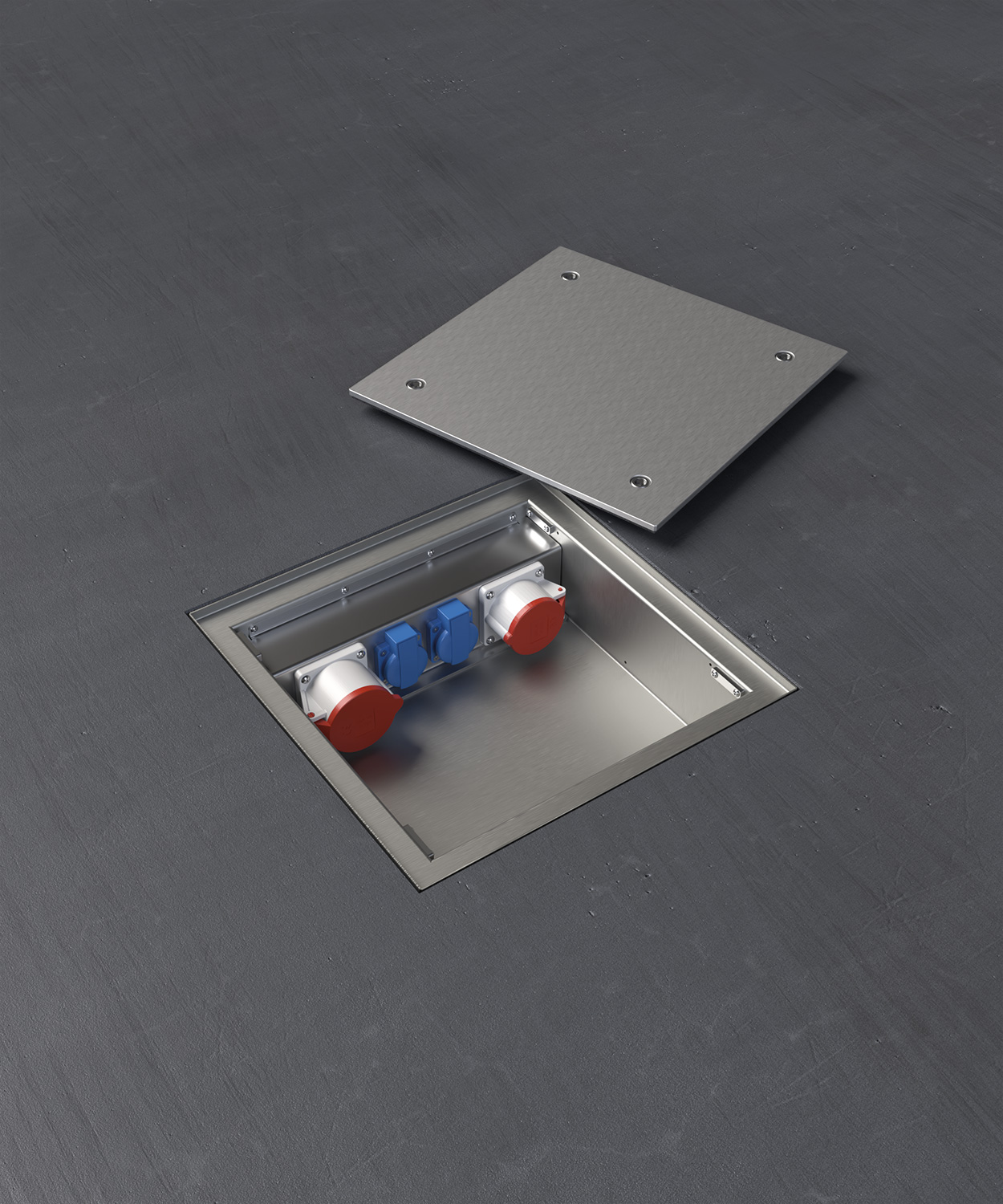

CEE floor tank 6522A with a stainless steel housing and a lockable cover made of anodised aluminium in stainless steel look. It can be installed anywhere in the floor, as conduits are used for the cable feed. The cover is watertight. Protection class IP 65. Further equipment variants on request.

Show more Show less

Variants Properties

Technical data

Width:	400 mm
Height:	117 mm
Length:	400 mm
Weight:	8.4 kg
Application:	Indoor
Color:	Gray
Country of Origin:	Germany
Height:	117 mm
Height adjustable:	No
Material:	Aluminium, Stainless steel
Models:	2 x Type 13, 1 x CEE 5, 16A, 400V, 1 x CEE 5, 32A, 400V
Mounting options:	flush-mounting
Number of connections:	4
Portection rating:	IP65
Shape:	square
Socket type:	CEE Floor Tank
Type of installation:	Subfloor
Weight capacity:	Car passable
