7022A-CH

BS GmbH 7022A-CH, CEE floor tank, outdoor, car accessible, IP67

Manufacturer:	Floor sockets system technology
Product no.:	B-028-149672
GTIN/EAN:	0706332903841

Available, Delivery time: 10 days

The product has been removed from the comparison list.

The product has been added to the comparison list.

There are too many products in the comparison list.

7022A-CH has been added to the cart has been removed from the cart

Cart

Produktinformationen

Description

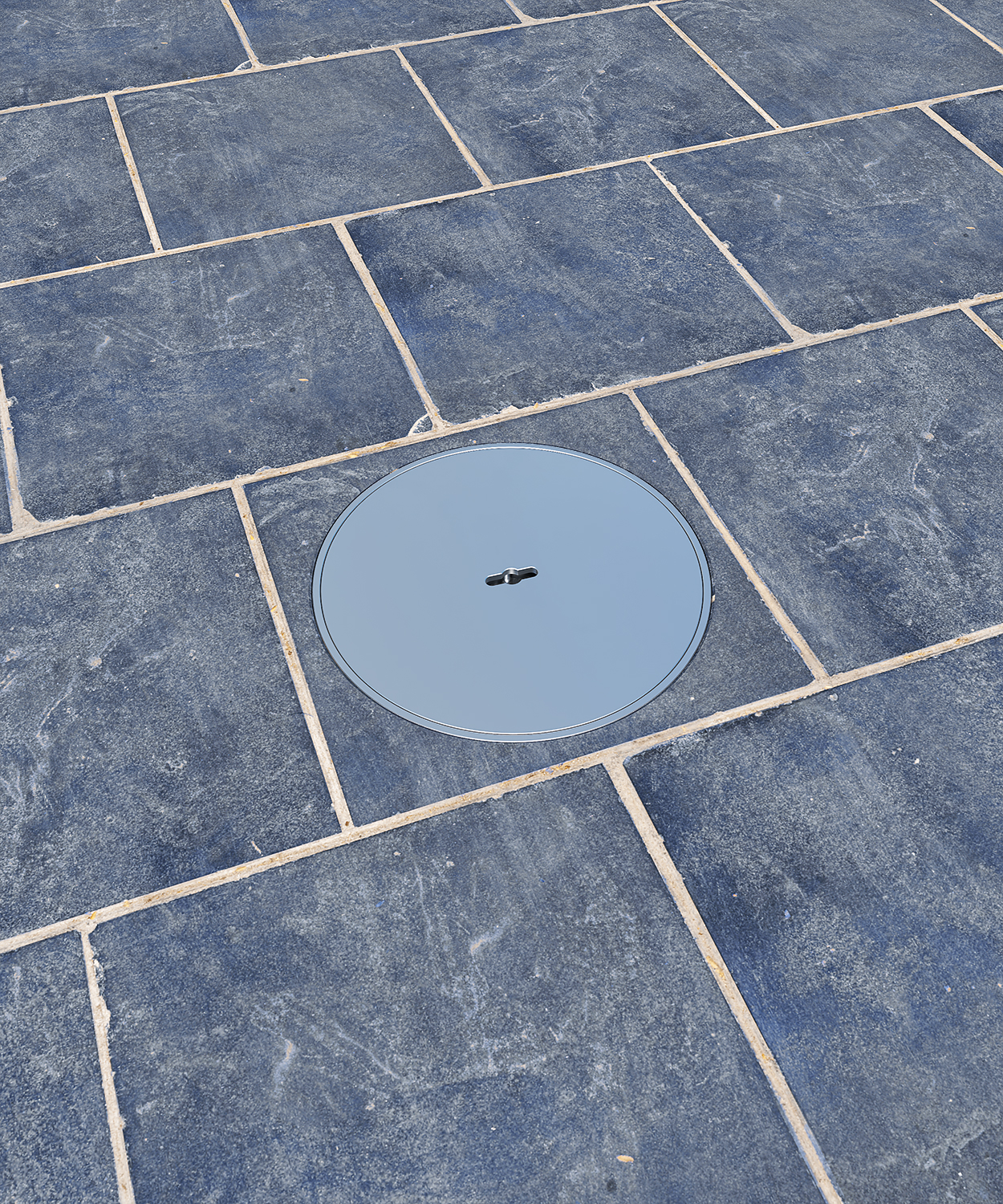

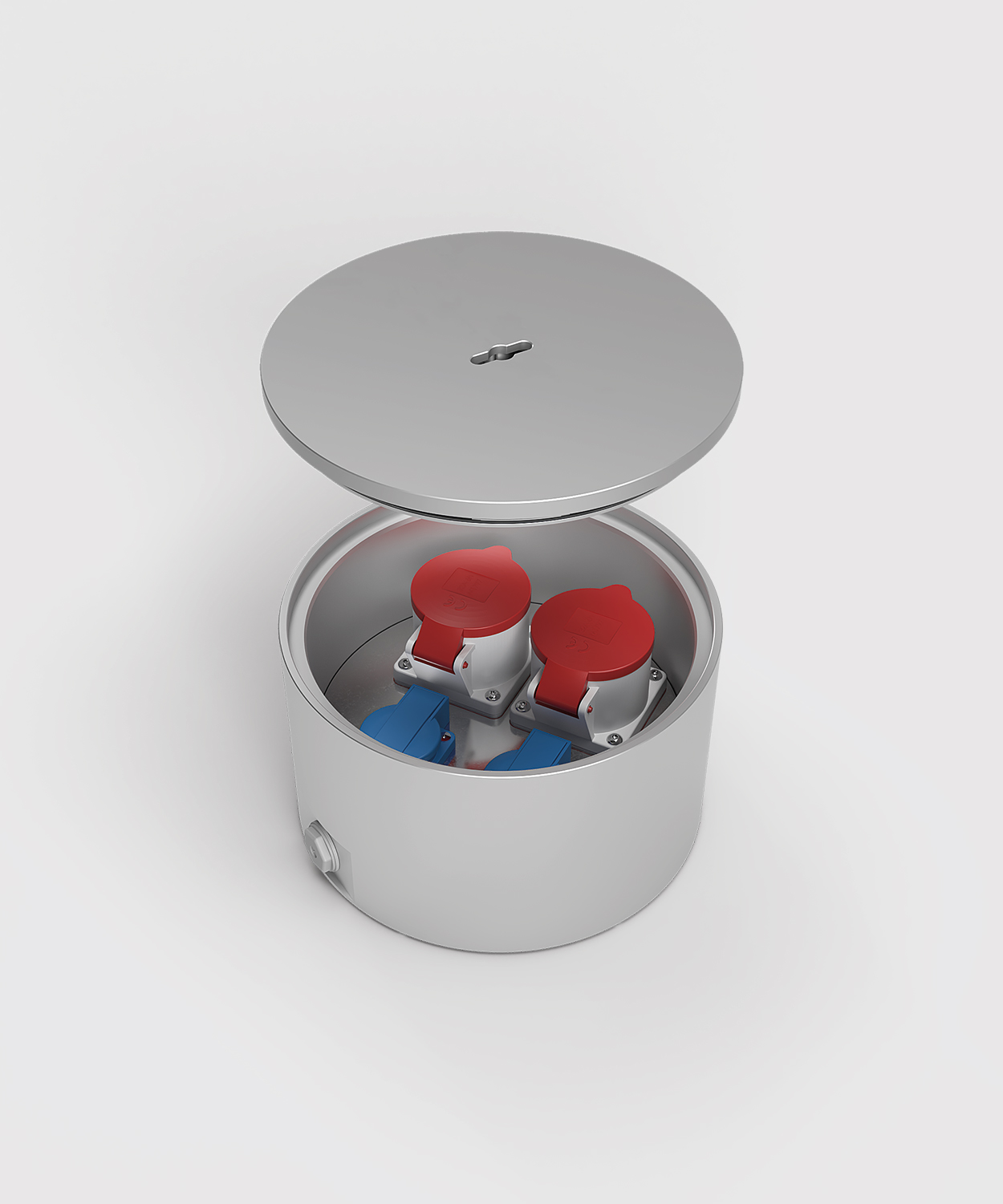

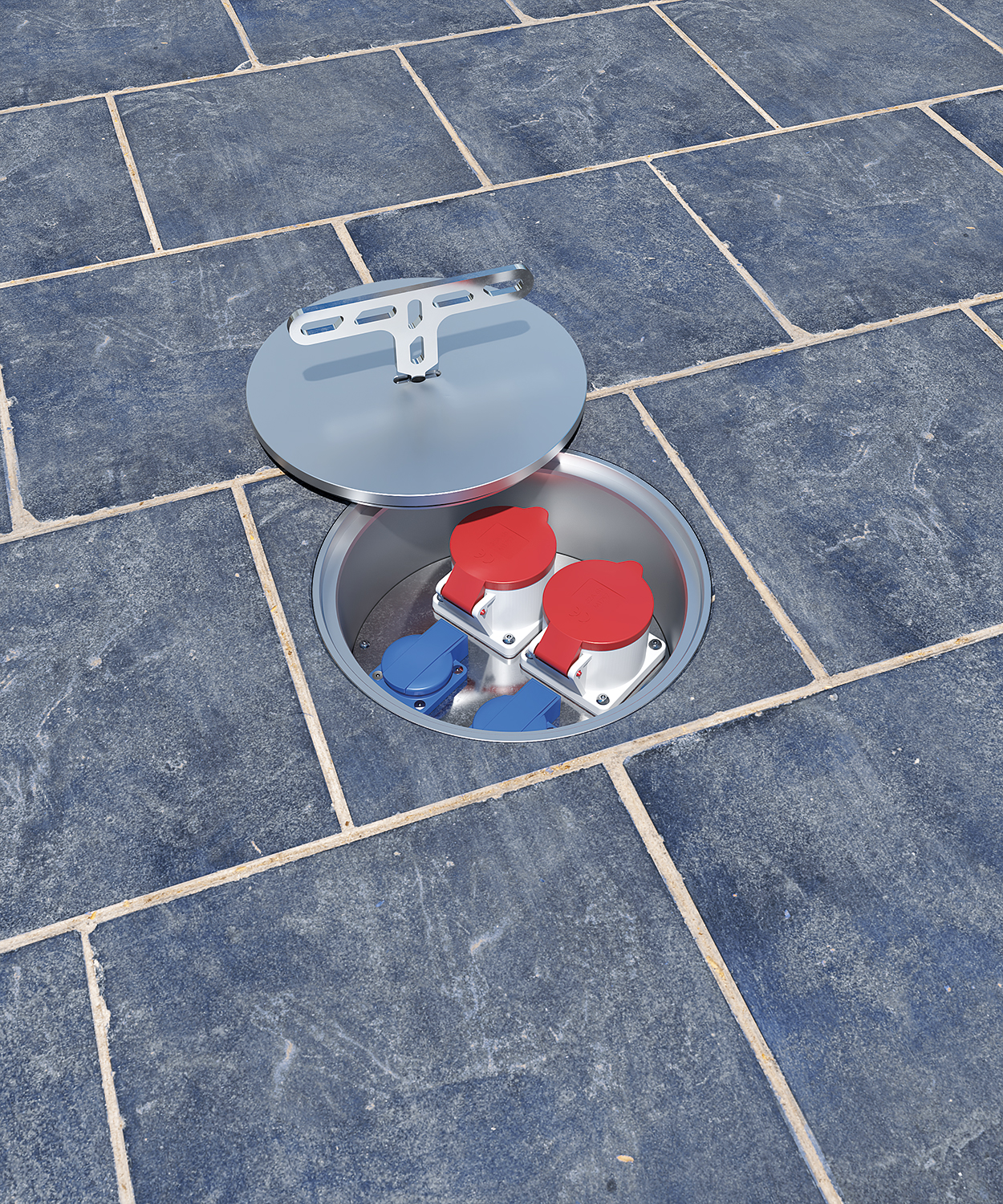

Round CEE floor tank 7022A with lockable lid made of saltwater-resistant aluminium. The CEE floor tank is installed flush with the ground and can be driven over with a car due to its solid construction. Watertight when closed. Protection class IP 67. Standard surface in natural anodised aluminium. Other equipment variants and colours on request.

Show more Show less

Variants Properties

Technical data

Height:	152 mm
Weight:	6.4 kg
Application:	Indoor, Outdoor
Color:	Gray
Country of Origin:	Germany
Diameter:	250 mm
Height:	152 mm
Height adjustable:	No
Material:	Aluminium
Models:	1 x CEE 5, 16A, 400V, 1 x CEE 5, 32A, 400V, 2 x Type 13
Mounting options:	flush-mounting
Number of connections:	4
Portection rating:	IP67
Shape:	round
Socket type:	CEE Floor Tank
Type of installation:	Subfloor
Weight capacity:	Car passable
