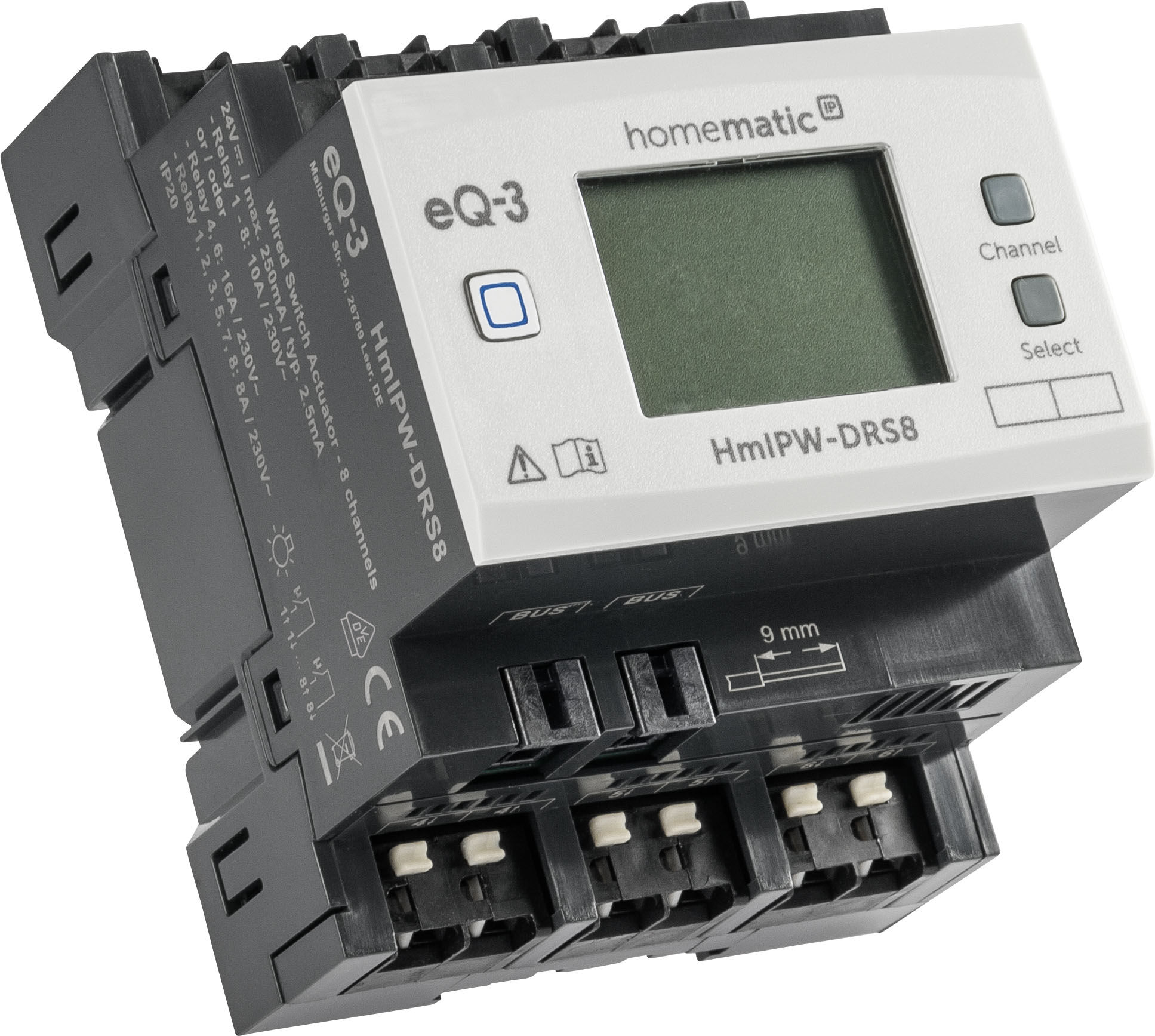

HmIPW-DRS8

Homematic IP Wired switch actuator - 8-channels #151677A0

The Homematic IP Wired switch actuator - 8-channel is part of the Homematic IP smart home system and switches connected loads via eight potential-free, independent channels.

The maximum switching capacity is up to 3680 W, which varies depending on the channel assignment. Two channels can be loaded with up to 16 amps resistive load, while the remaining six channels can switch a maximum of 8 amps resistive load with this assignment. Alternatively, all eight channels can be assigned a maximum of 10 amps resistive load per channel. Please note that the maximum switching capacity also depends on the type of load used. The maximum permissible switching capacity can be found in the product data sheet.

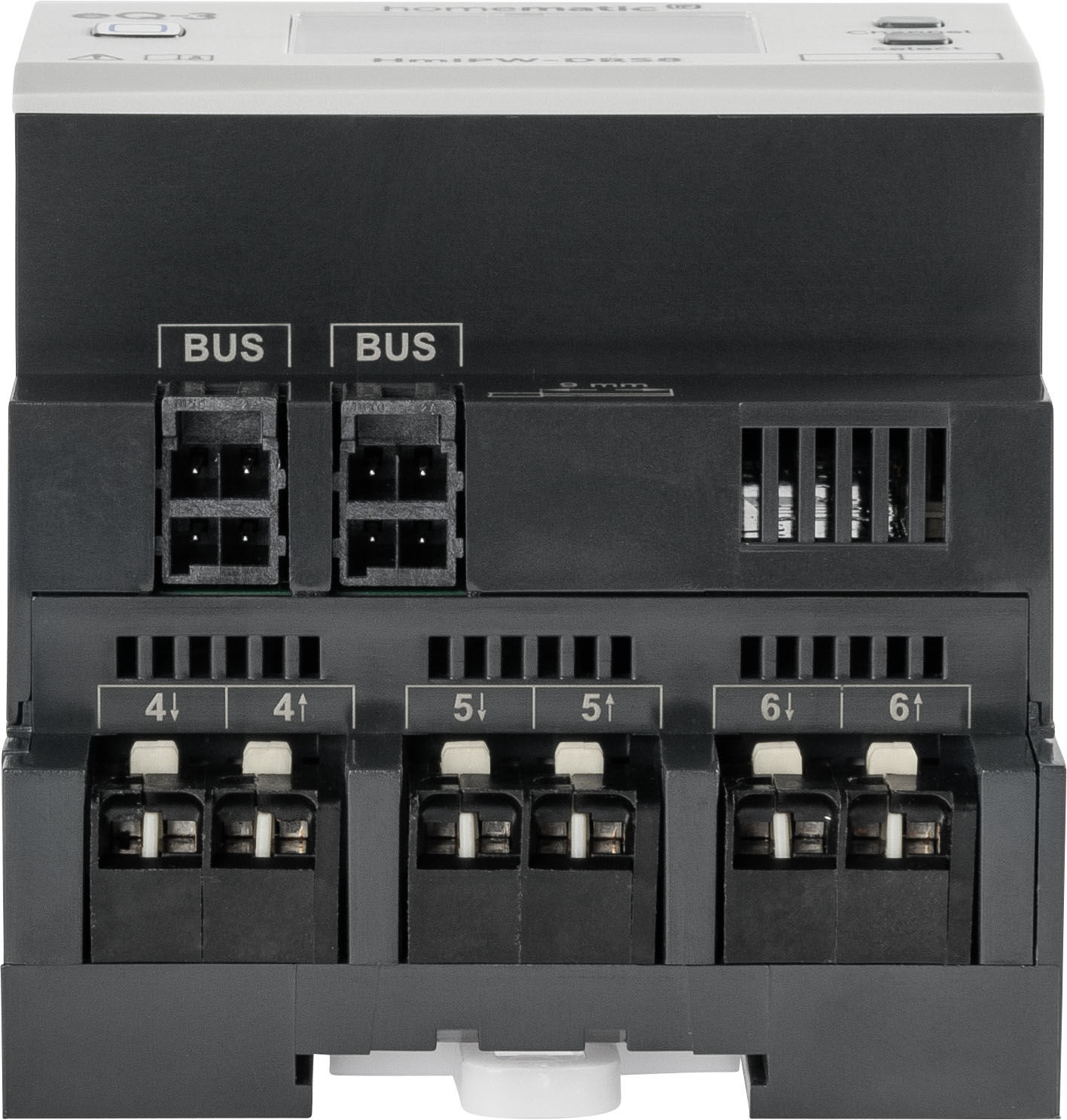

The bus cables are connected without screws using easy-to-operate spring-cage terminals and prefabricated bus cables with MOLEX Ultra-Fit connectors. The standby energy consumption of the Homematic IP Wired Switch Actuator is a particularly low 60 milliwatts.

A Homematic IP Wired Access Point is required to operate the switch actuator. When using a Homematic IP Wired input module, the connected lamps can be operated using conventional, wired push-buttons. Combination with Homematic IP wireless push-buttons or remote controls is possible via the CCU3 smart home control centre and, in future, alternatively via the cloud solution with the Homematic IP Access Point (free app control).

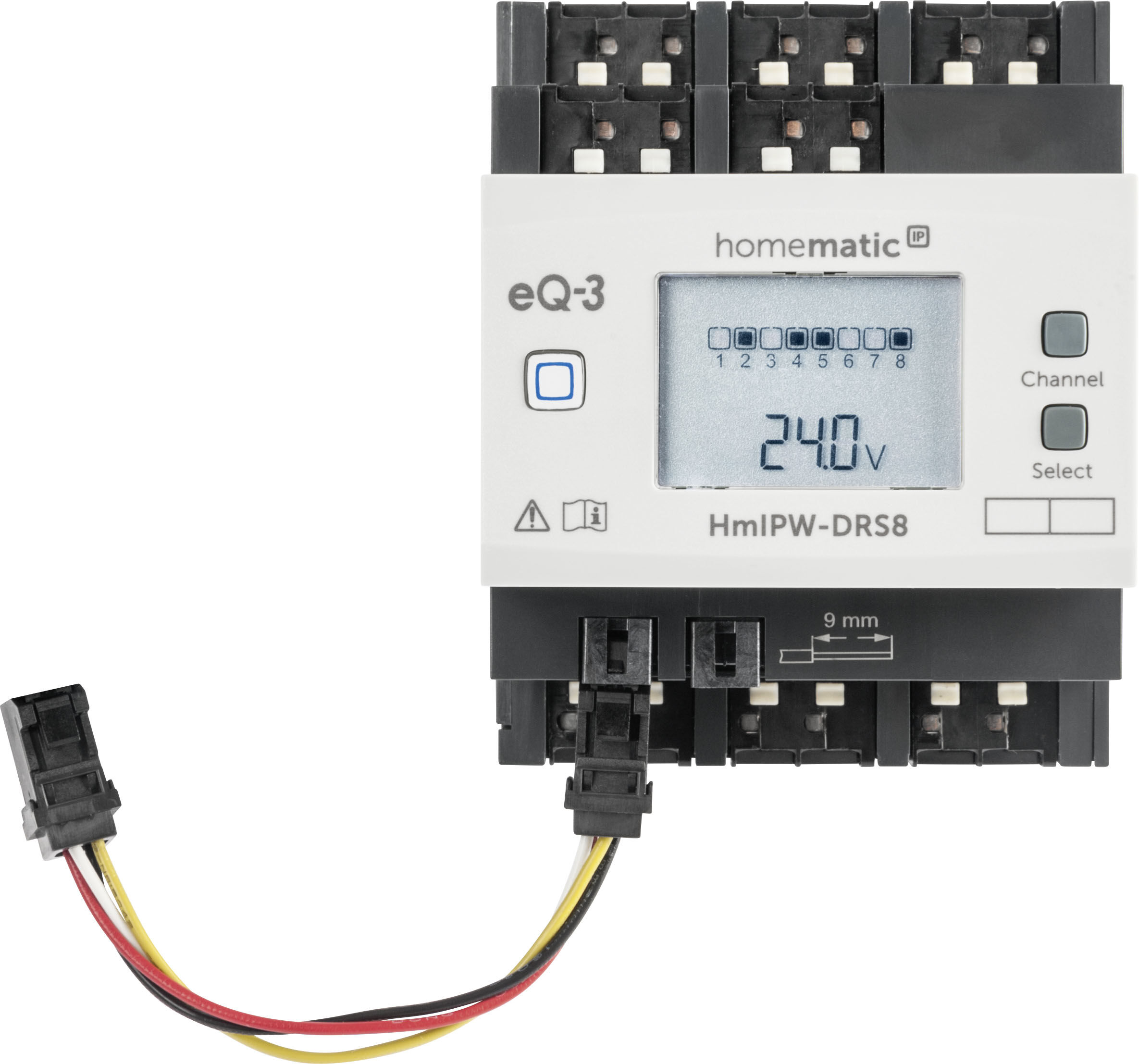

On the building site, for example, commissioning and operation can also be carried out directly on the device without an internet connection. For this purpose, the Homematic IP Wired Switch Actuator offers a large, illuminated display and buttons embedded directly in the housing.

Further product information can be found at www.homematic-ip.com. A detailed user manual for the Homematic IP system can be found in the download area.

Product features

1. switches connected loads (e.g. lamps or electric radiators) on or off via eight potential-free, independent channels.

2. convenient commissioning and operation without an Internet connection directly on the top-hat rail device thanks to the large, illuminated LC display.

3. the integration of additional system components enables flexible control of connected light sources via conventional, wired push-buttons (HmIPW-DRI16 or DRI32) or via Homematic IP wireless push-buttons and remote controls.

4. particularly simple, time-saving and screwless installation thanks to spring-cage terminals and MOLEX Ultra-Fit connectors for the bus connection.

5. a Homematic IP Wired Access Point is required for operation. The wired system can be controlled via the CCU3 central control unit, via the Homematic IP Access Point and via many partner solutions.
